Toro 22225 - Toro 30" TurfMaster HDX Walk-Behind Mower (SN: 400000000 - 407529999) Traction and Height-of-Cut Assembly Parts Lookup with Diagrams

1

Toro 137-9172-03

HOC PLATE ASSEMBLY

$35.99

$

Usually ships in 3-6 days

2

Toro 137-9173-03

HOC PLATE ASSEMBLY

$35.99

$

Usually ships in 3-6 days

3

Toro 701243

SCREW-THD ROLL, HWH

$2.99

$

In Stock, Qty 20+

4

Toro 137-9183

BEARING RETAINER ASM

$53.99

$

In Stock, Qty 6

5

Toro 137-4779

BEARING-BALL, CUSTOM

$14.99

$

In Stock, only 4 left!

6

Toro 136-9111

GEAR-PINION, 15T

$5.49

$

In Stock, only 1 left!

7

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

8

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

9

Toro 136-7095

COVER-WHEEL

$12.99

$

In Stock, only 2 left!

10

Toro 133-8104-03

BRACKET-TRANSMISSION, FRONT

$17.99

$

Usually ships in 3-6 days

11

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

12

Toro 121-2368

SPRING-TORSION

$28.99

$

In Stock, only 1 left!

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

14

Toro 125-2540

WASHER-PLAIN

$2.99

$

In Stock, only 1 left!

15

Toro 137-9174

10.5 IN. WHEEL ASM

$108.99

$

In Stock, only 4 left!

17

Toro 121-2397

BRACKET

$14.99

$

Usually ships in 3-6 days

18

Toro 139-8967

REAR AXLE ASM

$116.99

$

In Stock, only 2 left!

19

Toro 116-7127

DECAL-HOC, REAR

$6.99

$

In Stock, only 1 left!

20

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 13

21

Toro 119-2267

SCREW-SHOULDER, BHTF

$5.49

$

In Stock, only 2 left!

22

Toro 120-9471

BOLT-SHOULDER

$5.49

$

In Stock, only 2 left!

23

Toro 139-1737

LOCK-HEIGHT, ADJ

$26.99

$

Usually ships in 3-6 days

24

Toro 138-5393

SPRING-EXTENSION

$5.49

$

In Stock, only 1 left!

25

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

26

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

27

Toro 137-9185

COVER-BEARING

$1.49

$

In Stock, Qty 9

28

Toro 133-2670

TRANSMISSION-MV702

$526.99

$

In Stock, only 1 left!

28:1

Toro 139-1837

PULLEY FAN REPAIR KIT

$45.99

$

In Stock, only 2 left!

28:2

Toro 139-1842

IDLER PULLEY REPAIR KIT

$94.99

$

In Stock, Qty 6

28:2:3

Toro 139-1845

SPRING-TENSION, BELT

$5.49

$

In Stock, Qty 20+

28:3

Toro 139-8974

CLUTCH LEVER REPAIR KIT

$26.99

$

Usually ships in 3-6 days

29

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

30

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 7

31

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

32

Toro 138-5394-03

BRACKET-MOUNT, BRAKE

$17.99

$

Usually ships in 3-6 days

33

Toro 138-5398

CALIPER-BRAKE, DISC

$70.99

$

In Stock, only 1 left!

33:1

Toro 139-8999

PAD-BRAKE, DISC

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

34

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

35

Toro 139-8990

HUB-ROTOR

$6.49

$

In Stock, Qty 11

36

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

37

Toro 138-5396

DISC-ROTOR

$15.99

$

Usually ships in 3-6 days

38

Toro 139-8960

SCREW-TORX PH THD ROLL

$1.49

$

Usually ships in 3-6 days

39

Toro 609471

SCREW

$4.99

$

In Stock, Qty 14

40

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

41

Toro 140-1262-01

BRACKET-SUPPORT, CABLE

$13.99

$

Usually ships in 3-6 days

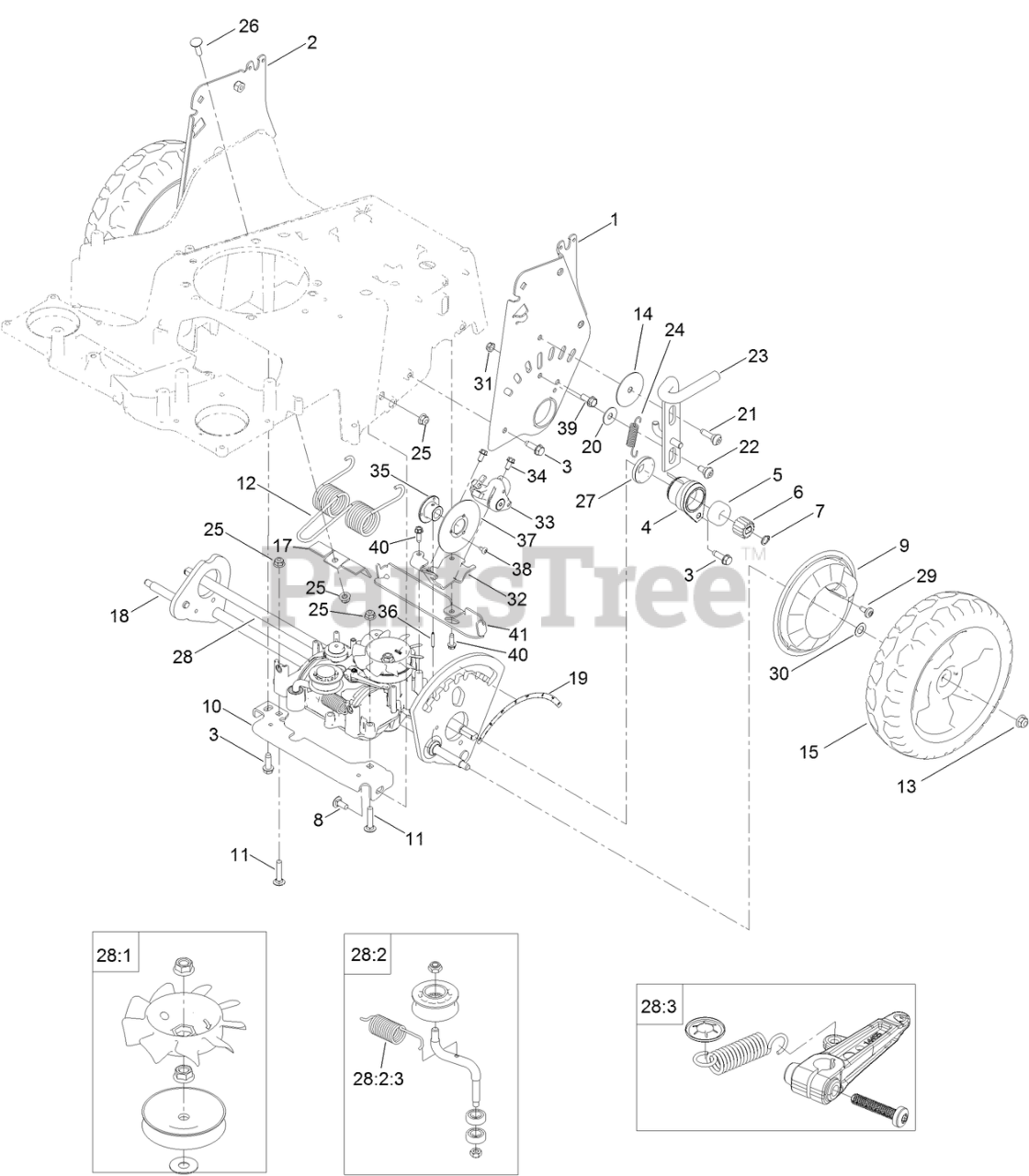

22225 - Toro 30" TurfMaster HDX Walk-Behind Mower (SN: 400000000 - 407529999) Traction and Height-of-Cut Assembly Parts Diagram

Traction and Height-of-Cut Assembly Parts Diagram
