22219 G (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Drivetrain Electrical Connection Assembly Parts Diagram

e-Dingo Compact Utility Loader

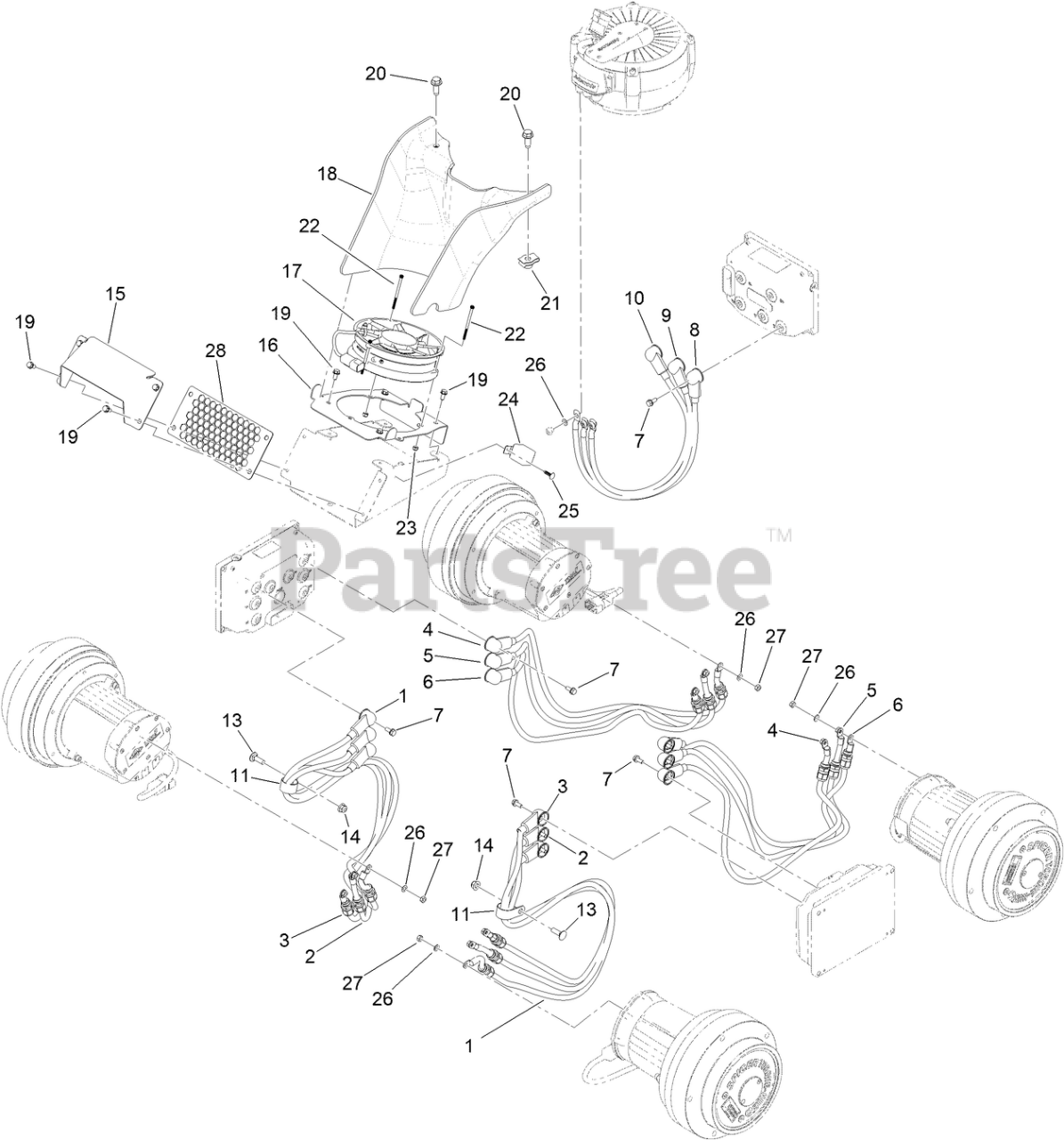

Drivetrain Electrical Connection Assembly Parts Diagram

  • Title
1

Toro 122-2345

CABLE-BATTERY, RD ASM

$59.99

$

Usually ships in 0 days

0

2

Toro 122-2346

CABLE-BATTERY, RD ASM

$59.99

$

Usually ships in 0 days

0

3

Toro 122-2347

CABLE-BATTERY, RD ASM

$59.99

$

Usually ships in 0 days

0

4

Toro 122-2390

CABLE-BATTERY, RD ASM

$55.99

$

Usually ships in 0 days

0

5

Toro 122-2391

CABLE-BATTERY, RD ASM

$64.99

$

Usually ships in 0 days

0

6

Toro 122-2392

CABLE-BATTERY, RD ASM

$55.99

$

Usually ships in 0 days

0

7

Toro 145-5782

SCREW-SEMS

$1.49

$

Usually ships in 3-6 days

0

8

Toro 122-2343

CABLE-BATTERY, RD ASM

$48.99

$

Usually ships in 0 days

0

9

Toro 122-2348

CABLE-BATTERY, RD ASM

$48.99

$

Usually ships in 0 days

0

10

Toro 122-2389

CABLE-BATTERY, RD ASM

$32.99

$

Usually ships in 0 days

0

11

Toro 2412-126

R-CLAMP

$3.49

$

Usually ships in 3-6 days

0

13

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 145-4752-03

DEFLECTOR-FAN

$

$

Currently unavailable

16

Toro 145-4753-03

PLATE-ADAPTER,FAN

$

$

Currently unavailable

17

Toro 145-4747

FAN-48V, 6.8"

$673.99

$

Usually ships in 0 days

0

18

Toro 145-4754

SHROUD-FAN

$113.99

$

Usually ships in 0 days

0

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 139-2428

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

22

Toro 145-4759

SCREW-HSH

$4.49

$

Usually ships in 0 days

0

23

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

24

Toro 122-2401

RELAY, 48V COIL, 50A AT 48V

$

$

Not available

25

Toro 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

26

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

27

Toro HDW21408

NUT-HEX

$

$

Currently unavailable

28

Toro 145-4786-03

SCREEN - FAN GUARD

$

$

Currently unavailable
