22219 (500) - Toro e-Dingo Compact Utility Loader (SN: 415200000 - 416599999) Counterweights, Skid Plates and Foot Pad Assembly Parts Diagram

e-Dingo Compact Utility Loader

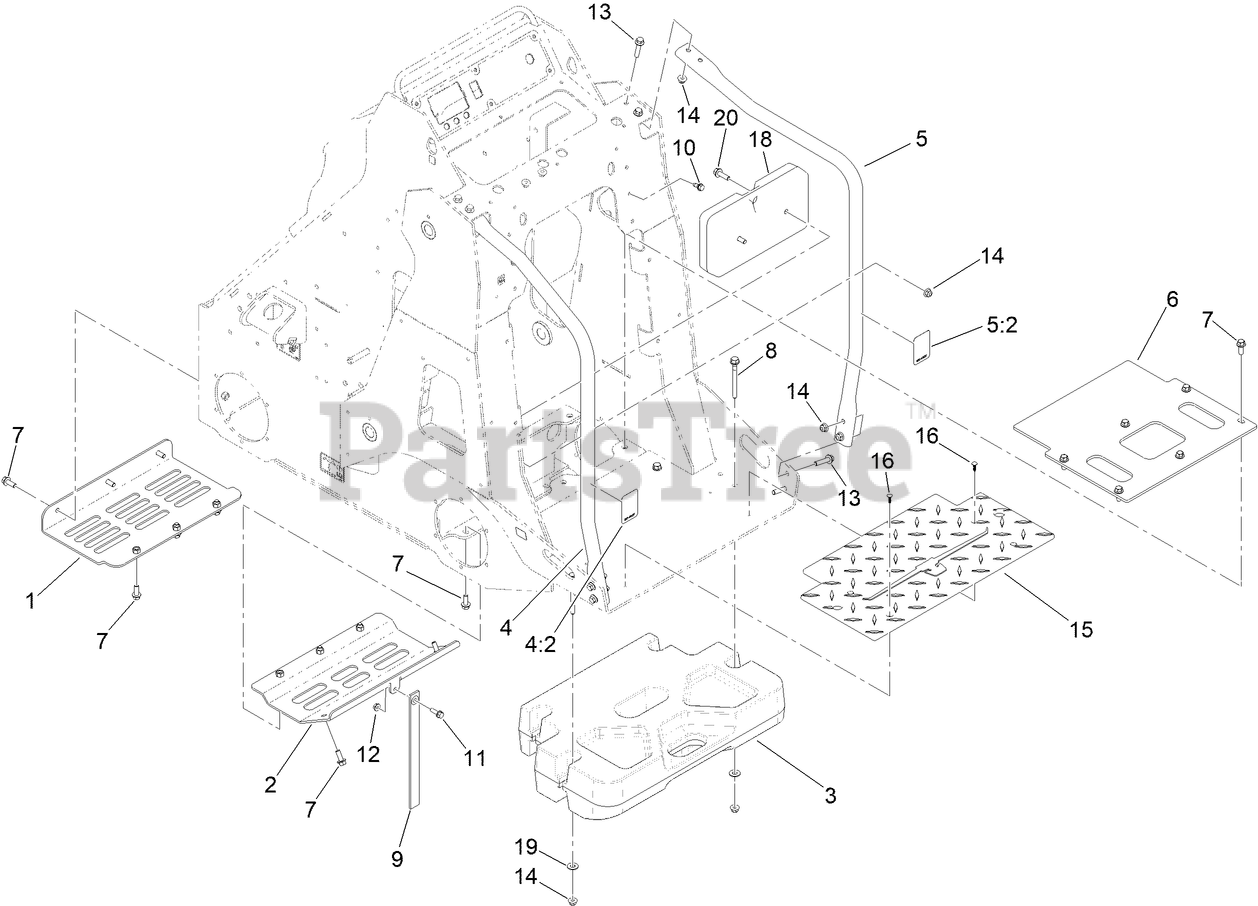

Counterweights, Skid Plates and Foot Pad Assembly Parts Diagram

  • Title

1

Toro 140-7260-01

SKID PLATE ASM, FRONT

$

$

Currently unavailable

2

Toro 140-7261-01

SKID PLATE ASM, REAR

$

$

Currently unavailable

3

Toro 145-2398-03

COUNTERWEIGHT

$

$

Currently unavailable

4

Toro 145-4797

TUBE-HANDLE,LH

$

$

Currently unavailable

4:2

Toro 100-4627

REFLECTOR

$24.99

$

Usually ships in 3-6 days

0

5

Toro 145-4798

TUBE-HANDLE,RH

$

$

Currently unavailable

5:2

Toro 100-4627

REFLECTOR

$24.99

$

Usually ships in 3-6 days

0

6

Toro 145-2350-01

PLATE-COVER,MOTOR

$

$

Currently unavailable

7

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

8

Toro 140-5522

SCREW-HHF 5/8, PATCH

$

$

Currently unavailable

9

Toro 139-7731

STRAP, STATIC

$25.99

$

Usually ships in 3-6 days

0

10

Toro 126-4424

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

11

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

12

Toro 32128-26

NUT-FLANGE

$6.49

$

Usually ships in 3-6 days

0

13

Toro 3234-19

SCREW-HHF

$3.49

$

In Stock, Qty 11

0

14

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 145-4784

PAD - FOOT

$79.99

$

Usually ships in 0 days

0

16

Toro 125-8067

PLUG-PLASTIC

$0.99

$

Usually ships in 3-6 days

0

18

Toro 145-4719-0P

COUNTERWEIGHT

$

$

Currently unavailable

19

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0
