22218 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Loader and Quick Attach Assembly Parts Diagram

e-Dingo Compact Utility Loader

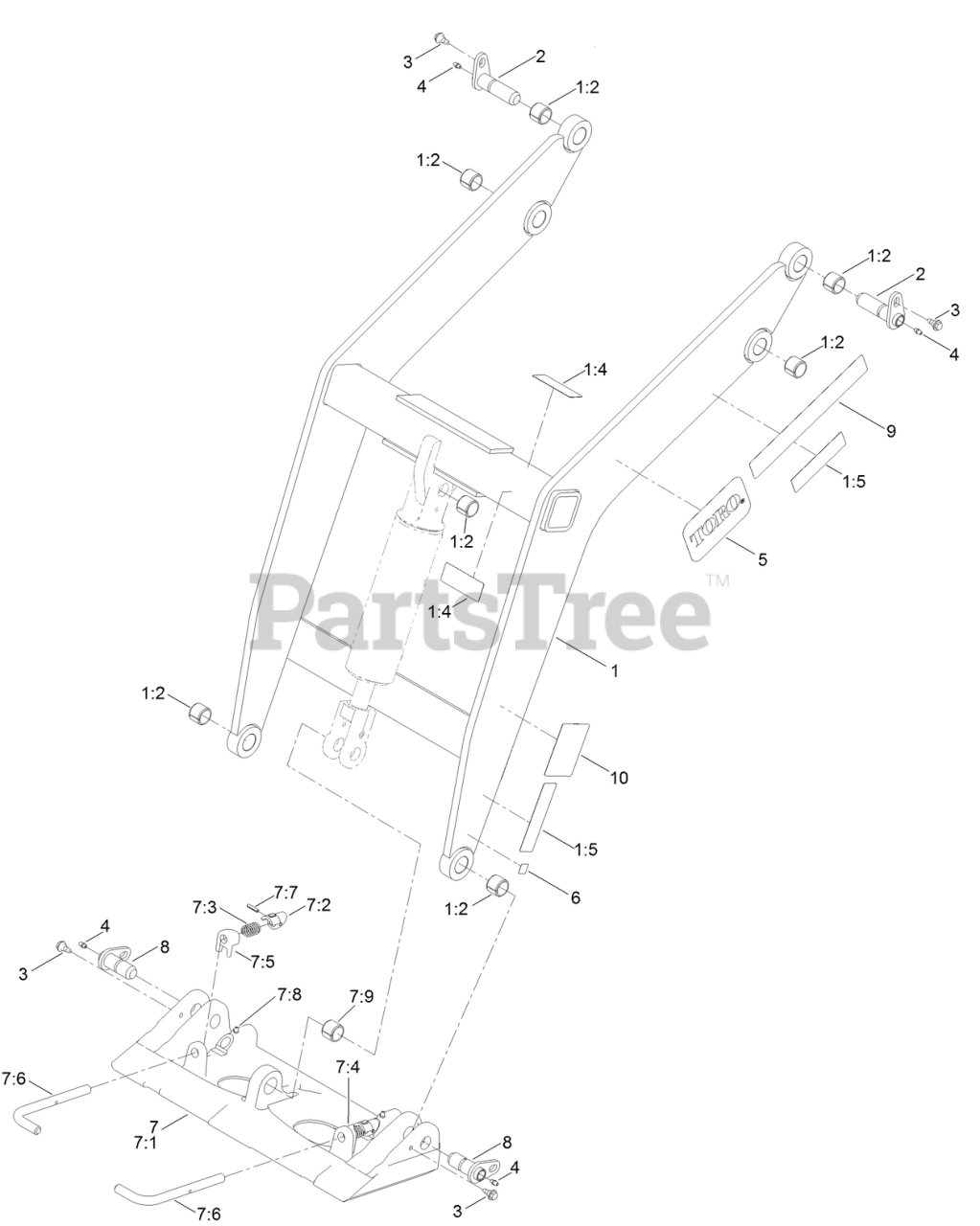

Loader and Quick Attach Assembly Parts Diagram

  • Title

1

Toro 106-8155

LOADER ASM

$2349.99

$

Usually ships in 3-6 days

0

1:2

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

1:4

Toro 130-2837

DECAL-WARNING, NO RIDER

$17.99

$

Usually ships in 3-6 days

0

1:5

Toro 130-2836

DECAL-WARNING, CRUSHING

$21.99

$

Usually ships in 3-6 days

0

2

Toro 120-5363

PIN-PIVOT

$85.99

$

Usually ships in 3-6 days

0

3

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 5

0

4

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

5

Toro 93-7340

DECAL

$55.99

$

Usually ships in 3-6 days

0

6

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

7

Toro 132-8418

QUICK ATTACH ASM

$1443.99

$

Usually ships in 3-6 days

0

7:1

Toro 130-7708-03

MOUNT-QTACH

$1267.99

$

Usually ships in 3-6 days

0

7:2

Toro 105-0246

CAM

$72.99

$

In Stock, only 1 left!

0

7:3

Toro 98-4694

SPRING-COMPRESSION

$11.99

$

In Stock, only 1 left!

0

7:4

Toro 104-5909

STOP-RH

$58.99

$

In Stock, only 1 left!

0

7:5

Toro 104-5903

STOP-LH

$58.99

$

Usually ships in 3-6 days

0

7:6

Toro 132-8419

PIN-LOCKING

$33.99

$

In Stock, only 3 left!

0

7:7

Toro 3285-1

PIN-GROOVED

$2.49

$

In Stock, Qty 7

0

7:8

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7:9

Toro 98-4871

BUSHING-TENSION

$23.99

$

In Stock, only 2 left!

0

8

Toro 112-2609

PIN-PIVOT

$108.99

$

In Stock, only 2 left!

0

9

Toro 139-7658

DECAL- E-DINGO

$8.49

$

Usually ships in 3-6 days

0

10

Toro 139-7708

DECAL-WARNING, BUCKET

$8.49

$

Usually ships in 3-6 days

0
