22218 (500) - Toro e-Dingo Compact Utility Loader (SN: 400000000 - 999999999) Hydraulic Assembly Parts Diagram

e-Dingo Compact Utility Loader

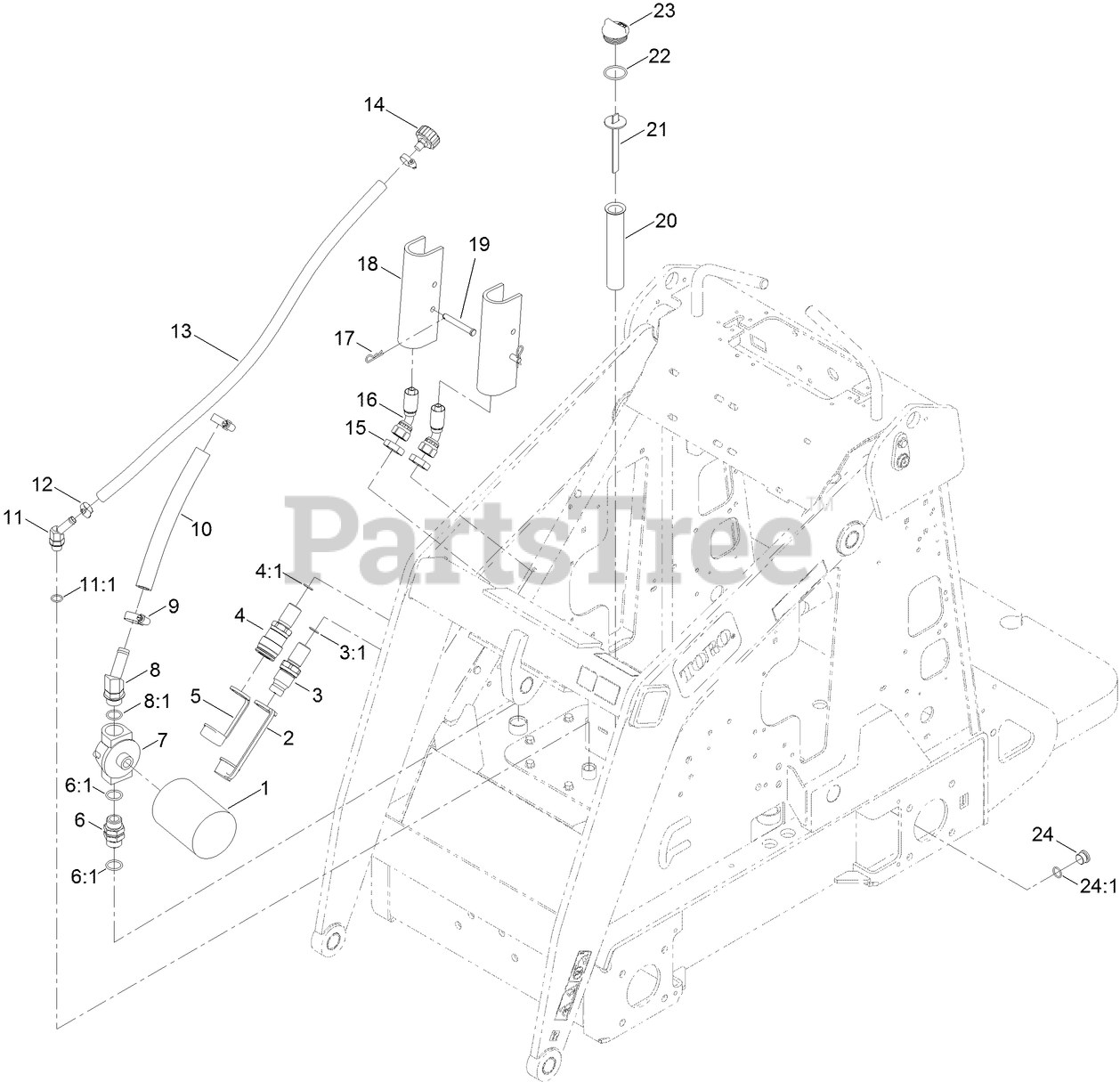

Hydraulic Assembly Parts Diagram

  • Title
1

Toro 54-0110

FILTER-OIL, TRANSMISSION

$15.99

$

In Stock, Qty 14

0

2

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

Usually ships in 3-6 days

0

3

Toro 105-8395

BULKHEAD NIPPLE ASM

$248.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

3:2

Toro 100-6120

SEAL KIT

Note: Not illustrated

$107.99

$

Usually ships in 3-6 days

0

4

Toro 105-8394

BULKHEAD COUPLER ASM

$301.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

5

Toro 100-8816

CAP-DUST, COUPLER

$15.99

$

Usually ships in 3-6 days

0

6

Toro 98-9906

FITTING-THREAD, STRAIGHT

$74.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

7

Toro 92-5821

HEAD-FILTER

$199.99

$

Usually ships in 3-6 days

0

8

Toro 354-127

FITTING-ELBOW45

$90.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

9

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

10

Toro 98-4745

HOSE-HYD, SUCTION, HI

$64.99

$

Usually ships in 3-6 days

0

11

Toro 354-126

FITTING-ELBOW, 45

$58.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

12

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

13

Toro 98-2708

HOSE-VENT

$54.99

$

Usually ships in 3-6 days

0

14

Toro 68-6150

BREATHER

$28.99

$

In Stock, only 1 left!

0

15

Toro 340-74

NUT-LOCK, BULKHEAD

$5.99

$

Usually ships in 3-6 days

0

16

Toro 100-8817

HOSE-HYD

$403.99

$

Usually ships in 3-6 days

0

17

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 5

0

18

Toro 98-4675-01

LOCK-CYLINDER

$34.99

$

Usually ships in 3-6 days

0

19

Toro 283-52

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

20

Toro 61-2790

FILTER-SCREEN

$

$

Not available

21

Toro 100-2097

DIPSTICK-OIL

$63.99

$

Usually ships in 3-6 days

0

22

Toro 237-123

O-RING
(Superseded to 237-101)

$3.49

$

In Stock, only 1 left!

0

23

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 4 left!

0

24

Toro 353-988

PLUG-HEX

$14.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0
