22215 - Toro 30" TurfMaster HDX Walk-Behind Mower (SN: 410094837 - 411701163) Deck Assembly Parts Diagram

30" TurfMaster HDX Walk-Behind Mower

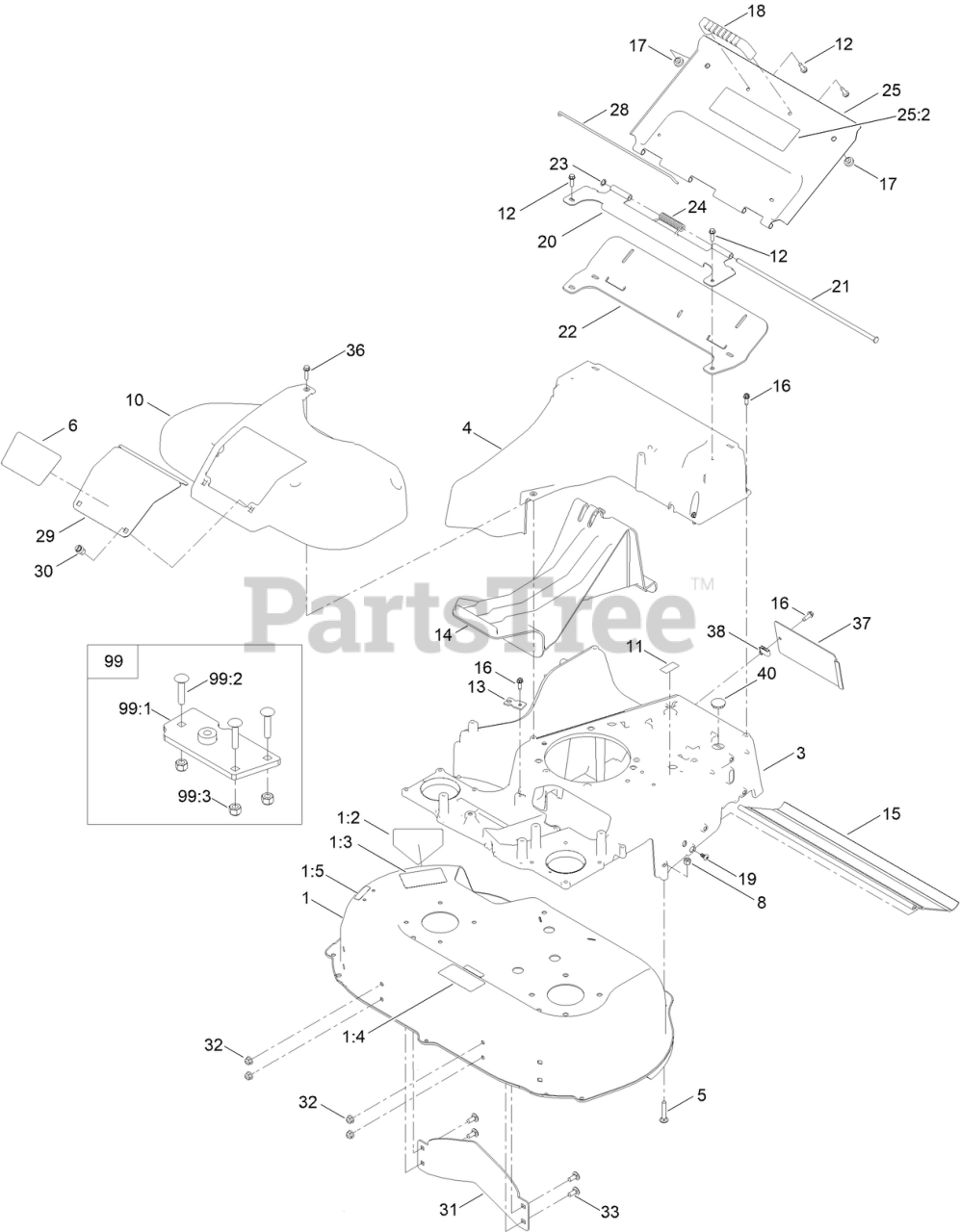

Deck Assembly Parts Diagram

  • Title
1

Toro 136-5900

DECK ASM

$

$

Not available

1:2

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

1:3

Toro 145-3851

DECAL-DANGER, CE

$2.99

$

Usually ships in 3-6 days

0

1:4

$3.49

$

In Stock, only 2 left!

0

1:5

Toro 120-9570

DECAL-WARNING

$1.49

$

In Stock, only 4 left!

0

3

Toro 133-8107-01

FRAME-30 INCH
(Superseded to 145-3920-01)

$217.99

$

Usually ships in 3-6 days

0

4

$58.99

$

Usually ships in 3-6 days

0

5

Toro 3230-5

BOLT-CAR

$0.99

$

Usually ships in 3-6 days

0

6

Toro 139-1674

DECAL-30 INCH

$5.99

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 139-5406

COVER-BELT

$36.99

$

In Stock, only 1 left!

0

11

Toro 126-4345

DECAL-PATENT

$1.99

$

In Stock, Qty 9

0

12

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

13

Toro 138-3224

BRACKET-CABLE, TRACTION

$2.99

$

In Stock, Qty 6

0

14

Toro 120-5225

PLUG-MULCH

$29.99

$

In Stock, only 3 left!

0

15

Toro 121-5841

SHIELD-TRAILING

$22.99

$

In Stock, only 1 left!

0

16

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

17

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

18

Toro 65-5100

HANDLE-DOOR

$9.99

$

In Stock, Qty 8

0

19

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 13

0

20

Toro 116-6351-03

BRACKET-HINGE

$39.99

$

In Stock, only 1 left!

0

21

Toro 116-6933

PIN-HINGE

$8.99

$

In Stock, Qty 5

0

22

Toro 116-6229

SEAL-DOOR

$22.99

$

In Stock, only 2 left!

0

23

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, only 2 left!

0

24

Toro 116-7573

SPRING-TORSION, COVER

$5.49

$

In Stock, Qty 8

0

25

Toro 116-8355

REAR DOOR ASM

$66.99

$

In Stock, only 1 left!

0

25:2

Toro 116-7583

DECAL-WARNING

$17.99

$

In Stock, Qty 11

0

28

Toro 116-6966

CLIP-SEAL

$6.49

$

In Stock, only 2 left!

0

29

Toro 121-5793-03

DOOR-ACCESS

$16.99

$

In Stock, Qty 7

0

30

Toro 121-5840

FASTENER

$6.49

$

In Stock, Qty 20+

0

31

Toro 130-2352-01

BAFFLE-CONTROL

$27.99

$

Usually ships in 3-6 days

0

32

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

33

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

36

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

37

Toro 138-5332-01

COVER-FRAME

$8.49

$

In Stock, only 2 left!

0

38

$2.99

$

In Stock, Qty 20+

0

40

Toro 126-7151

PLUG-BUTTON

$5.49

$

In Stock, Qty 13

0

99

Toro 125-5072

FRAME PLATE KIT

$45.99

$

Usually ships in 3-6 days

0

99:1

Toro 125-2542

PLATE-FRAME

$40.99

$

Usually ships in 3-6 days

0

99:2

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

99:3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0
