22211E - Murray 22" Walk-Behind Mower (1996) Handle Assembly Parts Diagram

22" Walk-Behind Mower

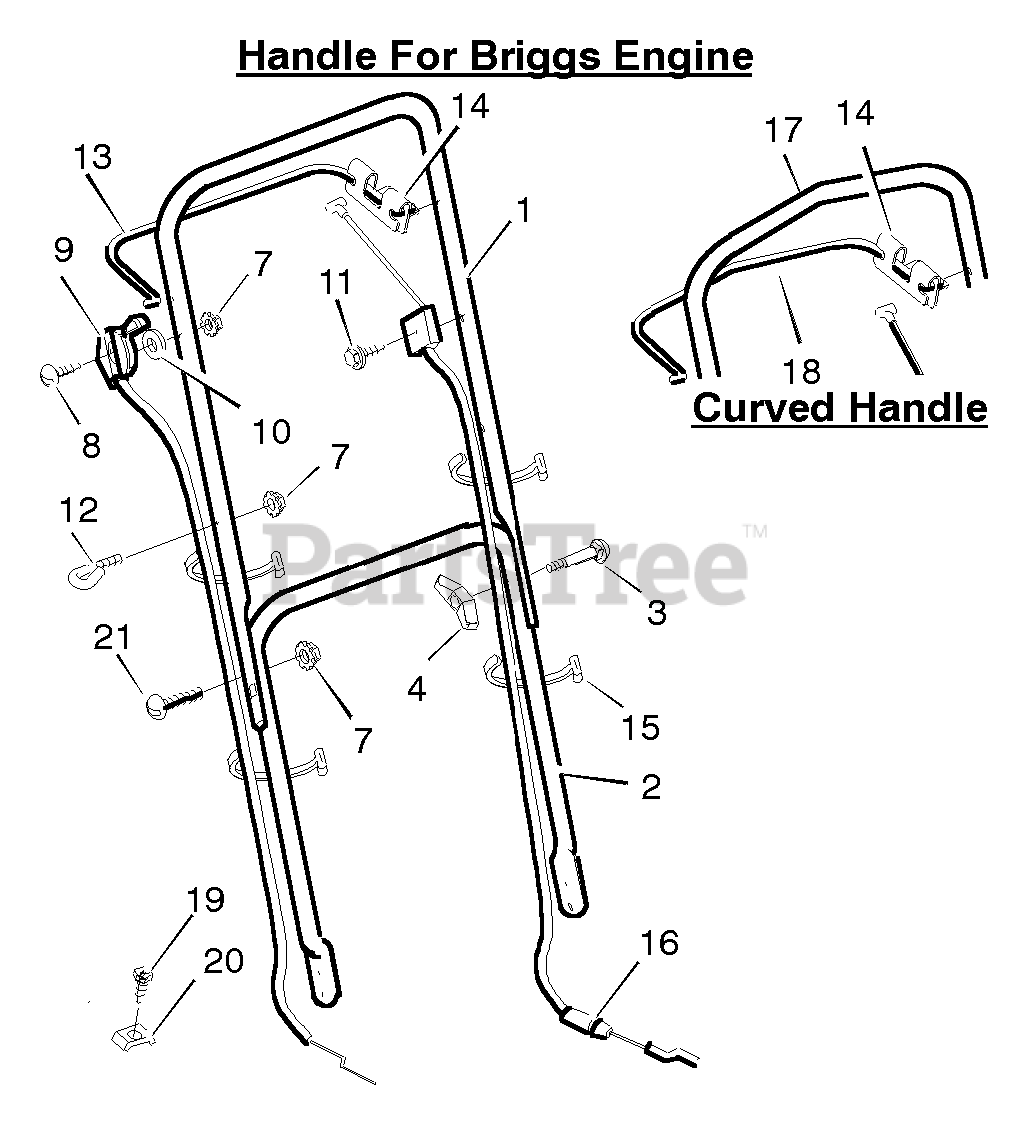

Handle Assembly Parts Diagram

  • Title

1

Murray 071581E701MA

Handle, Upper-Straight (Black)

$159.99

$

Usually ships in 2-12 days

0

--

Murray 71581E724

Handle, Upper-Straight (Gray)

$

$

Currently unavailable

2

Murray 071582E701

Handle, Lower (Black)

$

$

Currently unavailable

--

Murray 71582E724

Handle, Lower (Gray)

$

$

Currently unavailable

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Murray 03X144

Screw

$

$

Not available

9

Murray 043706

Throttle Control

$

$

Currently unavailable

10

Murray 17X184MA

Washer

$3.99

$

Usually ships in 2-12 days

0

11

Murray 26X220MA

Screw

$3.49

$

Usually ships in 2-12 days

0

12

Murray 043956MA

GUIDE, ROPE

$

$

Not available

13

Murray 043653E701MA

Engine Stop Lever-Straight

$34.99

$

Usually ships in 2-12 days

0

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

15

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

16

Murray 043845

Engine Stop Cable

$

$

Currently unavailable

17

Murray 071093E701MA

Handle, Upper- Curved (Black)

$93.99

$

Usually ships in 2-12 days

0

--

Murray 071093E701MA

Handle, Upper- Curved (Gray)

$93.99

$

Usually ships in 2-12 days

0

18

Murray 043792MA

Engine Stop Lever-Curved

$76.99

$

Usually ships in 2-12 days

0

19

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

20

Murray 042294

Clamp

$

$

Not available

21

Murray 03X136MA

Screw

$3.49

$

Usually ships in 2-12 days

0
