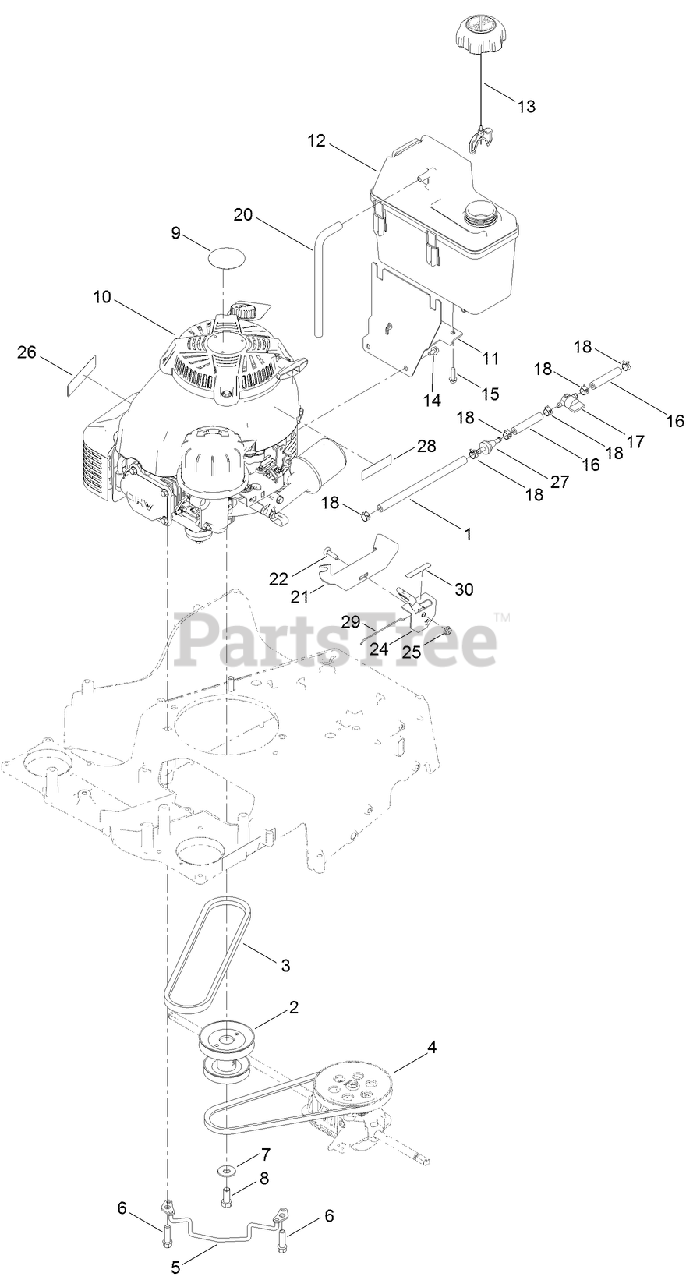

22210 - Toro 30" TurfMaster Walk-Behind Mower (SN: 403600000 - 404319999) Engine and Fuel Tank Assembly Parts Diagram

30" TurfMaster Walk-Behind Mower

Engine and Fuel Tank Assembly Parts Diagram

  • Title
1

Toro 119-1892

HOSE-FUEL

$11.99

$

In Stock, only 1 left!

0

2

Toro 137-9177

PULLEY-ENGINE

$51.99

$

In Stock, Qty 20+

0

3

Toro 121-5765

V-BELT

$19.99

$

In Stock, Qty 20+

0

4

$28.99

$

In Stock, Qty 20+

0

5

Toro 138-5319

GUIDE-BELT
(Superseded to 139-1734)

$23.99

$

In Stock, Qty 12

0

6

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Toro 321-24

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

9

$6.49

$

In Stock, Qty 12

0

10

ENGINE-KAWASAKI FJ180V

Note: Not serviced separately

$

$

Not available

10

ENGINE-KAWASAKI FJ180V

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

11

Toro 115-0954-03

MOUNT-TANK

$43.99

$

In Stock, only 3 left!

0

12

Toro 114-0280

TANK-FUEL

$144.99

$

In Stock, Qty 11

0

13

Toro 137-4127

CAP-FUEL

$23.99

$

In Stock, only 2 left!

0

14

Toro 116-8929

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

15

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

16

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

17

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

18

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

20

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, Qty 12

0

21

Toro 130-6440-03

BRACKET-MOUNT, THROTTLE

$33.99

$

In Stock, only 3 left!

0

22

Toro 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 130-9655

CONTROL-THROTTLE

$43.99

$

In Stock, Qty 15

0

25

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

27

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 20+

0

28

Toro 116-9313

DECAL-WARNING, ENGINE

$1.99

$

Usually ships in 3-6 days

0

29

Toro 130-9654

WIRE-CONTROL

$2.99

$

In Stock, Qty 20+

0

30

Toro 130-9656

DECAL-THROTTLE, CHOKE

$2.99

$

In Stock, Qty 8

0
