22210 - Toro 30" TurfMaster Walk-Behind Mower (SN: 402100000 - 403599999) DECK, FRAME AND CHUTE ASSEMBLY Parts Diagram

30" TurfMaster Walk-Behind Mower

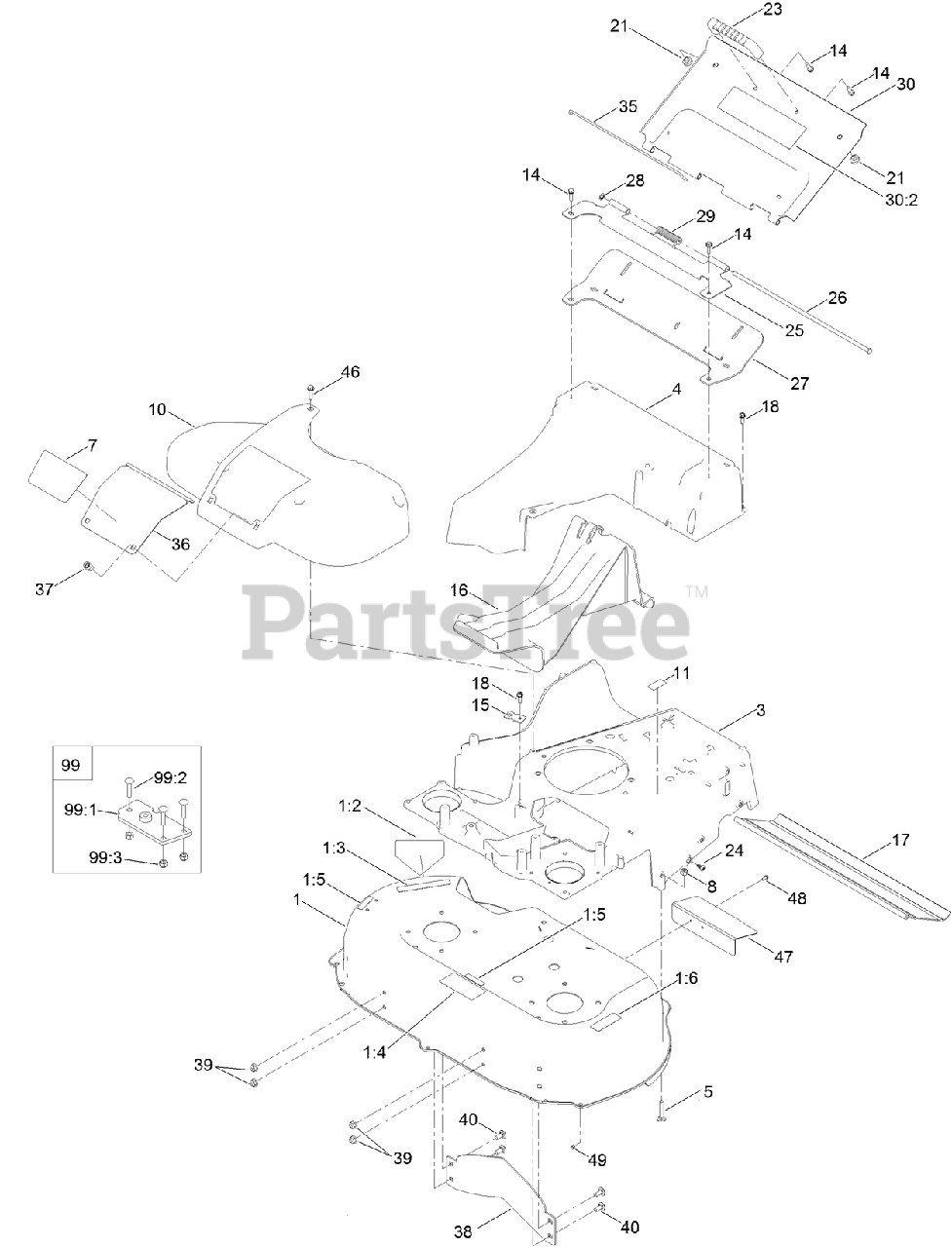

DECK, FRAME AND CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 136-5900

DECK ASM

$

$

Not available

1:2

Toro 94-8072

DECAL-DANGER

$6.99

$

In Stock, only 2 left!

0

1:3

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 20+

0

1:4

Toro 116-8528

DECAL

$3.49

$

In Stock, Qty 10

0

1:5

Toro 120-9570

DECAL-WARNING

$1.49

$

In Stock, only 3 left!

0

1:6

Toro 121-1449

DECAL-WARNING, BLOCK

$5.49

$

In Stock, only 2 left!

0

3

Toro 136-5908-01

FRAME
(Superseded to 140-3978)

$216.99

$

In Stock, only 2 left!

0

4

Toro 133-8177

CHUTE

$61.99

$

Usually ships in 3-6 days

0

5

Toro 3230-5

BOLT-CAR

$0.99

$

In Stock, Qty 12

0

7

Toro 121-9191

DECAL

$6.49

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 121-5810

COVER-BELT
(Superseded to 139-5406)

$38.99

$

In Stock, Qty 5

0

11

Toro 126-4345

DECAL-PATENT

$1.99

$

In Stock, Qty 9

0

14

Toro 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

15

Toro 107-7497

BRACKET-CABLE, TRACTION
(Superseded to 138-3224)

$2.99

$

In Stock, Qty 11

0

16

Toro 120-5225

PLUG-MULCH

$31.99

$

In Stock, Qty 20+

0

17

Toro 121-5841

SHIELD-TRAILING

$23.99

$

In Stock, Qty 10

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

23

Toro 65-5100

HANDLE-DOOR

$10.99

$

In Stock, only 3 left!

0

24

Toro 117-1092

SCREW-PTH
(Superseded to 139-1692)

$0.99

$

In Stock, Qty 20+

0

25

Toro 116-6351-03

BRACKET-HINGE

$42.99

$

In Stock, only 4 left!

0

26

Toro 116-6933

PIN-HINGE

$9.49

$

In Stock, Qty 5

0

27

Toro 116-6229

SEAL-DOOR

$23.99

$

In Stock, Qty 14

0

28

Toro 32151-72

RING-RETAINING

$1.99

$

In Stock, Qty 20+

0

29

Toro 116-7573

SPRING-TORSION, COVER

$5.49

$

In Stock, Qty 10

0

30

Toro 116-8355

REAR DOOR ASM

$76.99

$

In Stock, Qty 5

0

30:2

Toro 116-7583

DECAL-WARNING

$18.99

$

In Stock, Qty 11

0

35

Toro 116-6966

CLIP-SEAL

$6.99

$

In Stock, Qty 17

0

36

Toro 121-5793-03

DOOR-ACCESS

$18.99

$

In Stock, Qty 19

0

37

Toro 121-5840

FASTENER

$6.99

$

In Stock, Qty 20+

0

38

Toro 130-2352-01

BAFFLE-CONTROL

$28.99

$

Usually ships in 3-6 days

0

39

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

46

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

47

Toro 126-6381-01

DEFLECTOR-REAR

$22.99

$

Usually ships in 3-6 days

0

48

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

49

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

99

Toro 125-5072

FRAME PLATE KIT

$51.99

$

Usually ships in 3-6 days

0

99:1

Toro 125-2542

PLATE-FRAME

$46.99

$

Usually ships in 3-6 days

0

99:2

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

99:3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
