22210 - Toro 30" TurfMaster Walk-Behind Mower (SN: 400000000 - 402099999) HANDLE ASSEMBLY Parts Diagram

30" TurfMaster Walk-Behind Mower

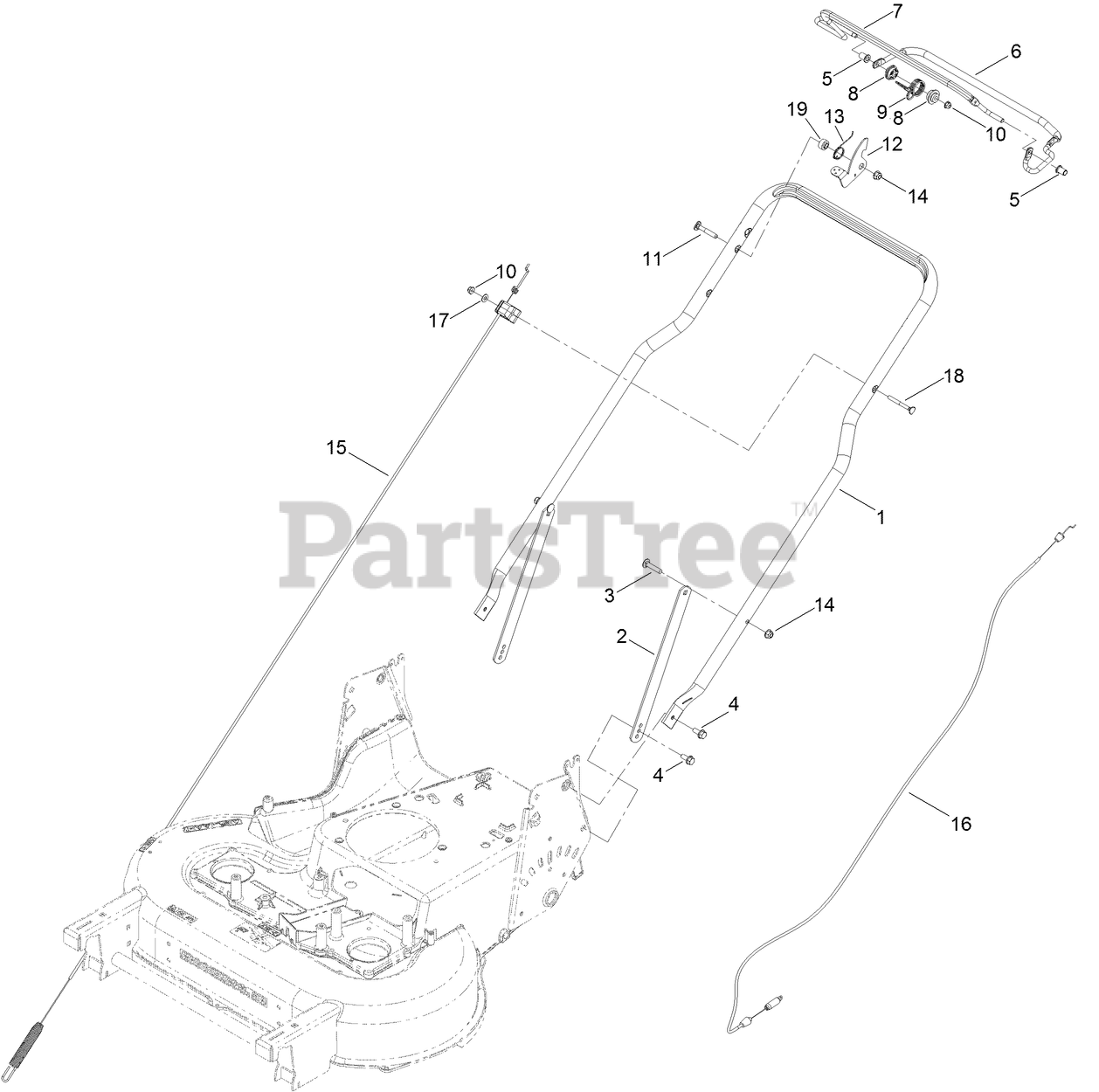

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 120-7086-03

HANDLE

$96.99

$

Usually ships in 3-6 days

0

2

Toro 116-8208-03

SUPPORT-HANDLE

$6.49

$

In Stock, only 2 left!

0

3

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

4

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

5

Toro 116-1478

BUSHING-HANDLEBAR

$6.49

$

In Stock, only 2 left!

0

6

Toro 116-7907

BAIL-DRIVE COATED

$50.99

$

In Stock, only 2 left!

0

7

Toro 109-8442

BAIL

$51.99

$

In Stock, only 1 left!

0

8

Toro 109-8457

BUSHING-SPRING, PIVOT

$6.49

$

In Stock, only 3 left!

0

9

Toro 116-5594

SPRING-RETURN, BBC

$2.99

$

In Stock, Qty 11

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 112-8876

SCREW-HANDLE
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

12

Toro 116-2998

LEVER-BBC

$18.99

$

Usually ships in 3-6 days

0

13

Toro 109-9318

SPRING-LEVER, BBC

$6.49

$

In Stock, Qty 9

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Toro 133-2622

CABLE-BRAKE, 30" 2-BAIL

$42.99

$

In Stock, only 3 left!

0

16

Toro 126-1664

CABLE-TRACTION

$33.99

$

In Stock, Qty 20+

0

17

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 92-2270

SCREW-HANDLE

$8.49

$

In Stock, only 2 left!

0

19

Toro 116-2690

BUSHING-STEPPED

$13.99

$

In Stock, only 1 left!

0

99

Toro 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 6

0
