22210 - Toro 30" TurfMaster Walk-Behind Mower (SN: 316000001 - 316999999) (2016) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

30" TurfMaster Walk-Behind Mower

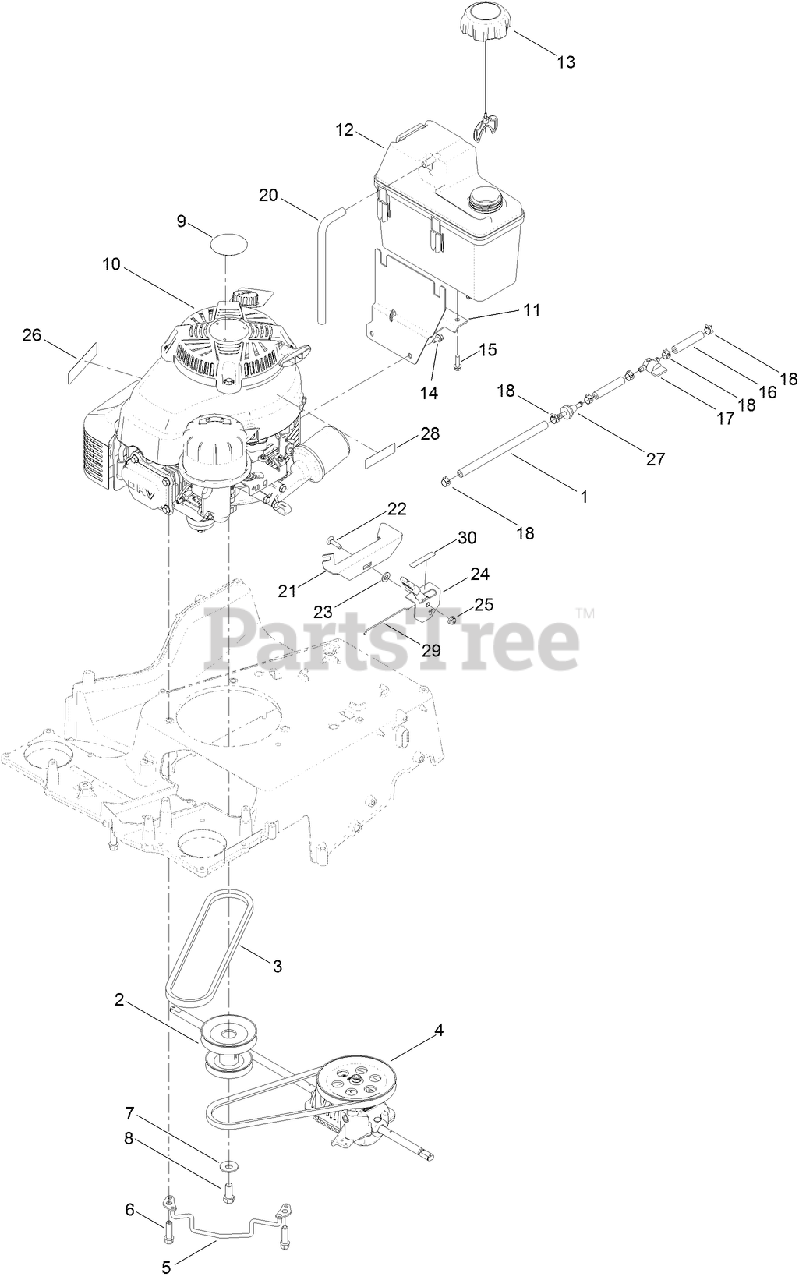

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 119-1892

HOSE-FUEL

$11.99

$

In Stock, only 1 left!

0

2

Toro 116-7013

PULLEY-ENGINE
(Superseded to 137-9177)

$53.99

$

In Stock, Qty 9

0

3

Toro 121-5765

V-BELT

$19.99

$

In Stock, Qty 20+

0

4

$28.99

$

In Stock, only 4 left!

0

5

Toro 120-7077

GUIDE-BELT
(Superseded to 139-1734)

$23.99

$

In Stock, Qty 10

0

6

Toro 95-1727

Screw-HWH 3/8-16 x 1 1/4 Taptite

$2.99

$

In Stock, Qty 20+

0

7

Toro 3290-465

Washer-Spring Disc

$3.49

$

In Stock, Qty 20+

0

8

Toro 3212-4

Screw-HH 7/16-20 x 1

$3.49

$

In Stock, only 2 left!

0

9

Toro 109-6528

Decal-Recoil

$6.49

$

In Stock, only 1 left!

0

10

ENGINE-KAWASAKI FJ180V

Note: Not serviced separately

$

$

Not available

10

ENGINE-KAWASAKI FJ180V

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

11

Toro 115-0954-03

MOUNT-TANK

$42.99

$

In Stock, only 3 left!

0

12

Toro 114-0280

TANK-FUEL

$140.99

$

In Stock, only 4 left!

0

13

Toro 115-7788

CAP-FUEL
(Superseded to 137-4127)

$22.99

$

In Stock, Qty 6

0

14

Toro 116-8929

SCREW-HWH

$1.99

$

In Stock, Qty 9

0

15

Toro 46-8091

Screw-HWH 1/4-10 x .82 Plastite

$3.99

$

In Stock, Qty 20+

0

16

Toro 109-0304

Hose-Fuel Line 2 1/2"

$2.49

$

In Stock, Qty 12

0

17

Toro 1-603770

Valve-Fuel

$7.99

$

In Stock, Qty 14

0

18

Toro 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

20

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

21

Toro 130-6440-03

BRACKET-MOUNT, THROTTLE

$31.99

$

In Stock, only 4 left!

0

22

Toro 3229-30

Bolt-Carriage 1/4-20 x 1

$1.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

Washer-5/16 SAE

$2.49

$

In Stock, Qty 20+

0

24

Toro 130-9655

CONTROL-THROTTLE

$41.99

$

In Stock, only 3 left!

0

25

Toro 104-7201

Nut-Nyloc 1/4-20 Flg

$1.49

$

In Stock, Qty 20+

0

26

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

27

Toro 71-9280

FILTER-FUEL
(Superseded to 139-5916)

$9.49

$

In Stock, Qty 14

0

28

Toro 116-9313

DECAL-WARNING, ENGINE

$1.99

$

Usually ships in 3-6 days

0

29

Toro 130-9654

WIRE-CONTROL

$2.99

$

In Stock, Qty 20+

0

30

Toro 130-9656

DECAL-THROTTLE, CHOKE

$2.99

$

In Stock, only 2 left!
