22207 - Toro 76cm TurfMaster Walk-Behind Mower (SN: 412700000 - 999999999) Front Bumper and Wheel Assembly Parts Diagram

76cm TurfMaster Walk-Behind Mower

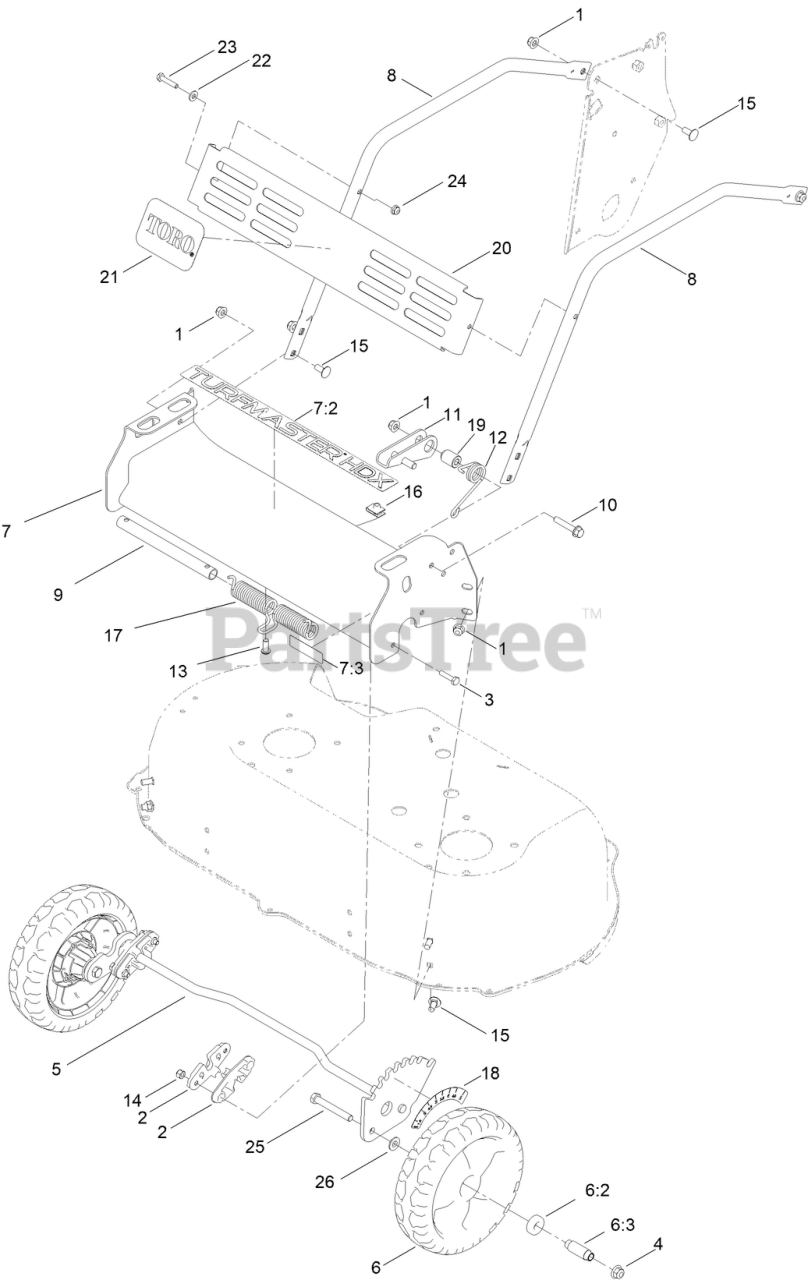

Front Bumper and Wheel Assembly Parts Diagram

  • Title
1

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 121-5781

BUSHING-FRONT

$7.49

$

In Stock, Qty 20+

0

3

Toro 321-7

SCREW-HH

$5.49

$

In Stock, Qty 11

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 139-8968

FRONT AXLE ASM

$53.99

$

In Stock, Qty 11

0

6

$62.99

$

In Stock, Qty 20+

0

6:2

Toro 133-2603

BEARING-BALL

$26.99

$

In Stock, Qty 20+

0

6:3

Toro 125-1077

SPACER

$6.99

$

In Stock, Qty 12

0

7

Toro 139-6616

FRONT BUMPER ASM

$181.99

$

Usually ships in 3-6 days

0

7:2

$5.99

$

Usually ships in 3-6 days

0

7:3

Toro 116-7581

DECAL-WARNING

$3.49

$

In Stock, only 2 left!

0

$46.99

$

In Stock, only 2 left!

0

9

Toro 131-9690

MANDRELL-SPRING

$14.99

$

Usually ships in 3-6 days

0

10

Toro 94-5780

SCREW-HWH

$8.49

$

In Stock, only 2 left!

0

11

Toro 139-1744

LOCK-HEIGHT, ADJ
(Superseded to 125-2483)

$20.99

$

In Stock, only 1 left!

0

12

Toro 120-9465

SPRING-TORSION

$6.99

$

Usually ships in 3-6 days

0

13

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

17

Toro 121-2337

SPRING-TORSION

$21.99

$

In Stock, only 1 left!

0

18

Toro 136-9078

DECAL-HOC, FRONT

$9.99

$

Usually ships in 3-6 days

0

19

Toro 125-2486

SPACER

$12.99

$

Usually ships in 3-6 days

0

20

$46.99

$

In Stock, only 2 left!

0

21

$34.99

$

In Stock, only 1 left!

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

24

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

26

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 20+

0
