22207 - Toro 76cm TurfMaster Walk-Behind Mower (SN: 406000000 - 407299999) Handle Assembly Parts Diagram

76cm TurfMaster Walk-Behind Mower

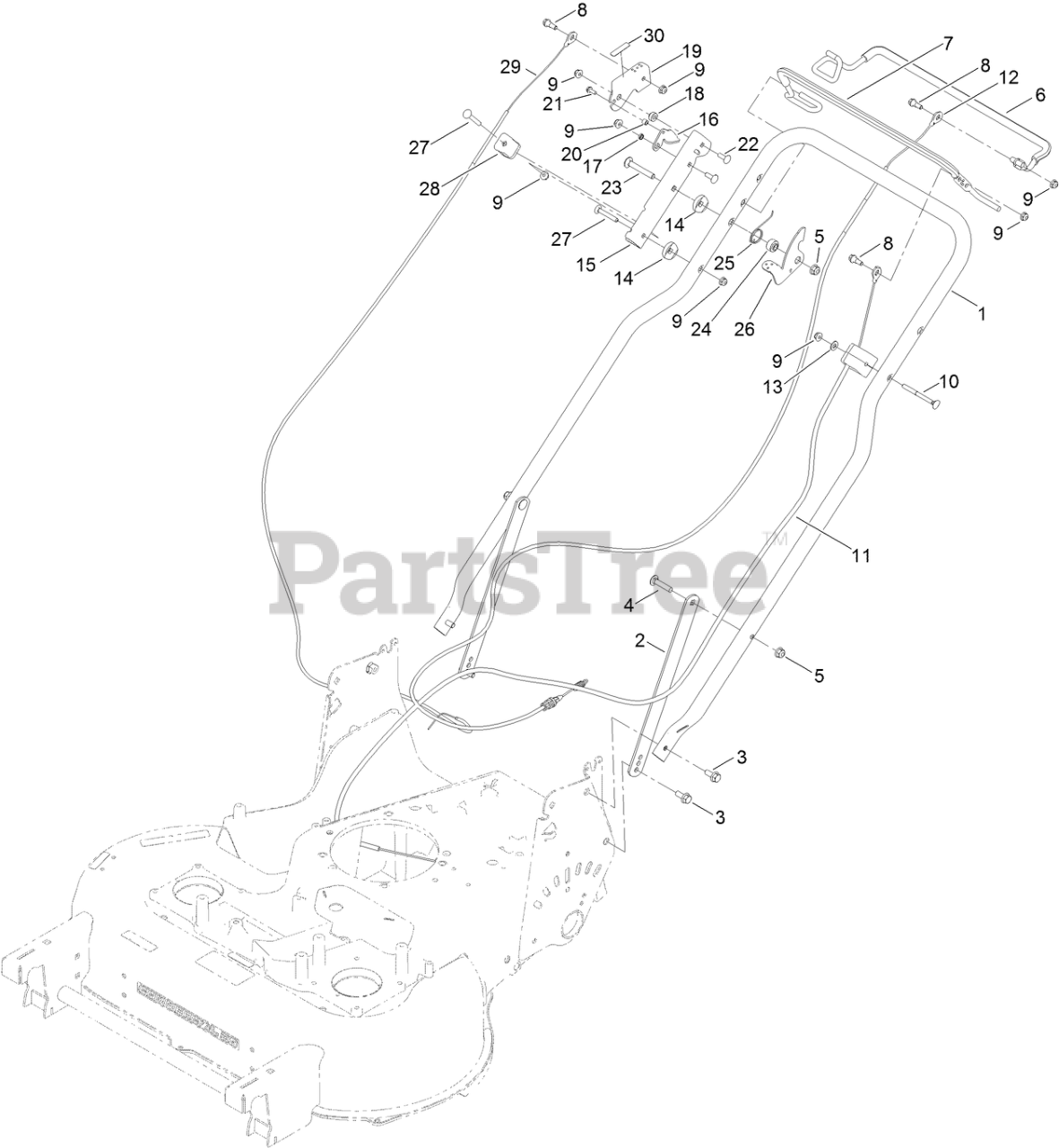

Handle Assembly Parts Diagram

  • Title
1

$

$

Not available

2

Toro 116-8208-03

SUPPORT-HANDLE

$6.49

$

In Stock, only 2 left!

0

3

Toro 116-7230

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

4

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

6

Toro 139-1815

BAIL-TRACTION, COATED

$38.99

$

In Stock, only 2 left!

0

7

Toro 137-4810

BAIL-BBC, COATED

$39.99

$

Usually ships in 3-6 days

0

8

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, only 3 left!

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 92-2267

SCREW-HANDLE

$6.49

$

In Stock, only 4 left!

0

11

Toro 137-4759

CABLE-BBC

$36.99

$

Usually ships in 3-6 days

0

12

Toro 137-4807

CABLE-TRACTION

$37.99

$

In Stock, Qty 9

0

13

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 106-7260

WASHER-CURVED

$9.49

$

Usually ships in 3-6 days

0

15

Toro 139-1818-03

MOUNT-LEVER, BRAKE

$23.99

$

In Stock, only 1 left!

0

16

Toro 139-1813

LINK-ACTUATION, BRAKE

$2.99

$

In Stock, Qty 10

0

17

Toro 138-5368

SPACER

$1.49

$

In Stock, Qty 5

0

18

Toro 139-1817

WASHER-STEPPED

$1.99

$

In Stock, only 4 left!

0

19

Toro 139-1819

LEVER-BRAKE

$7.99

$

In Stock, only 2 left!

0

20

Toro 117-9965

SPACER

$8.99

$

In Stock, only 1 left!

0

21

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

22

Toro 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

23

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

24

Toro 116-2690

BUSHING-STEPPED

$13.99

$

In Stock, only 1 left!

0

25

Toro 109-9318

SPRING-LEVER, BBC

$6.49

$

In Stock, Qty 9

0

26

Toro 116-2998

LEVER-BBC

$18.99

$

Usually ships in 3-6 days

0

27

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

28

Toro 106-6801

ANCHOR-CABLE

$7.99

$

In Stock, Qty 7

0

29

Toro 138-5399

CABLE-BRAKE, PARKING

$36.99

$

In Stock, Qty 20+

0

30

Toro 139-5405

DECAL-BRAKE, PARKING

$2.99

$

In Stock, only 1 left!

0

99

Toro 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 6

0
