22207 - Toro 76cm TurfMaster Walk-Behind Mower (SN: 406000000 - 407299999) Blade and Spindle Assembly Parts Diagram

76cm TurfMaster Walk-Behind Mower

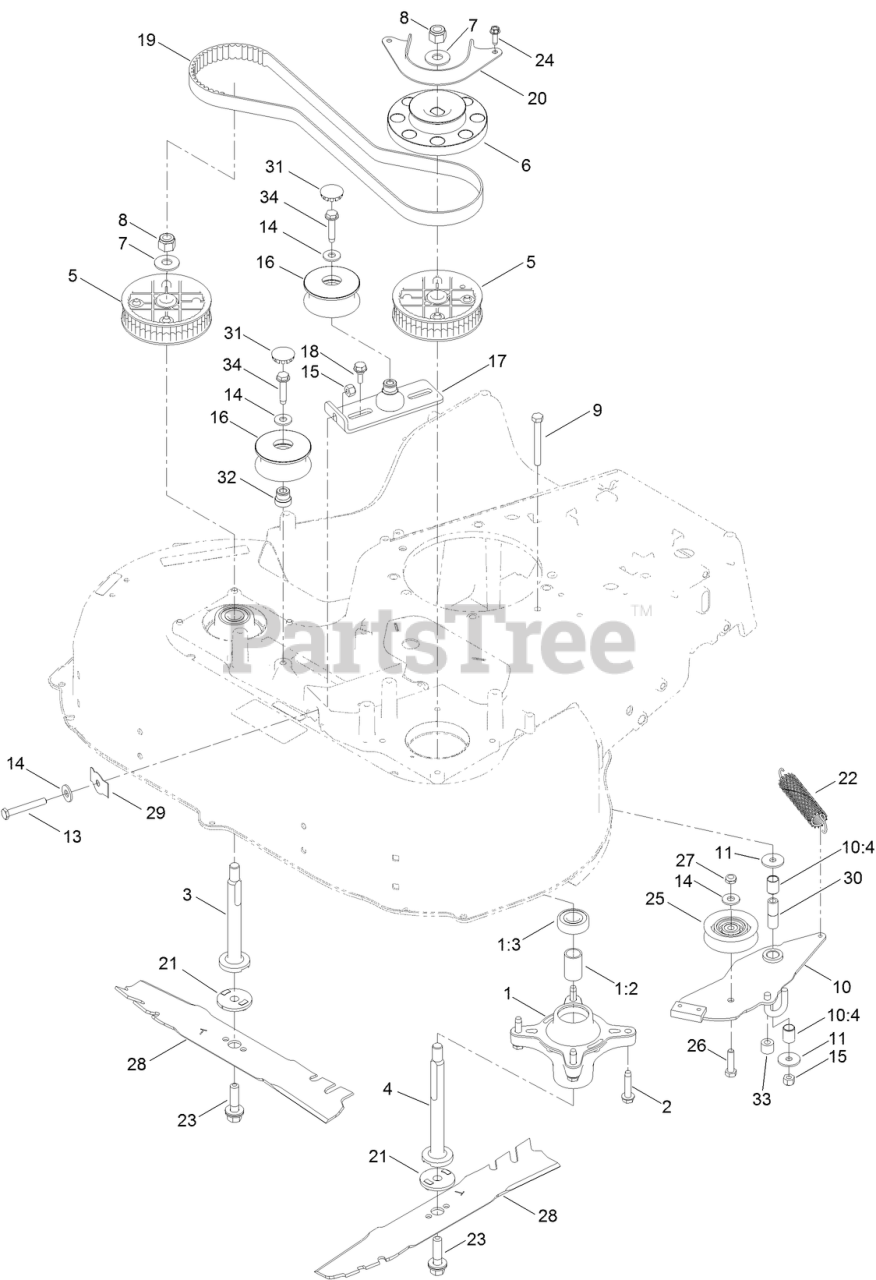

Blade and Spindle Assembly Parts Diagram

  • Title

1

Toro 121-9107

SPINDLE ASM

$75.99

$

In Stock, Qty 20+

0

1:2

Toro 120-7935

SPACER

$2.49

$

In Stock, Qty 20+

0

1:3

Toro 136-5441

BEARING-BALL

$7.99

$

In Stock, Qty 20+

0

2

Toro 139-1731

SCREW-THD ROLL, HWH

$1.49

$

In Stock, Qty 20+

0

3

Toro 120-5234

SHAFT-SPINDLE
(Superseded to 139-6612)

$28.99

$

In Stock, Qty 20+

0

4

Toro 120-5235

SHAFT-SPINDLE
(Superseded to 139-6613)

$29.99

$

In Stock, Qty 20+

0

5

Toro 121-9100

SPROCKET

$53.99

$

In Stock, Qty 20+

0

6

Toro 130-6664

PULLEY-BRAKE, SPINDLE

$47.99

$

In Stock, Qty 20+

0

7

Toro 109-9505

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

8

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

9

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

10

Toro 136-5903

BRAKE ARM ASM

$67.99

$

In Stock, Qty 20+

0

10:4

Toro 131-0819

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

11

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

13

Toro 9114524

BOLT-TAP, HH
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

14

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 126-7890

PULLEYS AND IDLER KIT

$176.99

$

In Stock, only 3 left!

0

17

Toro 126-6453

BRACKET-IDLER

$61.99

$

In Stock, Qty 14

0

18

Toro 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 20+

0

19

Toro 120-3335

BELT-SYNCHRONOUS

$85.99

$

In Stock, Qty 20+

0

20

Toro 120-5245-03

GUIDE-BELT, SPINDLE

$11.99

$

In Stock, Qty 20+

0

21

Toro 120-5236

ADAPTER-BLADE

$6.99

$

In Stock, Qty 20+

0

22

Toro 121-5808

SPRING-EXTENSION, BRAKE

$17.99

$

In Stock, Qty 20+

0

23

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

24

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

25

Toro 120-7082

PULLEY-IDLER

$23.99

$

In Stock, Qty 20+

0

26

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

27

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

28

Toro 120-9500-03

BLADE-ATOMIC, 15.4 INCH

$29.99

$

In Stock, Qty 20+

0

29

Toro 121-2336

SPRING-FLAT

$7.99

$

In Stock, Qty 20+

0

30

Toro 131-0823

SPACER-BRAKE

$13.99

$

In Stock, Qty 20+

0

31

Toro 126-7151

PLUG-BUTTON

$5.49

$

In Stock, Qty 9

0

32

Toro 131-4504

ADAPTER-BORE

$5.49

$

In Stock, Qty 20+

0

33

Toro 133-1964

HOSE-COOLANT

$2.99

$

In Stock, Qty 20+

0

34

Toro 32144-57

SCREW

$2.49

$

In Stock, Qty 20+

0
