22205 TE - Toro 76cm TurfMaster Walk-Behind Mower (SN: 315000001 - 315999999) (2015) BRAKE CABLE AND CONTROL BAR ASSEMBLY Parts Diagram

76cm TurfMaster Walk-Behind Mower

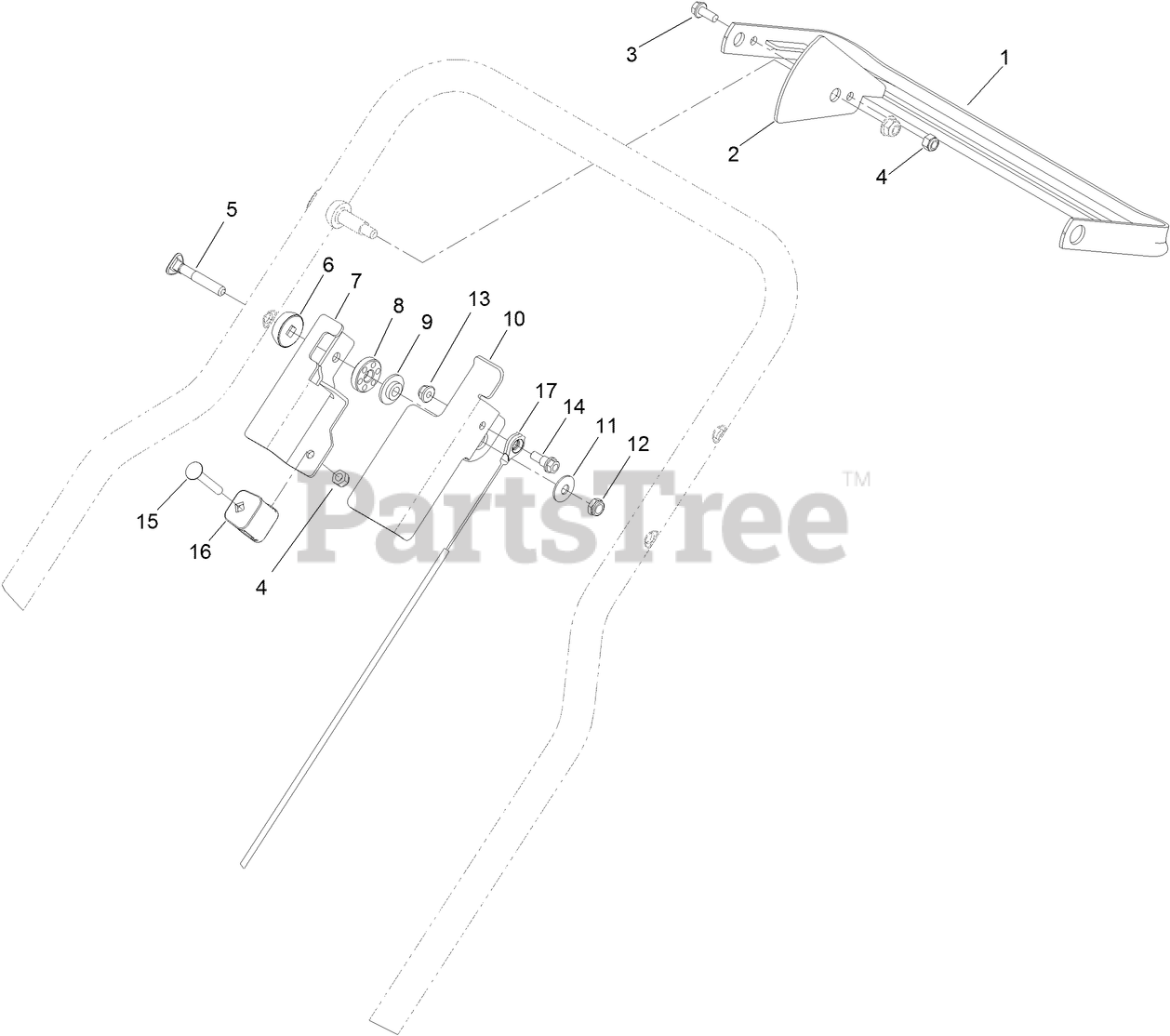

BRAKE CABLE AND CONTROL BAR ASSEMBLY Parts Diagram

  • Title

1

Toro 131-9660-03

BAR-CONTROL

$86.99

$

Usually ships in 3-6 days

0

2

Toro 131-9670-03

STOP

$5.99

$

Usually ships in 3-6 days

0

3

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

4

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

5

Toro 17-9428

SCREW-HANDLE

$1.99

$

Usually ships in 3-6 days

0

6

Toro 106-7260

WASHER-CURVED

$9.49

$

Usually ships in 3-6 days

0

7

Toro 131-9669-03

BRACKET-ANCHOR, CABLE

$18.99

$

Usually ships in 3-6 days

0

8

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

9

Toro 105-3006

Washer-Stepped

$2.99

$

In Stock, only 1 left!

0

10

Toro 131-9668-03

LEVER-BRAKE

$19.99

$

In Stock, only 1 left!

0

11

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, only 3 left!

0

15

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

16

Toro 106-6801

ANCHOR-CABLE

$7.99

$

In Stock, Qty 7

0

17

Toro 131-9661

CABLE-BRAKE, PARKING

$44.99

$

Usually ships in 3-6 days

0
