22203 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 313000001 - 313999999) (2013) DECK AND CHUTE ASSEMBLY Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

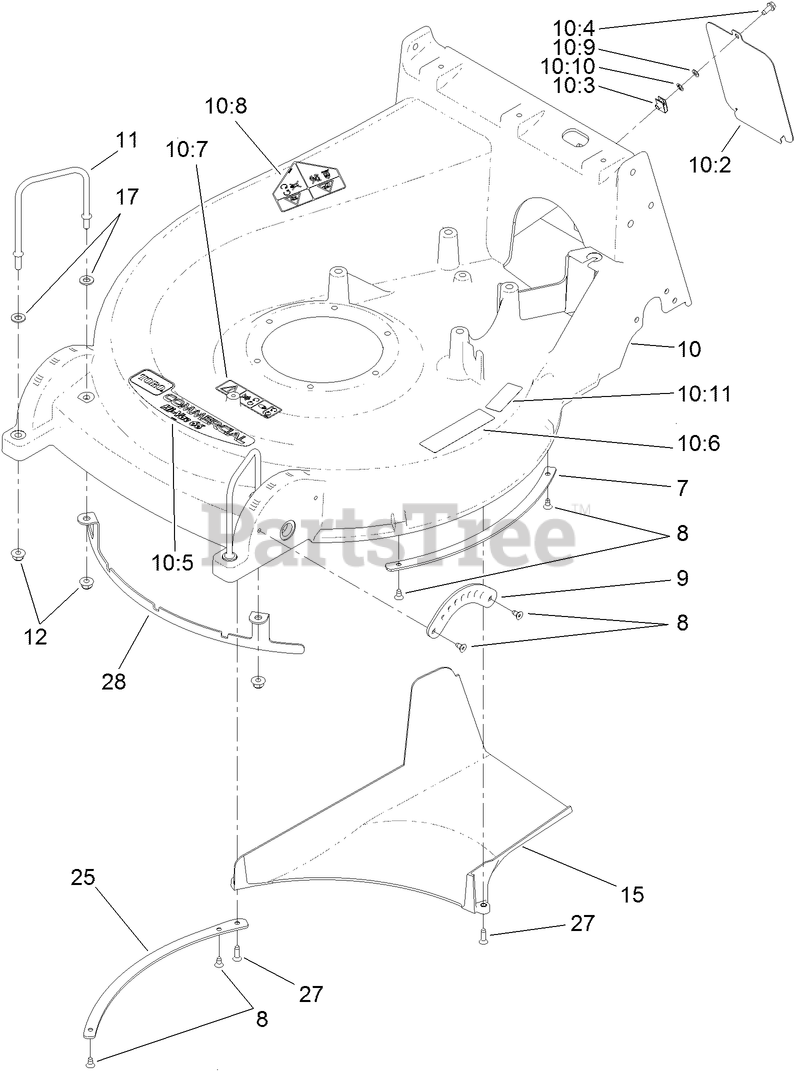

DECK AND CHUTE ASSEMBLY Parts Diagram

  • Title

7

Toro 116-0059-03

PLATE-SKID, 10 GAGE

$33.99

$

Usually ships in 3-6 days

0

8

Toro 103-6145

SCREW

$5.49

$

In Stock, Qty 10

0

9

Toro 103-6460

QUADRANT-FRONT

$28.99

$

Usually ships in 3-6 days

0

10

Toro 115-4240

DECK ASM

$712.99

$

Usually ships in 3-6 days

0

10:2

Toro 116-0336

COVER-ACCESS, AXLE

$27.99

$

Usually ships in 3-6 days

0

10:3

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10:4

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

10:5

Toro 112-8709

DECAL

$

$

Not available

10:6

Toro 110-4978

DECAL-DANGER

$17.99

$

In Stock, only 2 left!

0

10:7

Toro 112-9028

DECAL-MISSING, COVER

$22.99

$

Usually ships in 3-6 days

0

10:8

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

10:9

Toro 3256-60

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

10:10

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

10:11

Toro 121-1449

DECAL-WARNING, BLOCK

$5.49

$

In Stock, only 2 left!

0

11

Toro 116-6944

HANDLE-DECK

$29.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 116-1405

PLASTIC CHUTE KIT (W/SCREWS)

$83.99

$

In Stock, only 1 left!

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 116-1273-03

PLATE-SKID

$51.99

$

Usually ships in 3-6 days

0

27

Toro 116-0606

SCREW-TORX

$9.49

$

In Stock, Qty 6

0

28

Toro 116-6862-01

GUARD-FRONT BLADE

$64.99

$

Usually ships in 3-6 days

0
