22200 - Toro 30" TurfMaster Walk-Behind Mower (SN: 314000001 - 314999999) (2014) SPINDLE AND BLADE ASSEMBLY Parts Diagram

30" TurfMaster Walk-Behind Mower

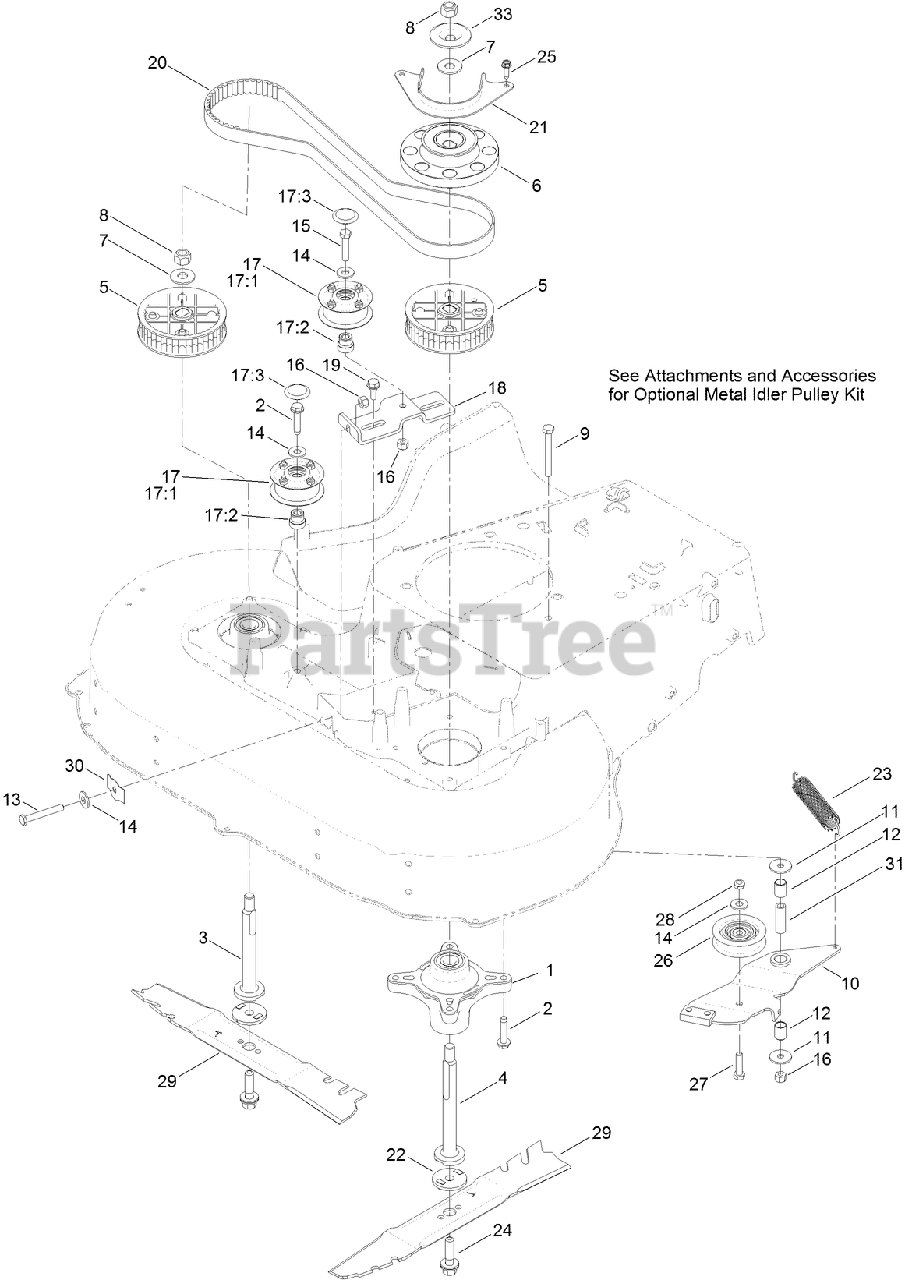

SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 120-6234

SPINDLE ASM
(Superseded to 121-9107)

$75.99

$

In Stock, Qty 20+

0

2

$2.49

$

In Stock, Qty 20+

0

3

Toro 120-5234

SHAFT-SPINDLE
(Superseded to 139-6612)

$28.99

$

In Stock, only 1 left!

0

4

Toro 120-5235

SHAFT-SPINDLE
(Superseded to 139-6613)

$29.99

$

In Stock, only 1 left!

0

5

Toro 121-9100

SPROCKET

$53.99

$

In Stock, Qty 20+

0

6

Toro 120-3334

PULLEY-BRAKE, SPINDLE
(Superseded to 130-6664)

$47.99

$

In Stock, Qty 10

0

7

Toro 109-9505

WASHER-SPRING

$5.49

$

In Stock, only 4 left!

0

8

Toro 130-2384

NUT-HEX

$1.49

$

In Stock, Qty 13

0

9

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

10

Toro 121-5796

BRAKE ARM ASM
(Superseded to 133-2610)

$68.99

$

In Stock, Qty 14

0

11

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

12

Toro 131-0819

Bushing-Sleeve

$2.99

$

In Stock, Qty 6

0

13

Toro 9114524

BOLT-TAP, HH
(Superseded to 139-1728)

$1.49

$

In Stock, Qty 20+

0

14

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 131-4529

PULLEY KIT

$27.99

$

In Stock, Qty 20+

0

17:1

PULLEY ASM

Note: Not serviced separately

$

$

Not available

17:2

Toro 131-4504

ADAPTER-BORE

$5.49

$

In Stock, Qty 7

0

17:3

Toro 125-2533

PLUG-CAP

$2.99

$

In Stock, Qty 20+

0

18

Toro 120-3348

BRACKET-IDLER
(Superseded to 145-4016)

$9.49

$

In Stock, Qty 6

0

19

Toro 120-7024

SCREW-SHOULDER, HHF

$2.99

$

In Stock, Qty 18

0

20

Toro 120-3335

BELT-SYNCHRONOUS

$82.99

$

In Stock, Qty 20+

0

21

Toro 120-5245-03

GUIDE-BELT, SPINDLE

$11.99

$

In Stock, only 4 left!

0

22

Toro 120-5236

ADAPTER-BLADE

$7.99

$

In Stock, Qty 20+

0

23

Toro 121-5808

SPRING-EXTENSION, BRAKE

$17.99

$

In Stock, only 4 left!

0

24

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

25

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

26

Toro 120-7082

PULLEY-IDLER

$23.99

$

In Stock, Qty 20+

0

27

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

28

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

29

Toro 116-6358-03

BLADE-ROTARY

$25.99

$

In Stock, Qty 20+

0

30

Toro 121-2336

SPRING-FLAT

$7.99

$

In Stock, Qty 20+

0

31

Toro 131-0823

Spacer-Brake

$13.99

$

In Stock, Qty 5

0

33

Toro 130-2364

WASHER-CUP

$2.99

$

In Stock, Qty 11

0
