22200 - Toro 30" TurfMaster Walk-Behind Mower (SN: 313000001 - 313999999) (2013) SIDE DISCHARGE CHUTE ASSEMBLY Parts Diagram

30" TurfMaster Walk-Behind Mower

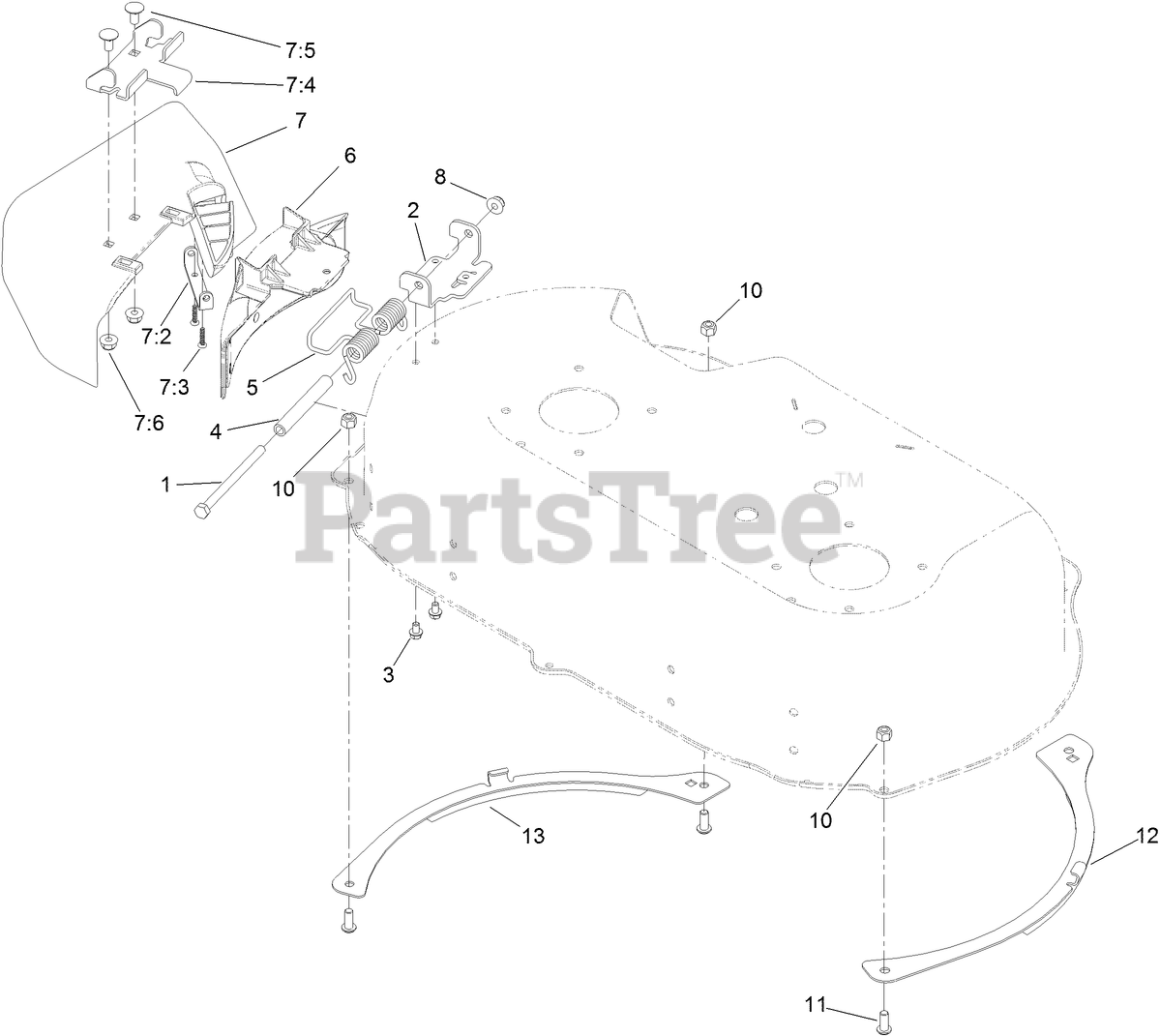

SIDE DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2

Toro 121-9195

HINGE

$17.99

$

Usually ships in 3-6 days

0

3

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

4

Toro 125-2478

SPACER

$9.49

$

Usually ships in 3-6 days

0

5

Toro 121-9193

SPRING-TORSION

$27.99

$

In Stock, only 1 left!

0

6

Toro 121-9194-01

COVER-DISCHARGE
(Superseded to 125-5093-01)

$35.99

$

In Stock, only 4 left!

0

7

Toro 125-2450

SIDE DISCHARGE CHUTE ASM
(Superseded to 116-9754)

$61.99

$

In Stock, Qty 6

0

7:2

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 4 left!

0

7:3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7:4

Toro 121-9196

BRACKET-CHUTE

$22.99

$

In Stock, only 1 left!

0

7:5

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

7:6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

11

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

12

Toro 125-5074-03

SKID-LH

$43.99

$

In Stock, only 4 left!

0

13

Toro 125-5075-03

SKID-RH

$43.99

$

In Stock, only 2 left!

0
