22200 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 290000501 - 290999999) (2009) ENGINE ASSEMBLY Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

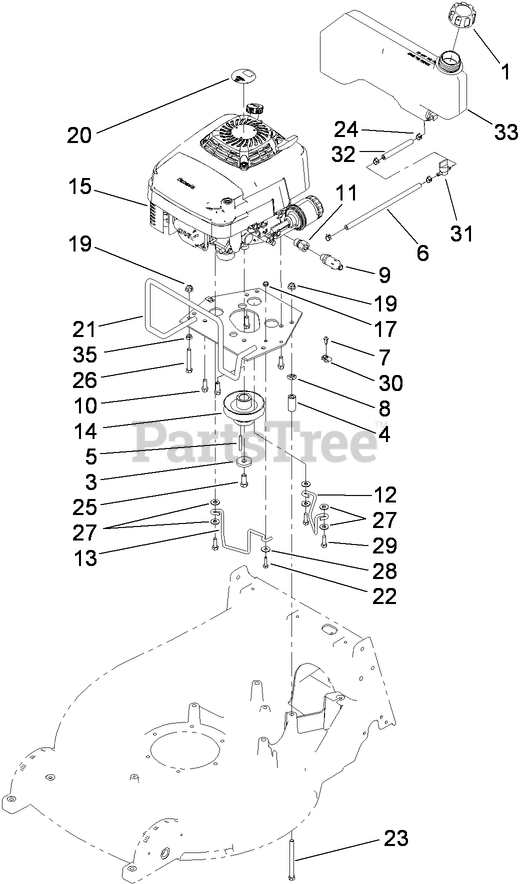

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

3

Toro 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 5

0

4

Toro 116-1182

SPACER

$6.49

$

Usually ships in 3-6 days

0

5

Toro 7-0036

KEY-SQUARE

$

$

Not available

6

Toro 109-0294

Hose-Fuel

$6.99

$

In Stock, only 1 left!

0

7

Toro 63-8590

SCREW

$1.49

$

In Stock, only 4 left!

0

8

Toro 78-7170

RING-RETAINING

$1.49

$

In Stock, Qty 17

0

9

Toro 92-6877

VALVE-DRAIN, OIL

$41.99

$

In Stock, only 1 left!

0

10

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

11

Toro 103-1966

Adapter

$18.99

$

In Stock, only 1 left!

0

12

Toro 116-0860

GUIDE-BELT, REAR

$18.99

$

Usually ships in 3-6 days

0

13

Toro 116-0859

GUIDE-BELT, FRONT

$25.99

$

Usually ships in 3-6 days

0

14

Toro 116-0822

SHEAVE-DRIVE

$117.99

$

Usually ships in 3-6 days

0

15

Toro 110-5045

ENGINE-Kawasaki, FJ180V-AS64

$

$

Not available

17

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

$34.99

$

Usually ships in 3-6 days

0

21

Toro 116-0972-03

PLATE-ENGINE

$

$

Not available

22

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

24

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

25

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

26

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

27

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

29

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

30

$2.99

$

In Stock, Qty 20+

0

31

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

32

Toro 109-0295

HOSE-FUEL

$3.49

$

Usually ships in 3-6 days

0

33

Toro 109-3851

FUEL TANK ASM

$

$

Not available

35

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0
