22200 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 290000001 - 290000500) (2009) HOUSING ASSEMBLY Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

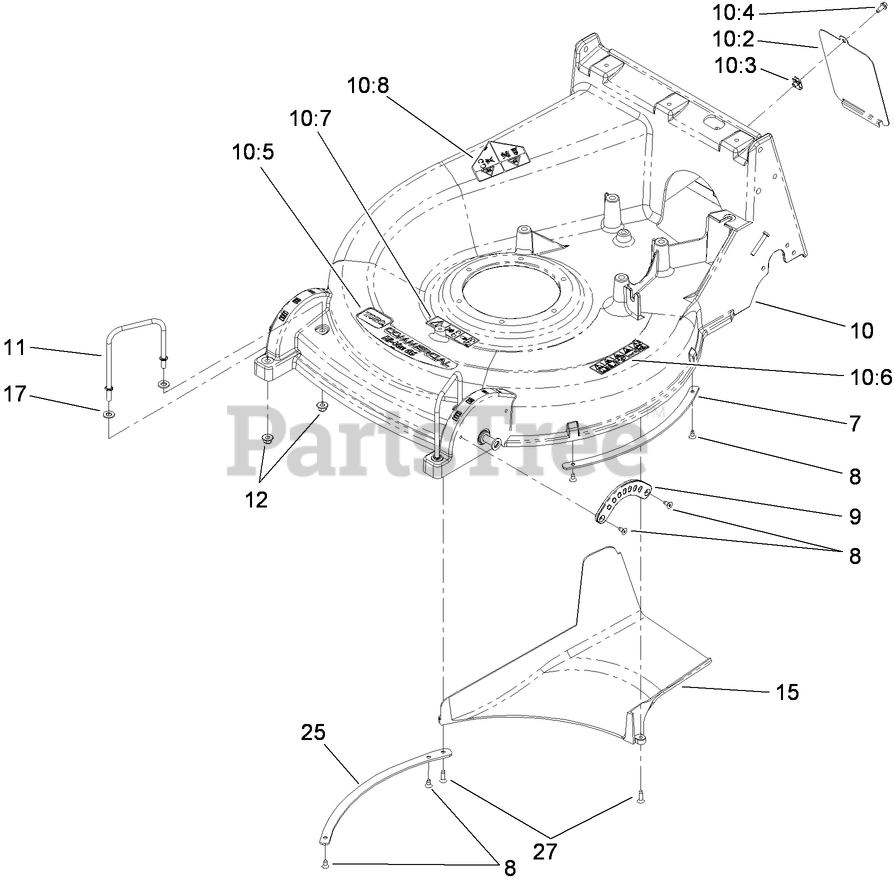

HOUSING ASSEMBLY Parts Diagram

  • Title

7

Toro 116-0059-03

PLATE-SKID, 10 GAGE

$29.99

$

Usually ships in 3-6 days

0

8

Toro 103-6145

SCREW

$5.49

$

In Stock, Qty 10

0

9

Toro 103-6460

QUADRANT-FRONT

$25.99

$

Usually ships in 3-6 days

0

10

Toro 115-4240

DECK ASM

$659.99

$

Usually ships in 3-6 days

0

10:2

Toro 116-0336

COVER-ACCESS, AXLE

$23.99

$

Usually ships in 3-6 days

0

10:3

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10:4

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

10:5

Toro 112-8709

DECAL

$65.99

$

Usually ships in 3-6 days

0

10:6

Toro 110-4978

DECAL-DANGER

$15.99

$

In Stock, only 2 left!

0

10:7

Toro 112-9028

DECAL-MISSING, COVER

$20.99

$

Usually ships in 3-6 days

0

10:8

Toro 112-8760

DECAL-DANGER

$10.99

$

In Stock, Qty 5

0

11

Toro 103-8875

HANDLE-DECK
(Superseded to 116-6944)

$28.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 116-1366

ASM, PLASTIC CHUTE W/BSHGS
(Superseded to 116-1405)

$72.99

$

In Stock, only 2 left!

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 116-1273-03

PLATE-SKID

$45.99

$

Usually ships in 3-6 days

0

27

Toro 116-0606

SCREW-TORX

$1.49

$

In Stock, Qty 6

0
