22200 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 290000001 - 290000500) (2009) BLADE DRIVE ASSEMBLY Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

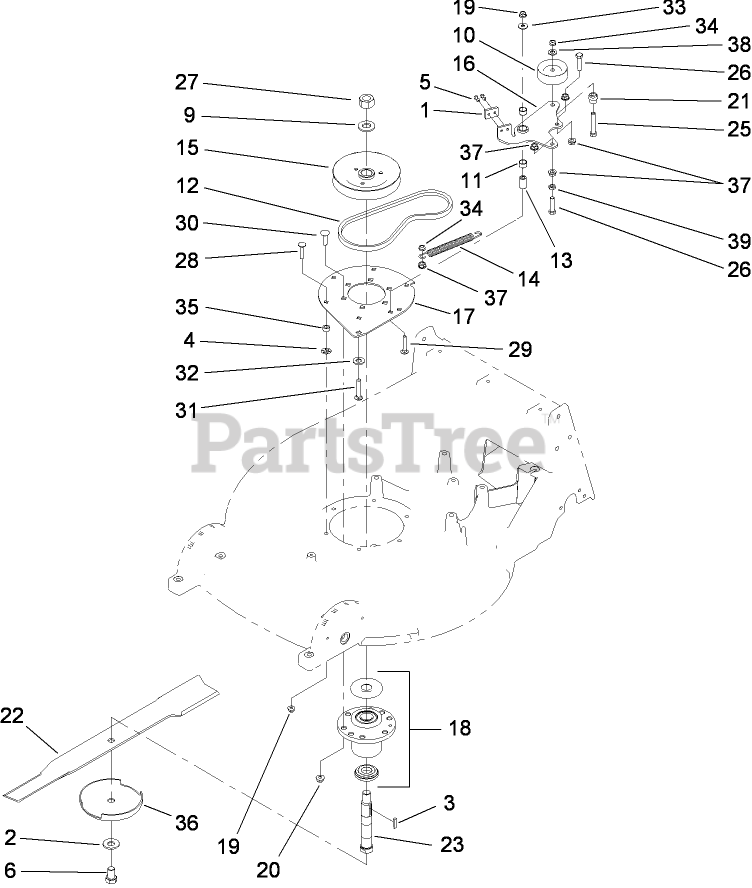

BLADE DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-323709

PAD-BRAKE

$28.99

$

In Stock, only 3 left!

0

2

Toro 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

3

Toro 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 14

0

4

Toro 78-7170

RING-RETAINING

$1.49

$

In Stock, Qty 17

0

5

Toro 103-0138

RIVET-POP

$1.49

$

In Stock, Qty 18

0

6

Toro 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 13

0

9

Toro 103-2802

WASHER

$5.49

$

In Stock, Qty 14

0

10

Toro 109-3546

PULLEY-IDLER

$66.99

$

Usually ships in 3-6 days

0

11

Toro 103-6111

BEARING

$7.99

$

In Stock, Qty 6

0

12

Toro 116-0861

Belt-Blade

$45.99

$

Usually ships in 3-6 days

0

13

Toro 103-7108

BUSHING-ARM, IDLER

$26.99

$

Usually ships in 3-6 days

0

14

Toro 103-7896

SPRING-BRAKE

$21.99

$

Usually ships in 3-6 days

0

15

Toro 103-7907

SHEAVE-SPINDLE

$47.99

$

Usually ships in 3-6 days

0

16

Toro 103-8217-03

ARM-IDLER

$96.99

$

Usually ships in 3-6 days

0

17

Toro 103-8219-03

PLATE-ADAPTER, HOUSING

$

$

Not available

18

Toro 107-4065

CUTTER HOUSING ASM

$159.99

$

In Stock, only 1 left!

0

19

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

22

Toro 109-0343

BLADE

$52.99

$

In Stock, Qty 10

0

23

Toro 109-2650

SHAFT-SPINDLE

$107.99

$

Usually ships in 3-6 days

0

25

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

0

28

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 6

0

29

Toro 3230-5

SCREW-CARR

$0.99

$

Usually ships in 3-6 days

0

30

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

31

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

32

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 3256-71

WASHER-FLAT

$1.49

$

In Stock, Qty 7

0

34

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

35

Toro 111044

SPACER

$1.49

$

In Stock, Qty 20+

0

36

Toro 67-7561

CUP-SCALP, ANTI

$43.99

$

In Stock, only 2 left!

0

37

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

38

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

39

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0
