22200 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 280000001 - 280999999) (2008) BAG AND DOOR ASSEMBLY Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

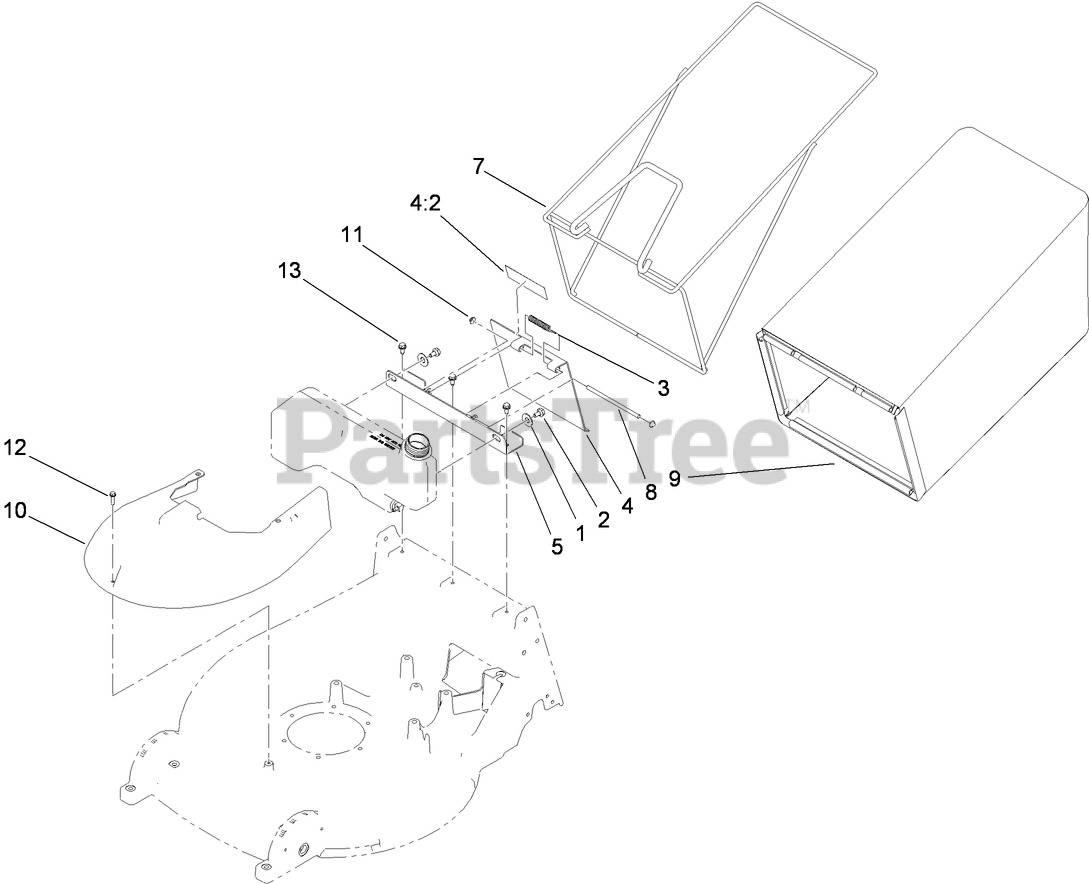

BAG AND DOOR ASSEMBLY Parts Diagram

  • Title

1

Toro 28-2450

WASHER-PLASTIC

$5.49

$

Usually ships in 3-6 days

0

2

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

3

Toro 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

4

Toro 112-9741

DOOR ASM

$

$

Not available

4:2

Toro 110-4977

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

5

Toro 103-8223-03

BRACKET-MOUNT, BAG/DOOR

$35.99

$

Usually ships in 3-6 days

0

7

Toro 109-2445-03

FRAME-BAG

$125.99

$

In Stock, only 1 left!

0

8

Toro 109-2453

ROD-PIVOT, DOOR

$9.99

$

Usually ships in 3-6 days

0

9

Toro 110-5029

GRASS BAG ASM

$232.99

$

Usually ships in 3-6 days

0

10

Toro 114-3413

COVER-SPINDLE

$54.99

$

Usually ships in 3-6 days

0

11

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

12

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
