22200 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 270001001 - 270999999) (2007) GEAR CASE AND PINION ASSEMBLY Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

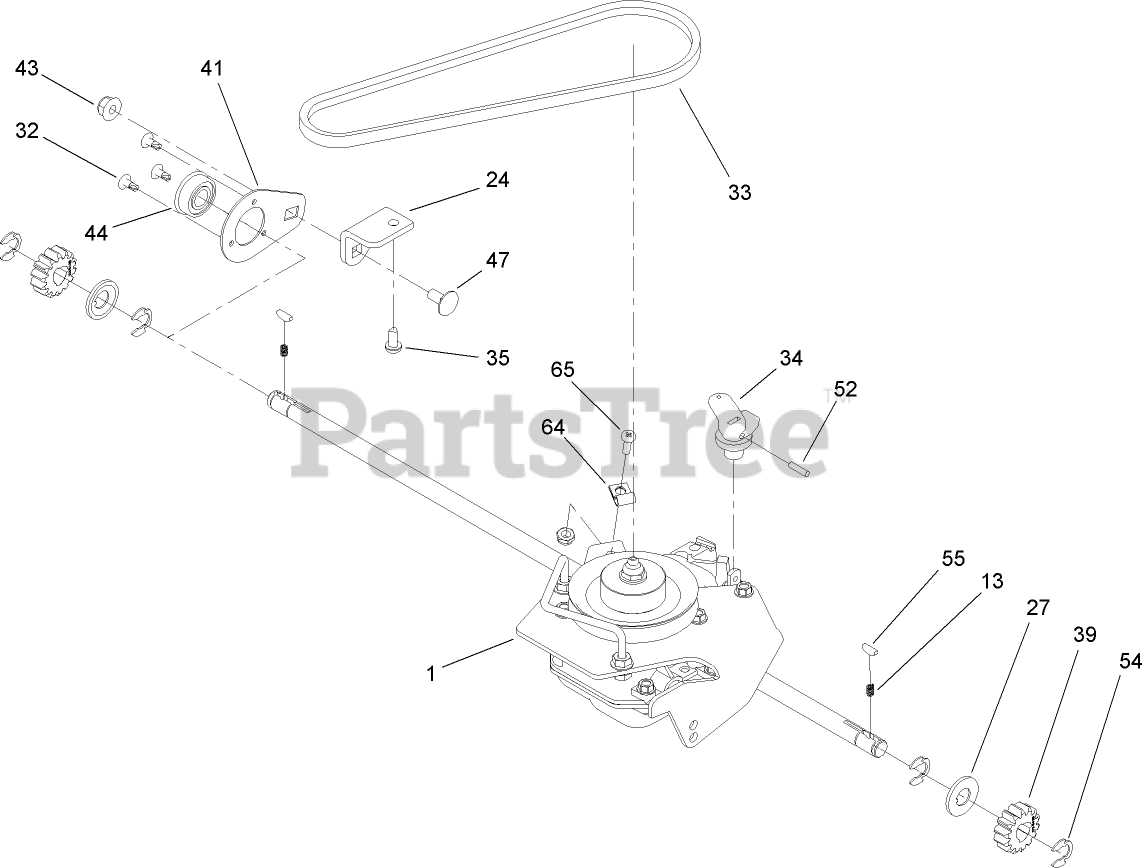

GEAR CASE AND PINION ASSEMBLY Parts Diagram

  • Title

1

Toro 109-3558

GEAR CASE ASM
(Superseded to 116-0786)

$708.99

$

Usually ships in 3-6 days

0

13

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 13

0

24

Toro 103-8237-03

BRACKET-BEARING

$14.99

$

Usually ships in 3-6 days

0

27

Toro 62-3830

WASHER-THRUST, OUTER

$3.99

$

In Stock, Qty 14

0

32

Toro 92-9665

SCREW-TAP

$6.99

$

In Stock, only 4 left!

0

33

Toro 103-6114

BELT-V, TRACTION

$49.99

$

Usually ships in 3-6 days

0

34

Toro 103-6138

LEVER-SHIFT

$11.99

$

Usually ships in 3-6 days

0

35

Toro 103-6159

SCREW-TP

$6.49

$

Usually ships in 3-6 days

0

39

Toro 103-6436

GEAR-PINION

$18.99

$

In Stock, only 4 left!

0

41

Toro 109-6612

PLATE-BEARING

$16.99

$

Usually ships in 3-6 days

0

43

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

44

Toro 251-180

BEARING-BALL
(Superseded to 116-7257)

$18.99

$

In Stock, only 1 left!

0

47

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

52

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 2 left!

0

54

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 10

0

55

Toro 612066

KEY

$2.49

$

In Stock, Qty 5

0

64

Toro 2412-32

R-CLAMP

$8.99

$

Usually ships in 3-6 days

0

65

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0
