22200 TE - Toro 66cm Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 270000001 - 270001000) (2007) FRONT WHEEL ASSEMBLY Parts Diagram

66cm Heavy-Duty Rear Bagger Walk-Behind Mower

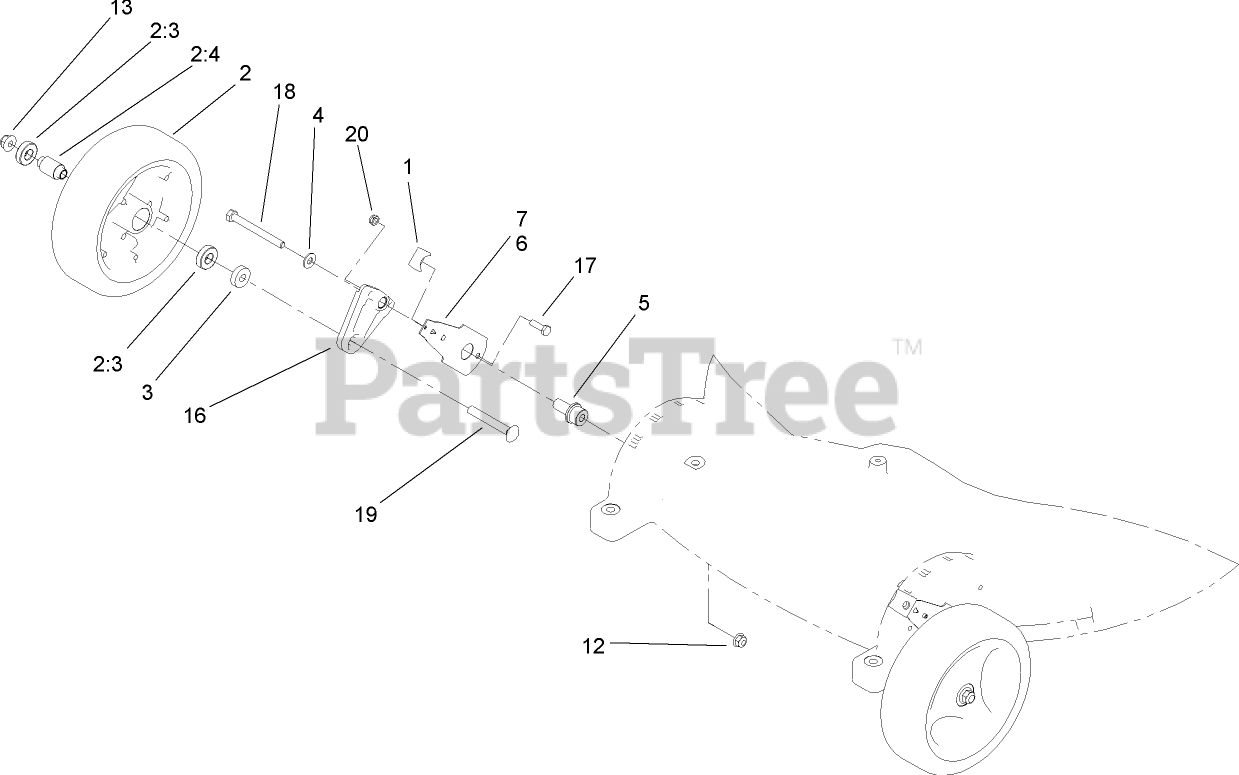

FRONT WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

2

Toro 112-8706

8 INCH WHEEL ASM

$145.99

$

Usually ships in 3-6 days

0

2:3

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

2:4

Toro 103-7649

SPACER-WHEEL, FRONT

$17.99

$

In Stock, only 2 left!

0

3

Toro 62-6660

SPACER

$1.49

$

In Stock, only 3 left!

0

4

Toro 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

5

Toro 103-5538

BUSHING-PIVOT, WHEEL

$22.99

$

In Stock, only 2 left!

0

6

Toro 103-5847

LH FRONT SPRING ARM ASM

$39.99

$

In Stock, Qty 5

0

7

Toro 103-5848

RH FRONT SPRING ARM ASM

$54.99

$

Usually ships in 3-6 days

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 109-2843

FRONT PIVOT ARM ASM
(Superseded to 116-4353)

$33.99

$

Usually ships in 3-6 days

0

17

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

19

Toro 3231-9

SCREW-CARR

$2.49

$

In Stock, Qty 7

0

20

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
