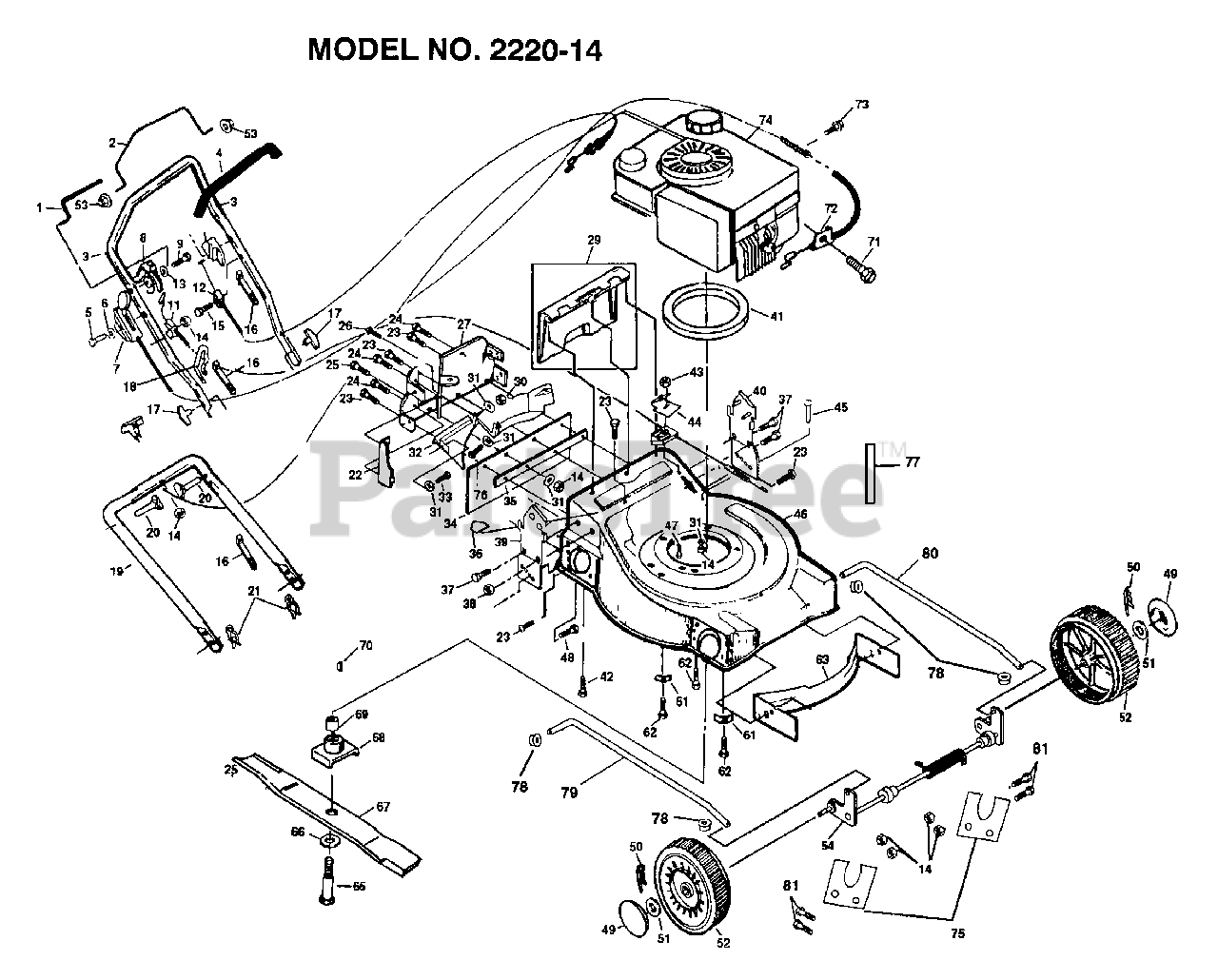

2220-14 - Electrolux/AYP Walk-Behind Mower REPAIR PARTS Parts Diagram

Walk-Behind Mower

REPAIR PARTS Parts Diagram

  • Title

1

Electrolux/AYP 850040

DR BAIL ASSY
(Superseded to 532850040)

$14.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 130184

ENGINE CNTRL BAR
(Superseded to 582946301)

$6.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 129203X479

UPPER HANDLE

$

$

Not available

4

Electrolux/AYP 850724

SUB= 155890
(Superseded to 585161003)

$

$

Not available

5

Electrolux/AYP 85692

SUB= 74250434

$

$

Not available

6

Electrolux/AYP 85723

WASHER PM
(Superseded to 532085723)

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 851707

SUB= 700654

$

$

Not available

8

Electrolux/AYP 850042

DR CONT ACTUATOR

$

$

Not available

9

Electrolux/AYP 36953

SCREW SELF TAP

$

$

Not available

10

Electrolux/AYP 850041

ZONE CONT ACTUATO

$

$

Not available

11

Electrolux/AYP 851915

SUB= 133056

$

$

Not available

12

Electrolux/AYP 851706

SUB= 532851706

$

$

Not available

13

Electrolux/AYP 50806

SUB= 19101216

$

$

Not available

14

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

15

Electrolux/AYP 53109

SUB= 74760424

$

$

Not available

16

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 63688

SUB= 136376
(Superseded to 532183724)

$

$

Not available

18

Electrolux/AYP 800357

SUB= 132001

$

$

Not available

19

Electrolux/AYP 85110X479

LOWER HNDL

$

$

Not available

20

Electrolux/AYP 58714

SUB= 131959

$

$

Not available

21

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 850247X479

"BAFFLE,SIDE"

$

$

Not available

23

Electrolux/AYP 54583

SCREW
(Superseded to 532054583)

$

$

Not available

24

Electrolux/AYP 36953

SCREW SELF TAP

$

$

Not available

25

Electrolux/AYP 86779

HEX SCREW
(Superseded to 532086779)

$

$

Not available

26

Electrolux/AYP 76399

"SCREW,HEX HEAD"

$

$

Not available

27

Electrolux/AYP 850009X424

SUB= 850009X479

$

$

Not available

29

Electrolux/AYP 129898

SUB= 146358

$

$

Not available

30

Electrolux/AYP 74189

NUT

$

$

Not available

31

Electrolux/AYP 85723

WASHER PM
(Superseded to 532085723)

$2.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 850061

BAFFLE

$

$

Not available

33

Electrolux/AYP 81276

SCREW
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

34

Electrolux/AYP 88366

SUB= 130444

$

$

Not available

35

Electrolux/AYP 88367X004

BACKING STRIP

$

$

Not available

36

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 55187

SCREW
(Superseded to 532055187)

$6.49

$

In Stock, Qty 6

0

38

Electrolux/AYP 63124

SUB= 73690500

$

$

Not available

39

Electrolux/AYP 851768X424

HNDL BRKT ASSY RIGHT GREEN

$

$

Not available

40

Electrolux/AYP 851769X424

HNDL BRKT ASSY LEFT GREEN

$

$

Not available

41

Electrolux/AYP 850988

ENGINE SPACER

$

$

Not available

42

Electrolux/AYP 55505

SCREW

$

$

Not available

43

Electrolux/AYP 74189

NUT

$

$

Not available

44

Electrolux/AYP 750346

SUB= 88615

$

$

Not available

45

Electrolux/AYP 53830

SUB= 72240404

$

$

Not available

46

Electrolux/AYP 130639

LAWN MOWER HOUSING
(Superseded to 539130639)

$6.99

$

In Stock, only 4 left!

0

47

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 66238

SUB= 72140505

$

$

Not available

49

Electrolux/AYP 77400

HUB CAP
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

50

Electrolux/AYP 85179

RETAINER CLIP PM
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 52160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 850957

WHEEL&TIRE ASSY
(Superseded to 532146248)

$

$

Not available

53

Electrolux/AYP 129364

PALNUT
(Superseded to 582946101)

$2.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 851717X004

FRONT AXLE ASSY

$36.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 851201X004

WASHER

$

$

Not available

62

Electrolux/AYP 850999

SCREW
(Superseded to 532850999)

$7.49

$

In Stock, only 2 left!

0

63

Electrolux/AYP 851804X479

SUB= 144964

$

$

Not available

65

Electrolux/AYP 850859

BOLT

$

$

Not available

66

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 103524X

"BLADE 22"" PM"

$

$

Not available

68

Electrolux/AYP 801511X004

"ADAPTOR,BLADE"

$

$

Not available

69

Electrolux/AYP 103113X

SPACER PM

$

$

Not available

70

Electrolux/AYP 87677

HI PRO KEY PM
(Superseded to 532087677)

$

$

Not available

71

Electrolux/AYP 107488X

SCREW

$

$

Not available

72

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

73

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

74

REFER TO IMAGE

$

$

Not available

75

Electrolux/AYP 851807X004

RETAINER PLATE

$

$

Not available

76

Electrolux/AYP 84026

HEX THD ROLL SCR

$

$

Not available

77

Electrolux/AYP 129925

"SEAL,REAR DOOR"

$

$

Not available

78

Electrolux/AYP 83731

PUSH ON SPEED NUT
(Superseded to 532083731)

$4.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 851714X479

TIE ROD RH

$8.99

$

Usually ships in 3-10 days

0

80

Electrolux/AYP 851713X479

NLA

$

$

Not available

81

Electrolux/AYP 83620

SUB= 86988

$

$

Not available

Electrolux/AYP 129078

OPERATORS MANUAL

$

$

Not available

Electrolux/AYP 129132

"MANUAL,PARTS "

$5.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 129317

DECAL, HOUSING

$

$

Not available
