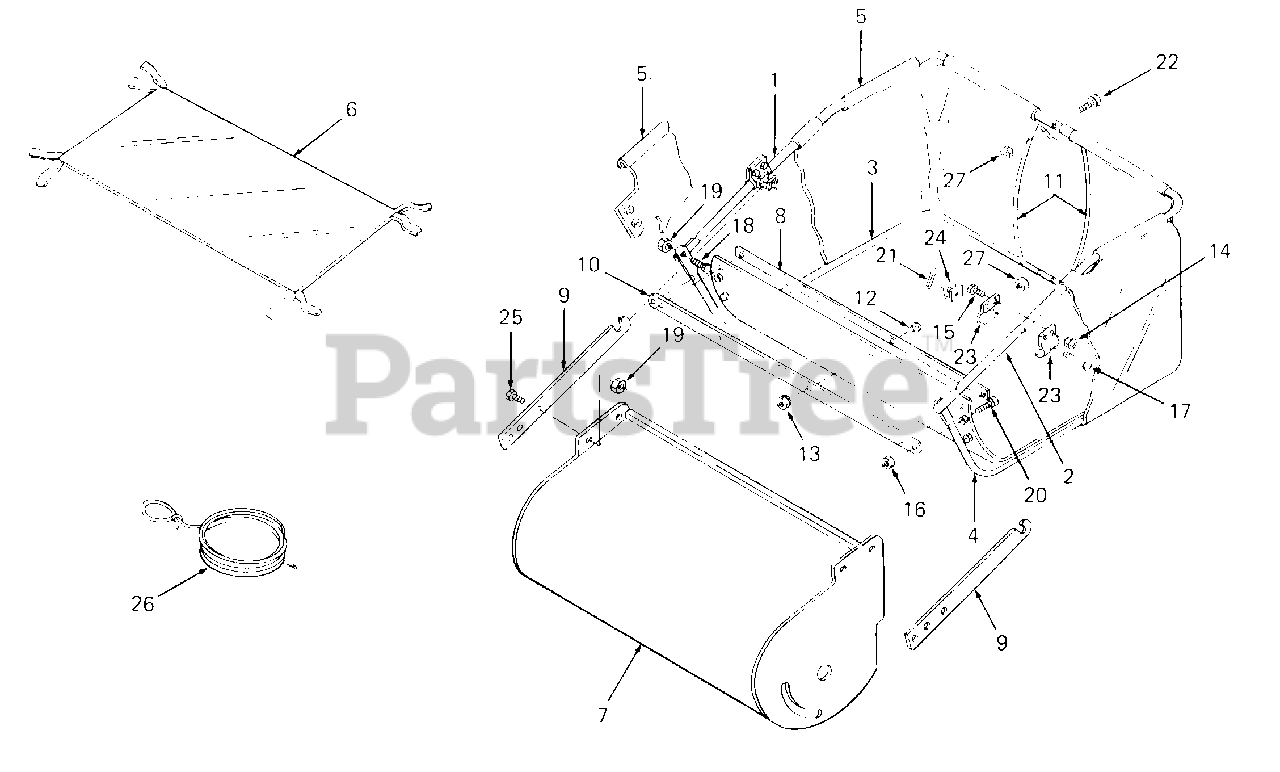

222 (190-222-100) - Cub Cadet 38" Lawn Sweeper att Bag and Hopper Parts Diagram

38" Lawn Sweeper

Bag and Hopper Parts Diagram

  • Title

1

Cub Cadet AF-44968

Tube, Upper Hopper RH

$

$

Not available

2

Cub Cadet AF-44969

Tube, Upper Hopper LH

$

$

Not available

3

Cub Cadet AF-43968

Tube, Lower Hopper RH

$

$

Not available

4

Cub Cadet AF-43969

Tube, Lower Hopper LH

$

$

Not available

5

Cub Cadet AF-44971

Bag, Hopper

$

$

Not available

6

Cub Cadet AF-43687

Screen, Wind, 38

$

$

Not available

7

Cub Cadet AF-62864

Sweeper Housing Assy

Variations

Cub Cadet AF-62864-0498

HOUSING ASSEMBLY SWEEP(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

8

Cub Cadet AF-23343

Retainer, Skirt

$

$

Not available

9

Cub Cadet AF-23595

Arm, Bag Mount

$

$

Not available

10

Cub Cadet AF-23352

Strap, Bag Frame

$

$

Not available

11

Cub Cadet AF-43926

Rod, Hopper Support

$27.99

$

In Stock, only 2 left!

0

12

Cub Cadet AF-43346

Screw, Truss Hd, Slotted #10-32 x 5/8 Lg

$2.99

$

Usually ships in 3-6 days

0

13

Cub Cadet AF-43662

Nut, Hex Lock, #10-32 Thd

$

$

Not available

14

Cub Cadet 712-0158

Nut, Hex Lock, 5/16-18 Thd
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

15

Cub Cadet 710-3008

Bolt, Hex, 5/16-18 x 3/4 Lg

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0107

Nut, Hex Lock, 1/4-20 Thd
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

17

Cub Cadet AF-43513

Pin, Clevis, 3/8 Dia x 3"

$

$

Not available

18

Cub Cadet 710-3000

Bolt, Hex, 3/8-16 x 3/4 Lg
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

19

Cub Cadet 712-0375

Nut, Hex Lock, 3/8-16 Thd

$4.49

$

In Stock, Qty 6

0

20

Cub Cadet 710-0106

Bolt, Hex, 1/4-20 x 1.25 Lg

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia x 3/4 Lg

$4.99

$

In Stock, Qty 14

0

22

Cub Cadet AF-43978

Bolt, Curved Head, 1/4-20 x 1.0 Lg

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet AF-23331

Clamp, Hopper Mount

$

$

Not available

24

Cub Cadet AF-23354

Clevis, Bag Retainer

$

$

Not available

25

Cub Cadet 710-3005

Bolt, Hex, 3/8-16 x 1-1/4 Lg

$3.99

$

In Stock, Qty 9

0

26

Cub Cadet AF-43737

Rope, Hopper

$

$

Not available

27

Cub Cadet 712-0107

Nut, Hex Lock, 1/4-20 Thd
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0
