22198 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) FUEL TANK ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

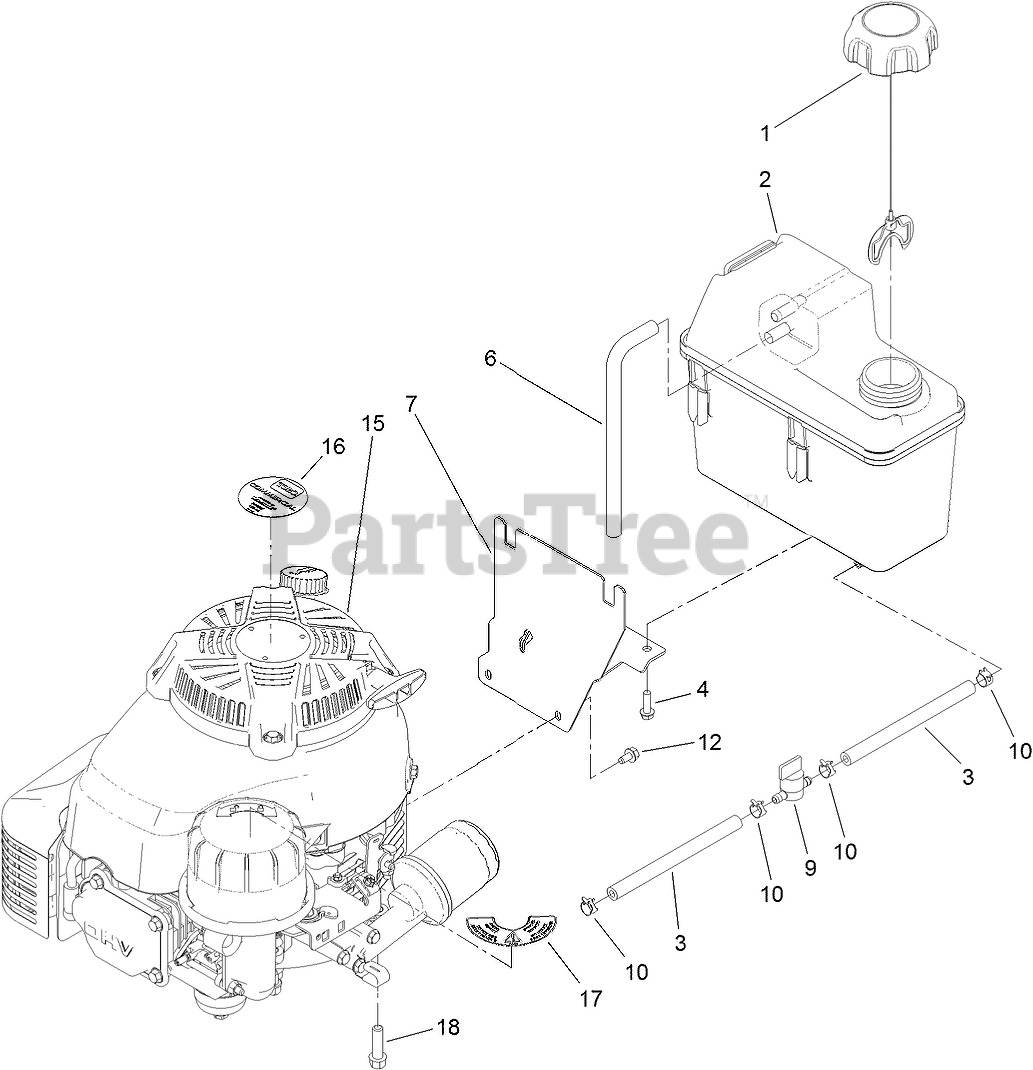

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 109-6776

CAP-RATCHET, TETHERED
(Superseded to 137-4127)

$22.99

$

In Stock, only 3 left!

0

2

Toro 114-0280

TANK-FUEL

$140.99

$

In Stock, only 4 left!

0

3

Toro 107-0588

HOSE-FUEL

$5.49

$

In Stock, only 3 left!

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

6

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

7

Toro 115-0954-03

MOUNT-TANK

$42.99

$

In Stock, only 3 left!

0

9

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 8

0

10

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

15

Toro 121-1400

ENGINE-KAWASAKI, FJ180V-BM07-M

$

$

Not available

16

Toro 110-0520

DECAL

$30.99

$

Usually ships in 3-6 days

0

17

Toro 114-3415

DECAL

$6.99

$

In Stock, only 1 left!

0

18

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0
