Toro 22197 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) HANDLE ASSEMBLY Parts Lookup with Diagrams

1

Toro 98-2000-03

HANDLE

$124.99

$

Usually ships in 3-6 days

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

3

Toro 114-2775

GUIDE-ROPE

$10.99

$

Usually ships in 3-6 days

5

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

6

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

7

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

8

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

9

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

12

Toro 74-1741

BRACKET-ADJUSTMENT, TRACTION

$24.99

$

Usually ships in 3-6 days

13

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

14

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

16

Toro 100-3298-03

LATCH-HANDLE, LH

$19.99

$

In Stock, only 1 left!

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

18

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

19

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

20

Toro 322-11

SCREW-HH

(Superseded to 120-9738) 

$1.49

$

In Stock, Qty 20+

21

Toro 108-2645

CONTROL-HEAD, THROTTLE

$116.99

$

In Stock, only 1 left!

22

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

23

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

24

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

26

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

27

Toro 106-0690

Decal-Traction

$10.99

$

In Stock, Qty 10

28

Toro 77-5270

LEVER-CONTROL

$28.99

$

Usually ships in 3-6 days

29

Toro 61-8270-03

BAR-CONTROL

$103.99

$

Usually ships in 3-6 days

30

Toro 114-3483

CABLE-BRAKE, CONTROL

$55.99

$

In Stock, only 1 left!

31

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

32

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

33

Toro 48-2810

ROD-SUPPORT, BAG

$28.99

$

Usually ships in 3-6 days

34

Toro 100-3297-03

LATCH-HANDLE, RH

$9.49

$

In Stock, Qty 5

35

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

36

Toro 74-1791

CABLE-TRACTION

$51.99

$

In Stock, only 1 left!

37

Toro 106-0888

THROTTLE CABLE ASM

$19.99

$

In Stock, only 2 left!

38

Toro 74-1970

DECAL-POSITION, GEAR

$7.49

$

In Stock, Qty 6

39

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

41

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

42

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

43

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

47

Toro 94-9422

SCREW-SHOULDER

$2.99

$

In Stock, only 2 left!

48

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

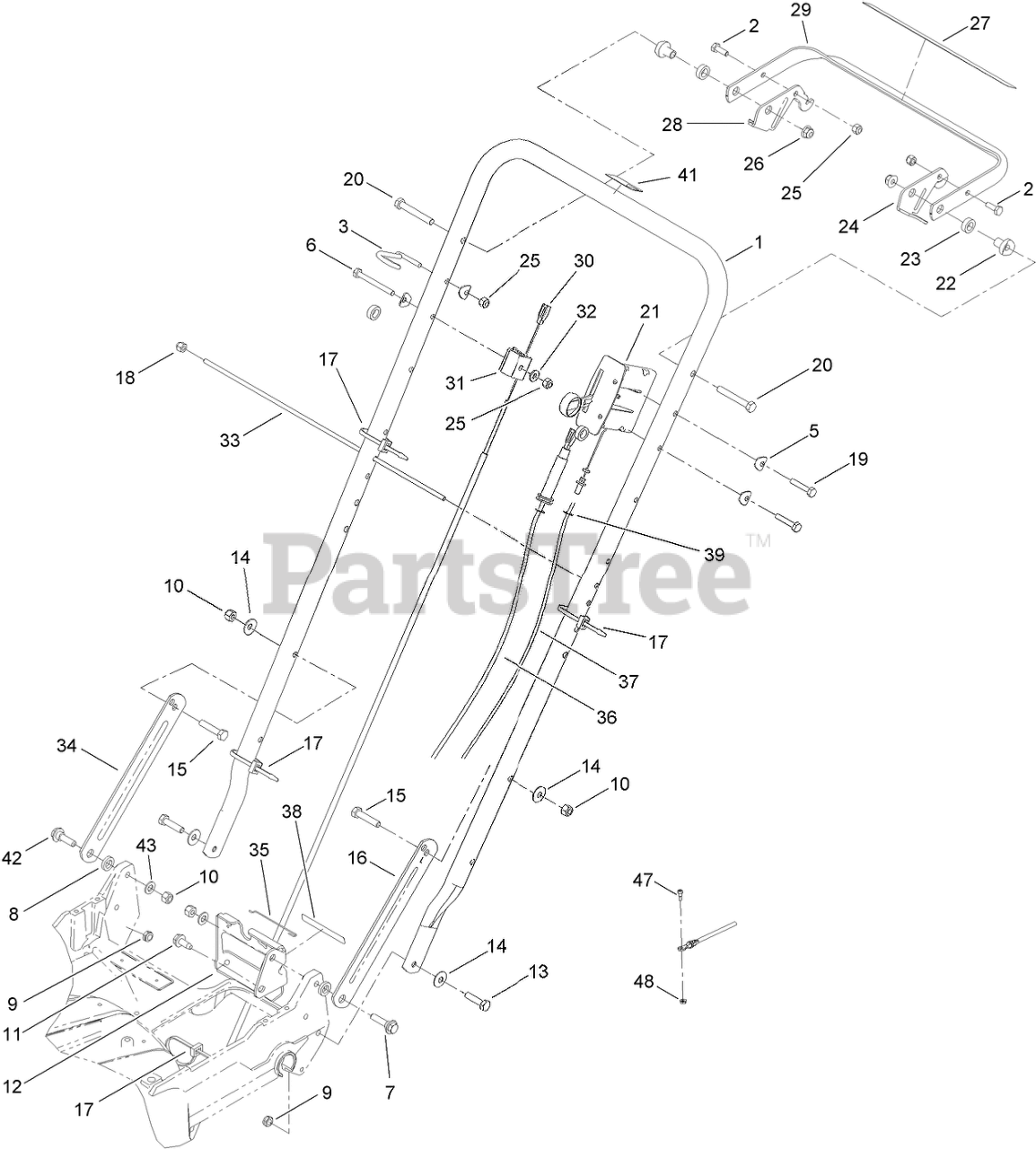

22197 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) HANDLE ASSEMBLY Parts Diagram

HANDLE ASSEMBLY Parts Diagram
