22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) RECOIL STARTER ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

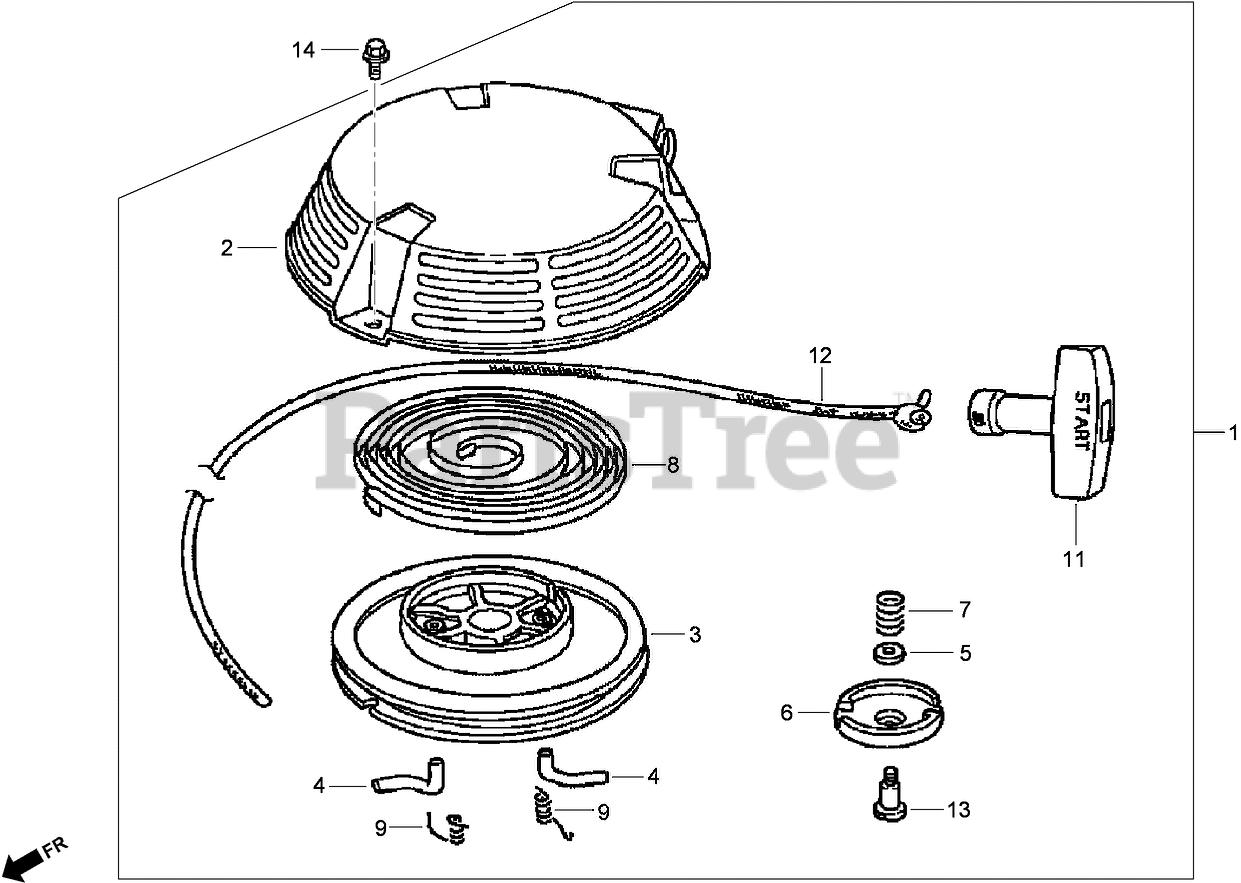

RECOIL STARTER ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

  • Title

1

Honda 28400-Z1V-003ZA

RECOIL STARTER ASM (N H1) (BLACK)
(Superseded to 28400-Z1V-013ZA)

Note: Obtain parts from www.honda-engines.com

$86.99

$

In Stock, only 1 left!

0

2

Honda 28410-Z1V-003ZB

CASE-STARTER, RECOIL (N H1) (BLACK)

Note: Obtain parts from www.honda-engines.com

$113.99

$

Usually ships in 3-6 days

0

3

Honda 28420-Z1V-003

REEL-STARTER, RECOIL (BLACK)

Note: Obtain parts from www.honda-engines.com

$33.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-801

RATCHET-STARTER

Note: Obtain parts from www.honda-engines.com

$6.49

$

In Stock, Qty 6

0

5

Honda 28431-ZH8-801

PLATE-FRICTION

Note: Obtain parts from www.honda-engines.com

$5.49

$

Usually ships in 3-6 days

0

6

Honda 28433-ZH8-801

GUIDE-RATCHET

Note: Obtain parts from www.honda-engines.com

$8.99

$

Usually ships in 3-6 days

0

7

Honda 28441-ZH8-801

SPRING-FRICTION

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

8

Honda 28442-ZH8-003

SPRING-STARTER, RECOIL

Note: Obtain parts from www.honda-engines.com

$18.99

$

In Stock, Qty 10

0

9

Honda 28443-ZH8-801

SPRING-RETURN

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 1 left!

0

11

Honda 28461-ZH8-003

GRIP-STARTER
(Superseded to 28461-ZH8-013)

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, Qty 8

0

12

Honda 28462-ZH8-003

ROPE-STARTER, RECOIL

Note: Obtain parts from www.honda-engines.com

$12.99

$

In Stock, only 4 left!

0

13

Honda 90003-ZH8-801

SCREW-SETTING

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 2 left!

0

14

Honda 95701-06008-00

BOLT-FLANGE (6X8)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 20+

0
