22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) FLYWHEEL ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

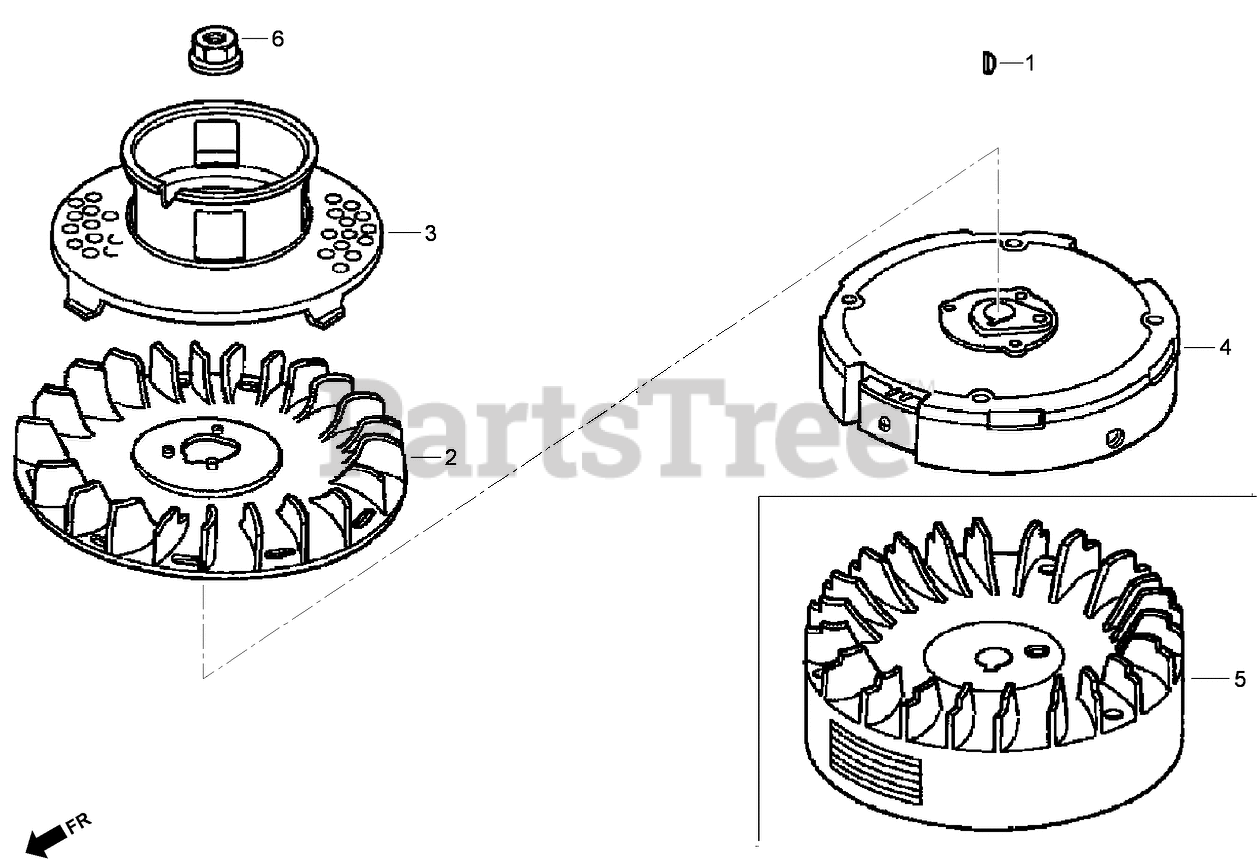

FLYWHEEL ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

  • Title

1

Honda 13331-357-000

KEY-WOODRUFF, SPECIAL (25X18)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 7

0

2

Honda 19511-Z1T-000

FAN-COOLING (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$24.99

$

Usually ships in 3-6 days

0

3

Honda 28450-Z1V-000

PULLEY-STARTER

Note: Obtain parts from www.honda-engines.com

$34.99

$

Usually ships in 3-6 days

0

4

Honda 31110-Z1V-003

FLYWHEEL (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$146.99

$

Usually ships in 3-6 days

0

5

Honda 31110-Z1V-810

FLYWHEEL (BRAKE) (Engine Serial No. Up To 1036455)
(Superseded to 31110-Z1V-811)

Note: Obtain parts from www.honda-engines.com

$168.99

$

Usually ships in 3-6 days

0

6

Honda 90201-878-003

NUT-SPECIAL (14 mm)

Note: Obtain parts from www.honda-engines.com

$7.99

$

Usually ships in 3-6 days

0
