22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) LABEL AND TOOL ASSEMBLIES HONDA GXV160UH2 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

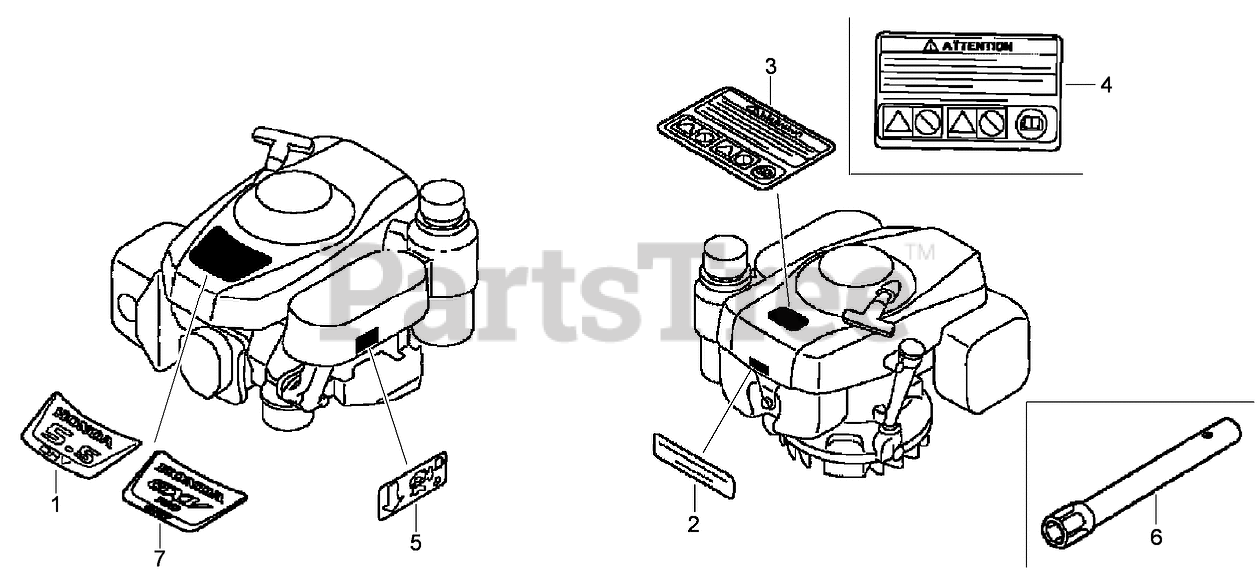

LABEL AND TOOL ASSEMBLIES HONDA GXV160UH2 T1AH Parts Diagram

  • Title

1

Toro 87101-Z1V-000

MARK, EMBLEM (SERIAL NUMBERS UP TO 1036455)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

2

Honda 87504-Z1V-000

MARK-MANUFACTURER
(Superseded to 87504-Z1V-010)

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

3

Toro 87516-Z4N-000

MARK-CAUTION, OPERATOR (ENGLISH)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Toro 87516-Z4N-810

MARK-CAUTION, OPERATOR (FRENCH)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

4

Honda 87516-Z4N-800

MARK-CAUTION, OPERATOR (PICTOGRAPH)
(Superseded to 87516-Z4N-801)

Note: Obtain parts from www.honda-engines.com

$6.99

$

Usually ships in 3-6 days

0

5

Honda 87524-Z1V-000

MARK-CAUTION, FUEL PETCOCK

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

6

Honda 99004-21003

Wrench-Box (P21)

Note: Obtain parts from www.honda-engines.com

$5.99

$

Usually ships in 3-6 days

0

7

Toro 87101-Z1V-010

MARK, EMBLEM (GXV160) (SERIAL NUMBERS FROM 1036456)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable
