22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FUEL TANK ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

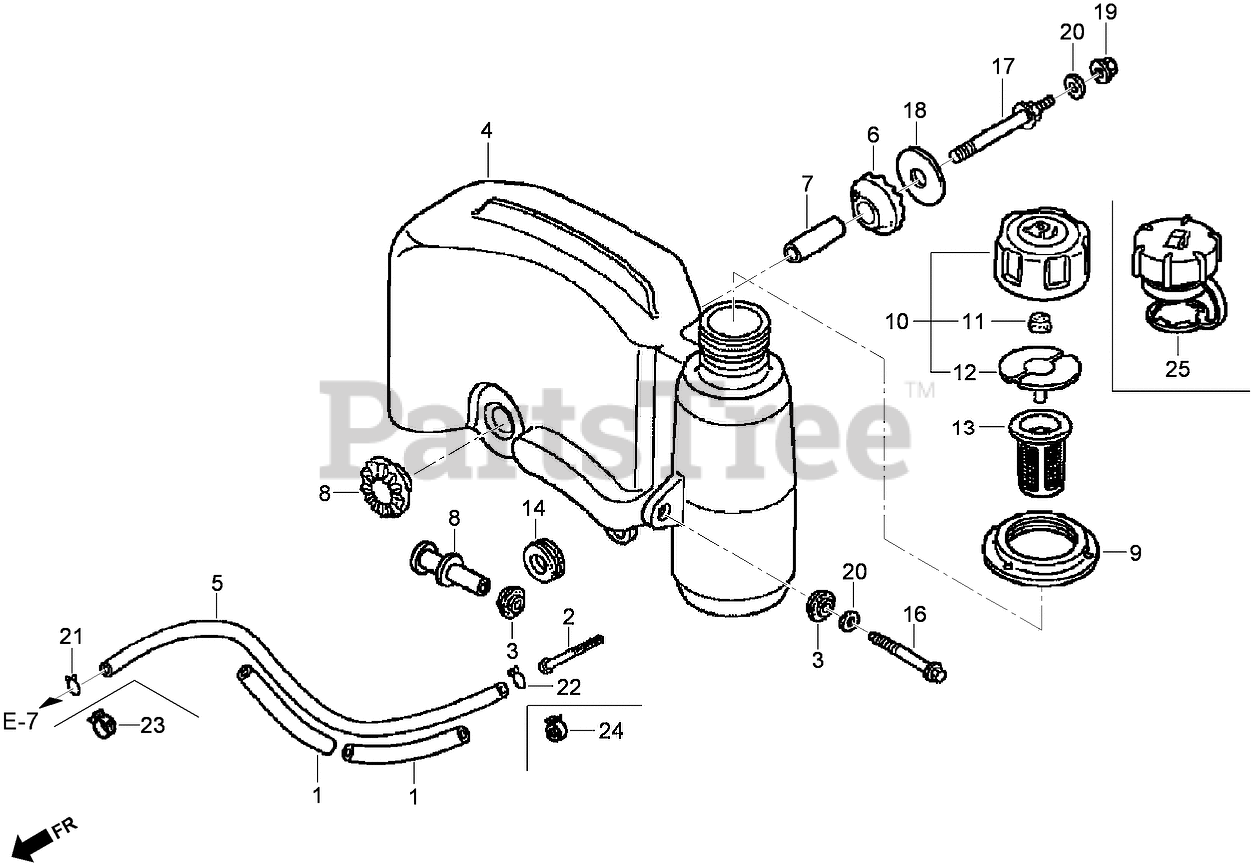

FUEL TANK ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SUPPORTER-RUBBER (107 mm)

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, Qty 12

0

2

Honda 16952-Z1V-000

FILTER-FUEL

Note: Obtain parts from www.honda-engines.com

$7.99

$

In Stock, only 2 left!

0

3

Honda 17506-ZE7-000

RUBBER-SETTING, TANK

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, Qty 12

0

4

Honda 17510-Z1V-010

TANK-FUEL (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$98.99

$

Usually ships in 3-6 days

0

4

Honda 17510-Z4P-000

TANK-FUEL (Engine Serial No. From 1036456)
(Superseded to 17510-Z4P-810)

Note: Obtain parts from www.honda-engines.com

$216.99

$

Usually ships in 3-6 days

0

5

Honda 17512-ZE7-000

TUBE-FUEL (Engine Serial No. Up To 1011283)
(Superseded to 17512-ZE7-010)

Note: Obtain parts from www.honda-engines.com

$14.99

$

Usually ships in 3-6 days

0

5

Toro 17512-Z4P-003

TUBE-FUEL (FKM) (Engine Serial No. From 1011284)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

6

Honda 17516-896-700

RUBBER B-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$9.49

$

In Stock, Qty 12

0

7

Honda 17518-Z1V-000

COLLAR-SET, TANK

Note: Obtain parts from www.honda-engines.com

$8.49

$

Usually ships in 3-6 days

0

8

Honda 17519-Z1V-000

COLLAR-TANK

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, only 1 left!

0

9

Honda 17532-Z1V-000

RUBBER-MOUNTING, TANK (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

10

Honda 17620-ZL8-013

FUEL TANK CAP ASM (Engine Serial No. Up To 1036455)
(Superseded to 17620-ZL8-023)

Note: Obtain parts from www.honda-engines.com

$5.99

$

In Stock, Qty 16

0

11

Honda 17622-888-010

SPONGE-BREATHER, FUEL CAP (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 4 left!

0

12

Honda 17624-ZE7-000

GASKET-CAP, FUEL (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$5.49

$

Usually ships in 3-6 days

0

13

Honda 17636-Z1V-010

GAUGE-LEVEL, FUEL

Note: Obtain parts from www.honda-engines.com

$6.99

$

Usually ships in 3-6 days

0

14

Honda 80103-MG2-000

CUSHION-FENDER, R R

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 2 left!

0

16

Honda 90014-Z1V-000

BOLT-FLANGE (6X47) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 9

0

17

Honda 90016-Z1V-000

BOLT-STAY, TANK

Note: Obtain parts from www.honda-engines.com

$9.49

$

Usually ships in 3-6 days

0

18

Honda 90455-896-700

WASHER-MOUNTING, TANK

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 2 left!

0

19

Honda 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

20

Honda 94103-06000

WASHER-PLAIN (6 mm)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 16

0

21

Honda 95002-02080

CLIP-TUBE (B8) (Engine Serial No. Up To 1011283)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 20+

0

22

Honda 95002-70000

CLIP-TUBE (C11) (Engine Serial No. Up To 1011283)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 5

0

23

Honda 95002-40800-08

CLAMP-TUBE (D8) (Engine Serial No. From 1011284)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 4 left!

0

24

Honda 95002-41050-08

CLAMP-TUBE (D105) (Engine Serial No. From 1011284)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 7

0

25

Honda 17620-Z0J-800

FUEL TANK CAP ASM (Engine Serial No. From 1036456)
(Superseded to 17620-Z8B-800)

Note: Obtain parts from www.honda-engines.com

$23.99

$

In Stock, Qty 7

0
