22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CYLINDER HEAD ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

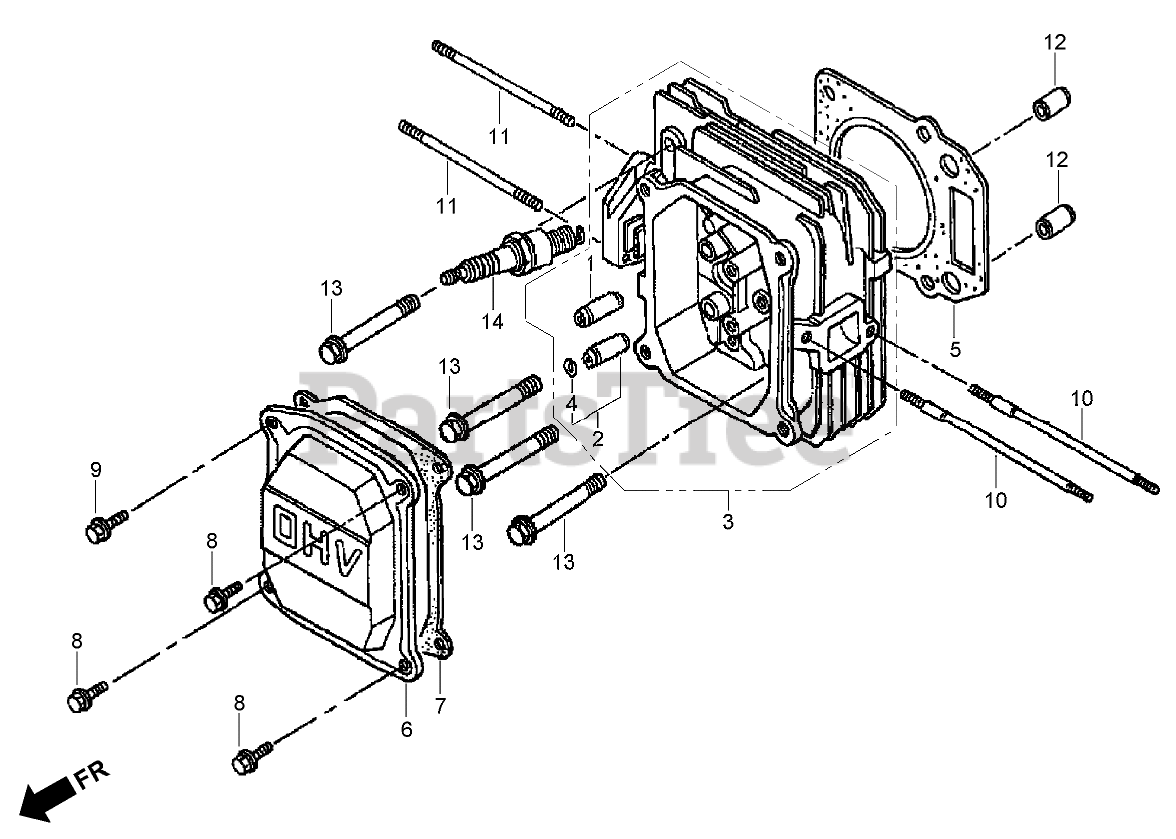

CYLINDER HEAD ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

  • Title

1

Honda 12204-ZE1-306

GUIDE-VALVE (O S)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Honda 12205-ZE1-315

GUIDE-VALVE, EXHAUST (O S)

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, only 3 left!

0

3

Honda 12200-ZE7-405

HEAD-CYLINDER

Note: Obtain parts from www.honda-engines.com

$205.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

CLIP-GUIDE, VALVE

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 18

0

5

Honda 12251-ZE7-000

GASKET-HEAD, CYLINDER

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, only 1 left!

0

6

Honda 12311-ZG9-800

Cover-Head

Note: Obtain parts from www.honda-engines.com

$9.99

$

In Stock, only 2 left!

0

7

Honda 12391-ZE7-M10

GASKET-COVER, CYLINDER HEAD

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, Qty 9

0

8

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200) (Engine Serial No. Up To 1020657)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

8

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200) (Engine Serial No. From 1020658)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 4 left!

0

9

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 4 left!

0

10

Honda 90043-ZE6-000

BOLT-STUD (6X109)

Note: Obtain parts from www.honda-engines.com

$7.49

$

In Stock, only 2 left!

0

11

Honda 90048-ZC3-000

BOLT-STUD (6X85)

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 3 left!

0

12

Honda 94301-10160

PIN-DOWEL (10X16)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

13

Honda 95701-08050-00

BOLT-FLANGE (8X50)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 5

0

14

Honda 98079-54846

SPARK PLUG (B P R4E S) (N G K)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 11

0

14

Honda 98079-54855

SPARK PLUG (W14E P R-U) (DENSO)

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 3 left!

0

14

Honda 98079-55846

SPARK PLUG (B P R 5E S) (N G K)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 20+

0

14

Honda 98079-55855

SPARK PLUG (W16E P R-U) (DENSO)

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

14

Honda 98079-56846

SPARK PLUG (B P R 6E S) (N G K)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 20+

0

14

Honda 98079-56855

SPARK PLUG (W20E P R-U) (DENSO)

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 1 left!

0
