22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CRANKSHAFT AND PISTON ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

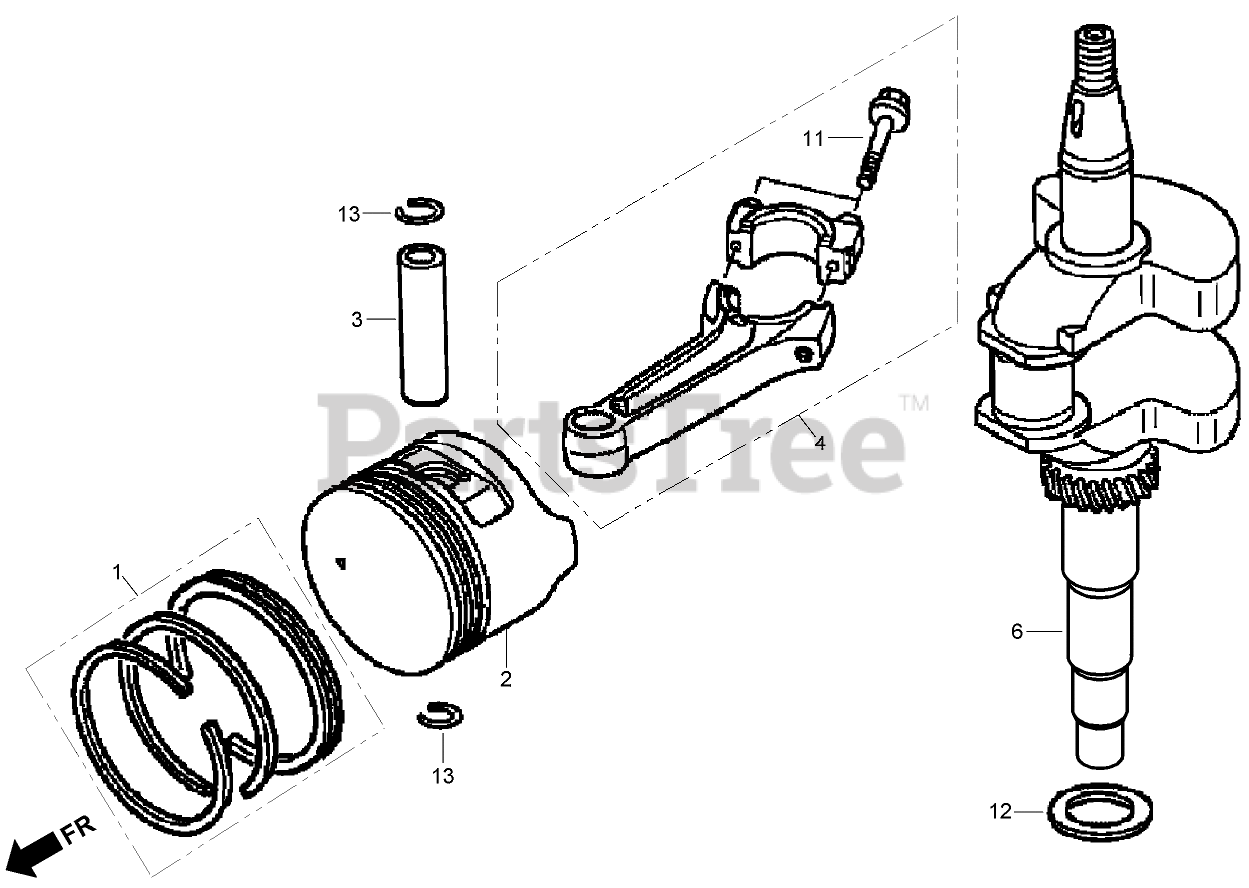

CRANKSHAFT AND PISTON ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

  • Title

1

Honda 13010-ZL0-003

PISTON RING SET (STD) (TEIKOKU) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$54.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZL0-004

PISTON RING SET (STD) (NIPPON) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$35.99

$

In Stock, only 2 left!

0

1

Honda 13010-Z4K-004

PISTON RING SET (STD) (TEIKOKU) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$32.99

$

In Stock, only 1 left!

0

1

Honda 13010-Z4P-003

PISTON RING SET (STD) (RIKEN) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$32.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZL0-003

PISTON RING SET (O S 0.25) (TEIKOKU) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZL0-004

PISTON RING SET (O S 0.25) (NIPPON) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

1

Honda 13011-Z4K-004

PISTON RING SET (O S 0.25) (TEIKOKU) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

1

Honda 13011-Z4P-003

PISTON RING SET (O S 0.25) (RIKEN) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZL0-003

PISTON RING SET (O S 0.50) (TEIKOKU) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZL0-004

PISTON RING SET (O S 0.50) (NIPPON) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

1

Honda 13012-Z4K-004

PISTON RING SET (O S 0.50) (TEIKOKU) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

1

Honda 13012-Z4P-003

PISTON RING SET (O S 0.50) (RIKEN) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$34.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-003

PISTON RING SET (0.75) (TEIKOKU) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$60.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-004

PISTON RING SET (0.75) (NIPPON) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$39.99

$

In Stock, only 1 left!

0

1

Honda 13013-Z4K-004

PISTON RING SET (0.75) (TEIKOKU) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

1

Honda 13013-Z4P-003

PISTON RING SET (0.75) (RIKEN) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Honda 13101-ZH8-010

PISTON (STD) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$45.99

$

In Stock, only 1 left!

0

2

Honda 13101-Z1T-010

PISTON (STD) (JIALING-HONDA) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$40.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZE7-020

PISTON (O S 0.25) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$47.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZH8-020

PISTON (O S 0.25) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Honda 13103-ZE7-020

PISTON (O S 0.50) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$50.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZH8-020

PISTON (O S 0.50) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Honda 13104-ZE7-020

PISTON (0.75) (Engine Serial No. Up To 1036455)

Note: Obtain parts from www.honda-engines.com

$47.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZH8-020

PISTON (0.75) (Engine Serial No. From 1036456)

Note: Obtain parts from www.honda-engines.com

$

$

Not available

3

Honda 13111-Z1T-000

PIN-PISTON

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z1V-000

CONNECTING ROD ASM
(Superseded to 13200-Z1V-600)

Note: Obtain parts from www.honda-engines.com

$130.99

$

In Stock, only 1 left!

0

6

Honda 13310-ZE7-V20

CRANKSHAFT

Note: Obtain parts from www.honda-engines.com

$206.99

$

In Stock, only 1 left!

0

11

Honda 90001-ZE1-000

BOLT-ROD, CONNECTING

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 2 left!

0

12

Honda 90401-ZE7-W00

WASHER-THRUST (25.6 mm)

Note: Obtain parts from www.honda-engines.com

$6.99

$

In Stock, only 2 left!

0

13

Honda 90551-ZE1-000

CLIP-PIN, PISTON (18 mm)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 20+

0
