22196 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CONTROL ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

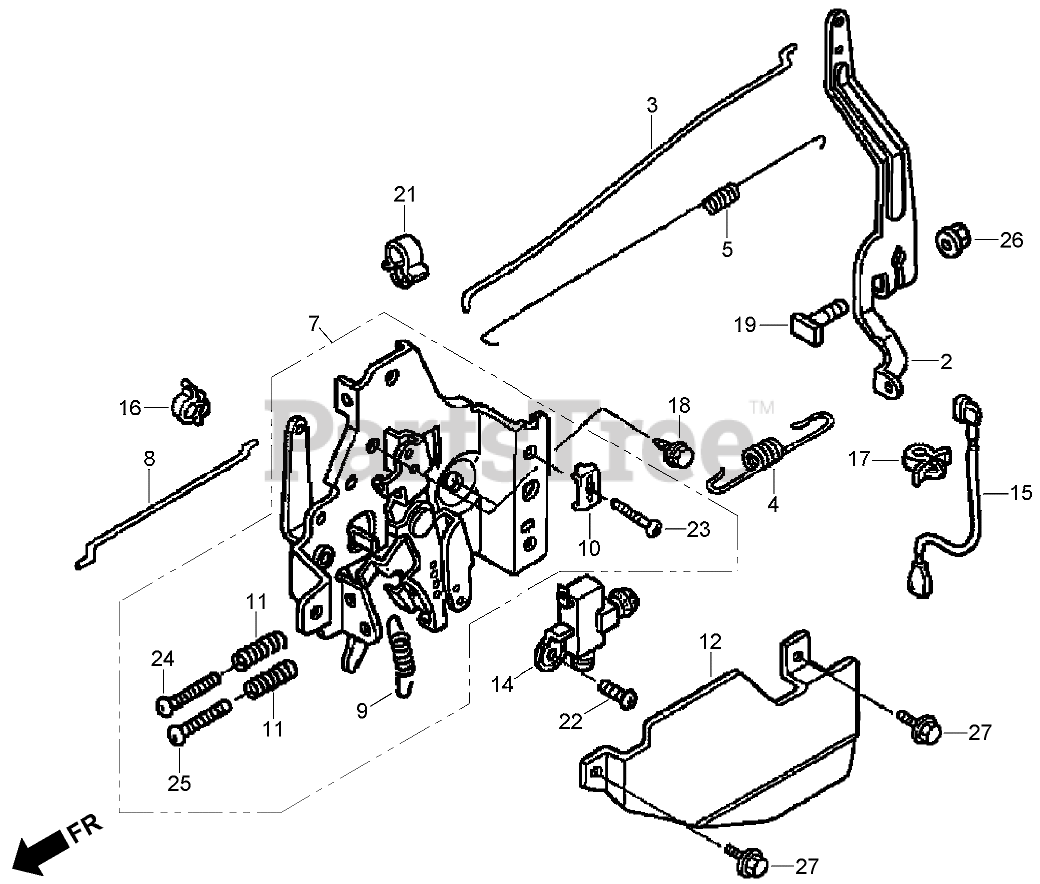

CONTROL ASSEMBLY HONDA GXV160UH2 T1AH Parts Diagram

  • Title

2

Honda 16551-ZE7-000

Arm-Governor

Note: Obtain parts from www.honda-engines.com

$19.99

$

Usually ships in 3-6 days

0

3

Honda 16555-ZE7-000

Rod-Governor

Note: Obtain parts from www.honda-engines.com

$5.49

$

Usually ships in 3-6 days

0

4

Honda 16561-ZE7-020

Spring-Governor (STD)

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, only 1 left!

0

5

Honda 16562-ZE6-000

SPRING-RETURN, THROTTLE

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

7

Honda 16570-ZE7-020

CONTROL ASM

Note: Obtain parts from www.honda-engines.com

$50.99

$

In Stock, only 3 left!

0

8

Honda 16573-ZE7-000

Rod-Choke

Note: Obtain parts from www.honda-engines.com

$2.99

$

Usually ships in 3-6 days

0

9

Honda 16576-ZE7-300

Spring-Lever

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 1 left!

0

10

Honda 16576-891-000

Holder-Cable

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 2 left!

0

11

Honda 16584-883-300

SPRING-ADJUSTING, CONTROL

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 9

0

12

Honda 16585-ZE7-000

Protector-Control

Note: Obtain parts from www.honda-engines.com

$15.99

$

Usually ships in 3-6 days

0

14

Honda 36100-ZE7-013

ENGINE STOP SWITCH ASM

Note: Obtain parts from www.honda-engines.com

$20.99

$

Usually ships in 3-6 days

0

15

Honda 36101-ZE7-020

WIRE-SWITCH, STOP

Note: Obtain parts from www.honda-engines.com

$16.99

$

Usually ships in 3-6 days

0

16

Honda 36103-ZE1-000

HOLDER-WIRE, STOP SWITCH

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 1 left!

0

17

Honda 46392-SC2-003

CLAMP-PIPE, BRAKE

Note: Obtain parts from www.honda-engines.com

$5.49

$

Usually ships in 3-6 days

0

18

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

19

Honda 90015-ZE5-010

BOLT-ARM, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

21

Honda 90659-680-013

CLIP-HARNESS, WIRE

Note: Obtain parts from www.honda-engines.com

$8.49

$

Usually ships in 3-6 days

0

22

Honda 93500-04008-0A

Screw-Pan (4X8)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, only 4 left!

0

23

Honda 93500-05016-0A

Screw-Pan (5X16)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, only 1 left!

0

24

Honda 93500-05020-0A

Screw-Pan (5X20)

Note: Obtain parts from www.honda-engines.com

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93500-05028-0A

Screw-Pan (5X28)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 5

0

26

Honda 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

27

Honda 95701-06010-00

Bolt-Flange (6X10)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 14

0
