22195 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) ENGINE, FUEL TANK AND BLADE ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

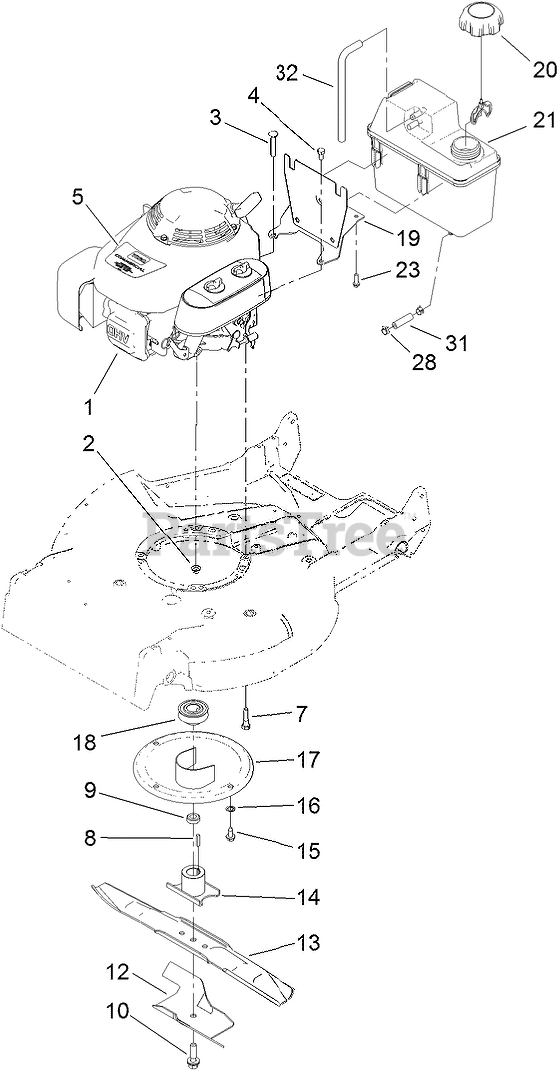

ENGINE, FUEL TANK AND BLADE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-HONDA, GXV160UH2 A1TT

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GXV160UH2 A1TT

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

3

Toro 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 11

0

4

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

5

Toro 112-9974

DECAL-ENGINE, HONDA
(Superseded to 125-8405)

$6.99

$

In Stock, only 2 left!

0

7

Toro 103-2678

SCREW-SHOULDER

$6.49

$

In Stock, Qty 10

0

8

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 3 left!

0

9

Toro 103-3795

Spacer-Retainer, Blade

$7.99

$

In Stock, only 4 left!

0

10

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$76.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$31.99

$

In Stock, only 1 left!

0

14

Toro 52-2170-03

RETAINER-BLADE

$72.99

$

In Stock, only 1 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 121-1360

CRANKSHAFT PROTECTOR ASM
(Superseded to 125-8370)

$101.99

$

Usually ships in 3-6 days

0

18

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

19

Toro 119-7837-03

MOUNT-TANK

$70.99

$

Usually ships in 3-6 days

0

20

Toro 109-6776

CAP-RATCHET, TETHERED
(Superseded to 137-4127)

$22.99

$

In Stock, only 3 left!

0

21

Toro 114-0280

TANK-FUEL

$140.99

$

In Stock, only 4 left!

0

23

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

28

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

31

Toro 119-7856

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

32

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0
