22195 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) CYLINDER BARREL ASSEMBLY HONDA GXV160UH2 A1T Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

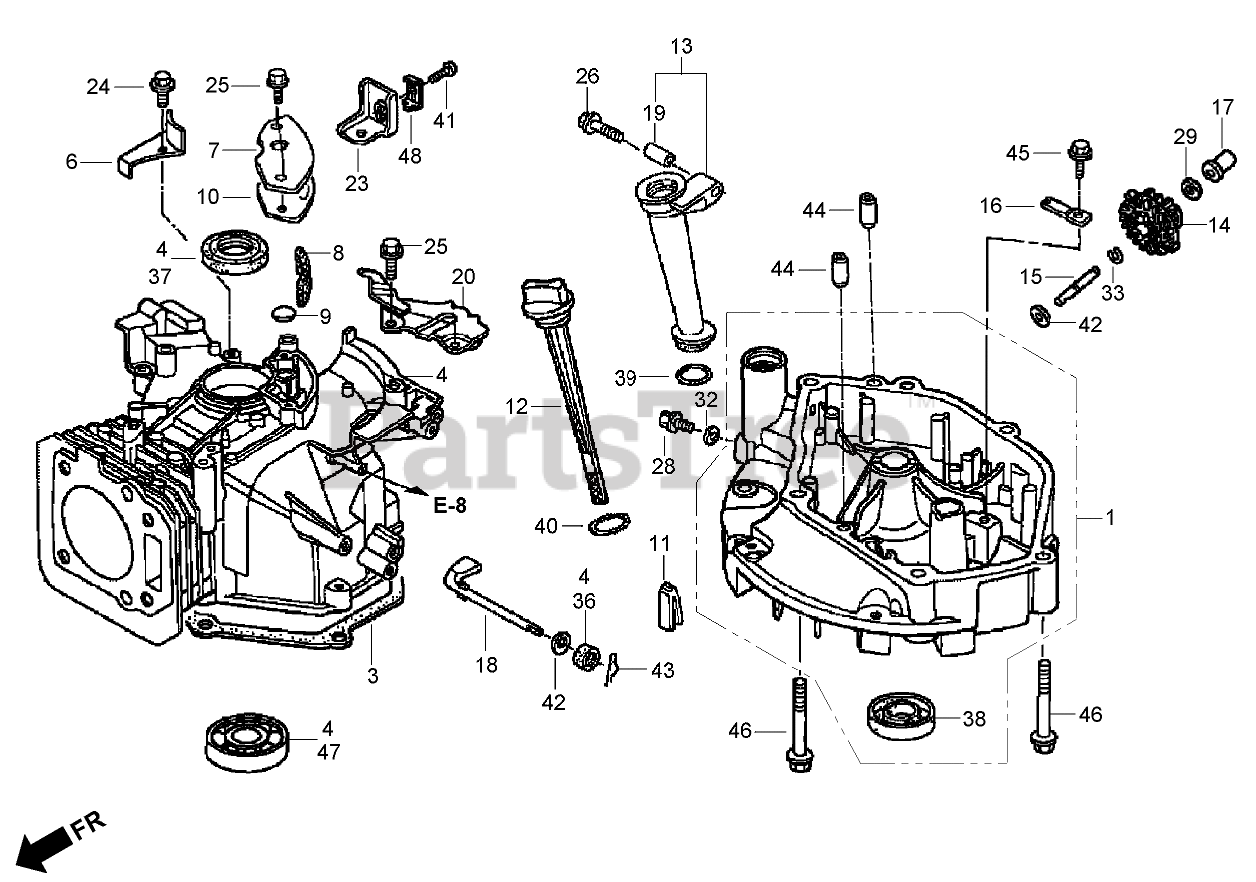

CYLINDER BARREL ASSEMBLY HONDA GXV160UH2 A1T Parts Diagram

  • Title

1

Honda 11300-Z1V-406

OIL PAN ASM

Note: Obtain parts from www.honda-engines.com

$175.99

$

In Stock, only 1 left!

0

3

Honda 11381-ZE7-M10

GASKET-PAN, OIL

Note: Obtain parts from www.honda-engines.com

$15.99

$

In Stock, only 3 left!

0

4

Honda 12000-Z1V-405

CYLINDER ASM

Note: Obtain parts from www.honda-engines.com

$536.99

$

Usually ships in 3-6 days

0

6

Honda 12126-Z1V-800

GUIDE-PLATE, A

Note: Obtain parts from www.honda-engines.com

$15.99

$

Usually ships in 3-6 days

0

7

Honda 12355-Z1V-000

COVER-BREATHER

Note: Obtain parts from www.honda-engines.com

$8.49

$

Usually ships in 3-6 days

0

8

Honda 12367-883-003

Filter-Breather

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

9

Honda 12372-ZE7-000

VALVE-BREATHER

Note: Obtain parts from www.honda-engines.com

$4.99

$

Usually ships in 3-6 days

0

10

Honda 12373-ZE7-000

GASKET-COVER, BREATHER

Note: Obtain parts from www.honda-engines.com

$3.49

$

Usually ships in 3-6 days

0

11

Honda 15335-ZE7-000

RUBBER-RETURN, OIL

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

12

Honda 15620-ZE6-810

Dipstick-Oil

Note: Obtain parts from www.honda-engines.com

$12.99

$

In Stock, only 1 left!

0

13

Honda 15630-ZE6-810

EXTENSION-FILLER, OIL (106 mm)

Note: Obtain parts from www.honda-engines.com

$56.99

$

In Stock, only 1 left!

0

14

Honda 16510-ZE6-000

GOVERNOR ASM

Note: Obtain parts from www.honda-engines.com

$25.99

$

In Stock, only 1 left!

0

15

Honda 16515-ZE6-010

SHAFT-HOLDER, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$7.49

$

Usually ships in 3-6 days

0

16

Honda 16525-ZE6-010

Plate-HOLDER, Governor Shaft

Note: Obtain parts from www.honda-engines.com

$7.49

$

Usually ships in 3-6 days

0

17

Toro 16531-Z1T-000

SLIDER-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

18

Honda 16541-ZE7-000

SHAFT-ARM, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$15.99

$

Usually ships in 3-6 days

0

19

Honda 17240-ZE6-000

Collar-Extension

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 1 left!

0

20

Honda 17560-Z1V-000

STAY-TANK

Note: Obtain parts from www.honda-engines.com

$72.99

$

In Stock, only 1 left!

0

23

Honda 43143-Z1V-000

BASE-HOLDER

Note: Obtain parts from www.honda-engines.com

$7.99

$

Usually ships in 3-6 days

0

24

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 17

0

25

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

26

Honda 90017-883-000

Bolt-Flange (6X32)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 2 left!

0

28

Honda 90131-ZE1-000

Bolt-PLUG, Drain

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 2 left!

0

29

Honda 90451-ZE1-000

WASHER-THRUST (6MM)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 2 left!

0

32

Honda 90601-ZE1-000

WASHER-PLUG, DRAIN (102MM)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 20+

0

33

Honda 90602-ZE1-000

CLIP-HOLDER, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, only 3 left!

0

36

Honda 91231-Z1V-003

SEAL-OIL (6X11X4)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 1 left!

0

37

Honda 91251-Z1V-003

SEAL-OIL (25X38X7)

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, Qty 8

0

38

Honda 91252-Z1V-003

SEAL-OIL (25.4X40X7)

Note: Obtain parts from www.honda-engines.com

$10.99

$

In Stock, Qty 11

0

39

Honda 91301-Z1V-003

O-RING (22.1X2.2)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

40

Honda 91302-Z1V-003

O-RING (25.5X3)

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 1 left!

0

41

Honda 93500-05016-0A

Screw-Pan (5X16)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 7

0

42

Honda 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

43

Honda 94251-08000

PIN-LOCK (8MM)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 9

0

44

Honda 94301-08140

Pin-Dowel (8X14)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, Qty 8

0

45

Honda 95701-06012-08

Bolt-Flange (6X12)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 1 left!

0

46

Honda 95701-08050-00

BOLT-FLANGE (8X50)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 5

0

47

Honda 96100-62050-00

BEARING-BALL, RADIAL (6205)

Note: Obtain parts from www.honda-engines.com

$25.99

$

In Stock, only 1 left!

0

48

Honda 16576-891-000

Holder-Cable

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 1 left!

0
