22195 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 310000001 - 310999999) (2010) CAMSHAFT ASSEMBLY HONDA GXV160UH2 A1T Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

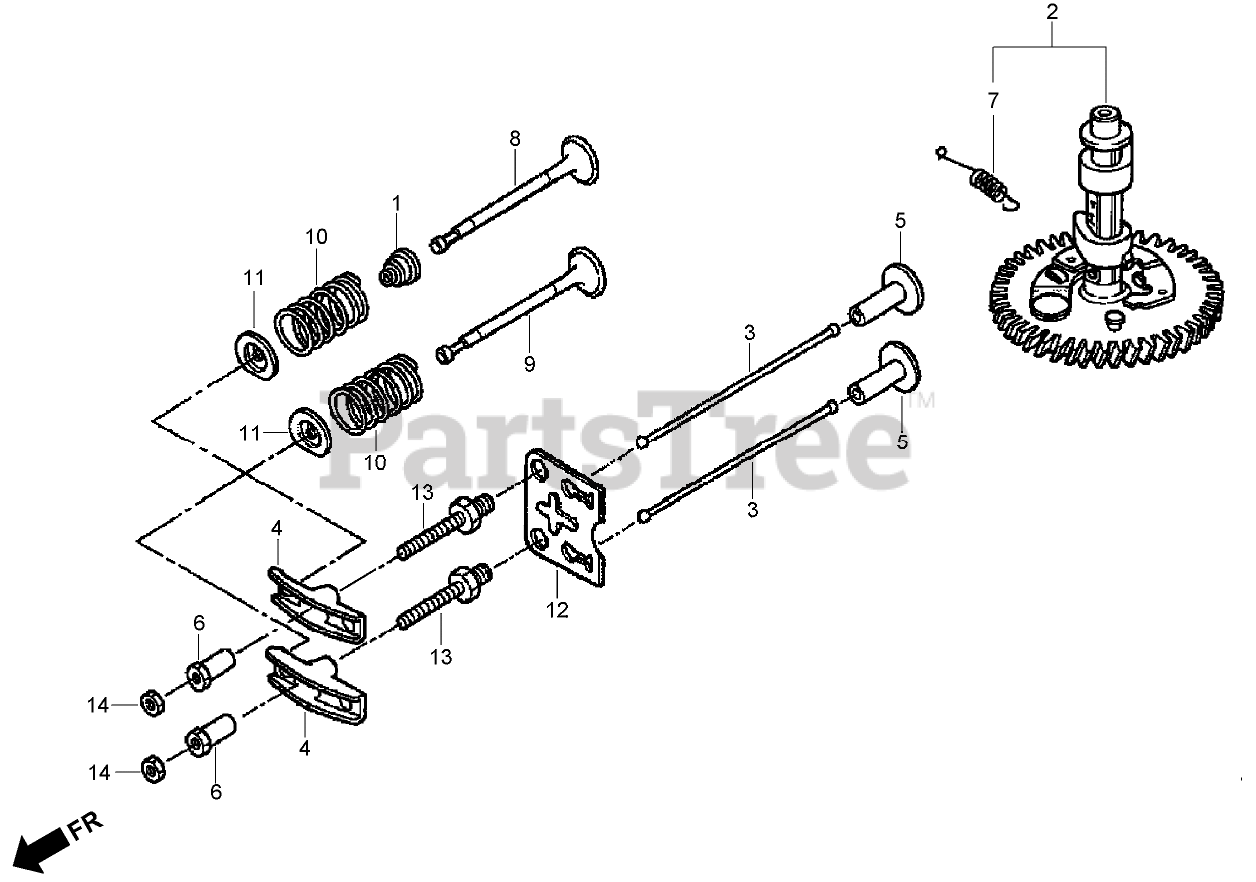

CAMSHAFT ASSEMBLY HONDA GXV160UH2 A1T Parts Diagram

  • Title
1

Honda 12209-ZE6-003

SEAL-STEM, VALVE

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 2 left!

0

2

Honda 14100-ZE7-000

CAMSHAFT ASM

Note: Obtain parts from www.honda-engines.com

$125.99

$

Usually ships in 3-6 days

0

3

Honda 14410-ZE1-010

ROD-PUSH

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, only 2 left!

0

4

Honda 14431-ZE1-000

ARM-ROCKER, VALVE

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, only 2 left!

0

5

Honda 14441-ZE1-010

Lifter-Valve

Note: Obtain parts from www.honda-engines.com

$14.99

$

Usually ships in 3-6 days

0

6

Honda 14451-ZE1-013

PIVOT-ARM, ROCKER
(Superseded to 14451-Z4M-000)

Note: Obtain parts from www.honda-engines.com

$6.49

$

In Stock, Qty 5

0

7

Honda 14568-ZE1-000

SPRING-RETURN, WEIGHT

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 1 left!

0

8

Honda 14711-ZF1-000

VALVE-INTAKE

Note: Obtain parts from www.honda-engines.com

$21.99

$

In Stock, only 3 left!

0

9

Honda 14721-ZE7-000

VALVE-EXHAUST

Note: Obtain parts from www.honda-engines.com

$36.99

$

In Stock, only 2 left!

0

10

Honda 14751-ZE1-000

Spring-Valve

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, only 3 left!

0

11

Honda 14771-ZE1-000

RETAINER-SPRING, VALVE (INTAKE)
(Superseded to 14771-Z0T-900)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 14

0

12

Honda 14791-ZE1-010

Plate-GUIDE, Push Rod

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90012-ZE0-010

BOLT-PIVOT (8 mm)

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, only 2 left!

0

14

Honda 90206-ZE1-000

NUT-ADJUSTING, PIVOT

Note: Obtain parts from www.honda-engines.com

$4.49

$

In Stock, Qty 6

0
