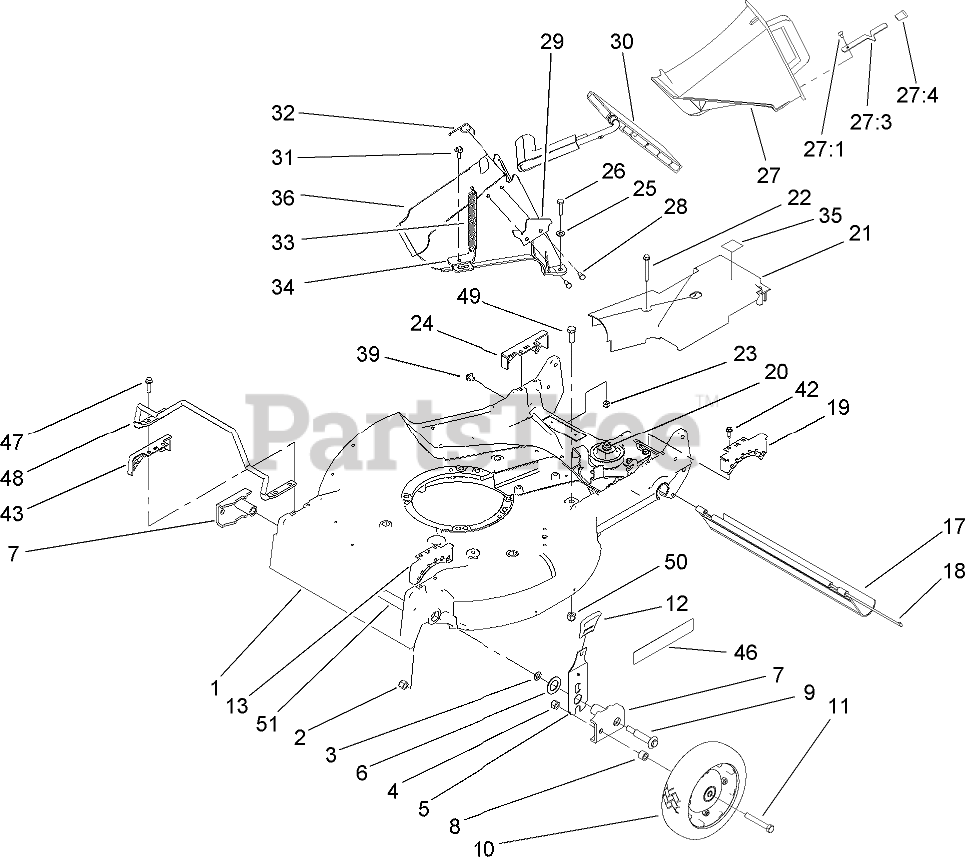

22195 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) HOUSING ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 98-7139

HOUSING ASM

$429.99

$

Usually ships in 3-6 days

0

2

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

3

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

4

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

5

Toro 110-0537

SPRING ARM ASM
(Superseded to 115-0980)

$16.99

$

In Stock, only 2 left!

0

6

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, only 2 left!

0

7

Toro 61-8300

ARM-PIVOT, FRONT

$29.99

$

In Stock, only 2 left!

0

8

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, only 2 left!

0

9

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

10

Toro 100-2870

Wheel and Tire ASM
(Superseded to 121-1380)

$101.99

$

In Stock, only 3 left!

0

11

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

12

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

13

Toro 49-8760

QUADRANT-FRONT, LH

$27.99

$

In Stock, only 4 left!

0

17

Toro 112-9989

SHIELD-TRAILING

$28.99

$

In Stock, Qty 8

0

18

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

19

Toro 49-8740

QUADRANT-REAR, LH

$27.99

$

In Stock, only 4 left!

0

20

Toro 74-1861

GEAR CASE ASM
(Superseded to 74-1860)

$752.99

$

Usually ships in 3-6 days

0

21

Toro 74-1770

COVER-BELT

$46.99

$

In Stock, only 4 left!

0

22

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

24

Toro 49-8750

QUADRANT-REAR, RH

$27.99

$

In Stock, only 4 left!

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

27

Toro 77-0500

DISCHARGE PLUG ASM

$75.99

$

Usually ships in 3-6 days

0

27:1

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

27:3

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

27:4

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

28

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

29

Toro 93-3154

LATCH-PLATE

$5.99

$

In Stock, Qty 5

0

30

Toro 93-7351

DISCHARGE DOOR ASM

$116.99

$

In Stock, only 1 left!

0

31

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

32

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

33

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

34

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

35

Toro 52-2620

LABEL-GREASE
(Superseded to 119-7894)

$3.49

$

In Stock, only 2 left!

0

36

Toro 82-9152

TUNNEL-DISCHARGE

$160.99

$

Usually ships in 3-6 days

0

39

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

42

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

43

Toro 49-8770

QUADRANT-FRONT, RH

$27.99

$

In Stock, Qty 6

0

46

Toro 106-0689

Decal

$8.49

$

In Stock, Qty 20+

0

47

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

48

Toro 99-6722

GUARD-ENGINE

$39.99

$

In Stock, only 1 left!

0

49

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

50

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

51

Toro 68-7410

DECAL-BLADE

$12.99

$

In Stock, only 1 left!

0
