22194 (PT 21) - Toro 21" Trim Walk-Behind Mower (SN: 280000001 - 280999999) (2008) COOLING EQUIPMENT ASSEMBLY KAWASAKI FJ180V-AS34 Parts Diagram

21" Trim Walk-Behind Mower

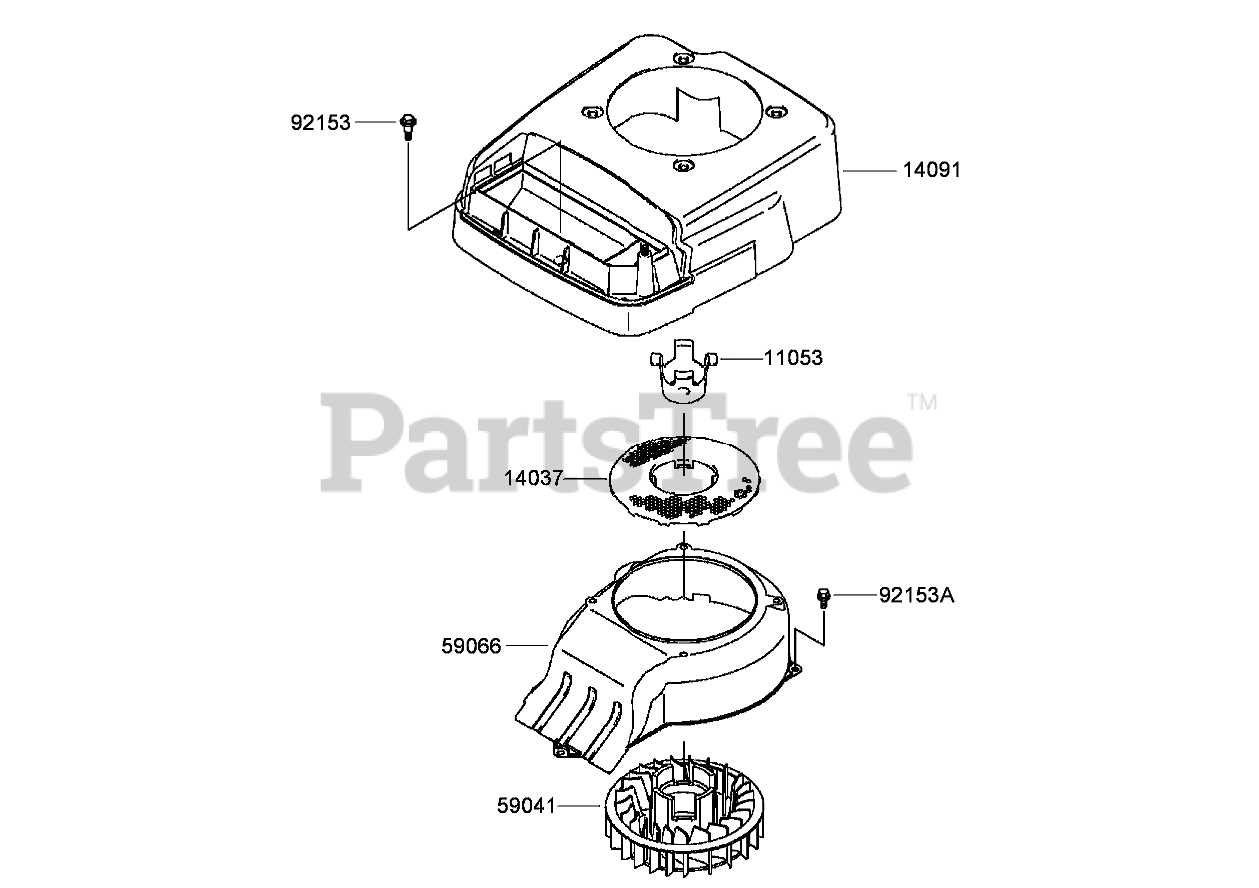

COOLING EQUIPMENT ASSEMBLY KAWASAKI FJ180V-AS34 Parts Diagram

  • Title
11053

Kawasaki 11053-7009

BRACKET-FAN
(Superseded to 11052-7004)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, only 1 left!

0

14037

Kawasaki 14037-7017

SCREEN
(Superseded to 14037-2154)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 19

0

14091

Kawasaki 14091-7046

COVER

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

59041

Kawasaki 59041-7009

FAN
(Superseded to 59041-2098)

Note: Obtain parts from www.kawpowerepc.com

$24.99

$

In Stock, Qty 20+

0

59066

Kawasaki 59066-7016

HOUSING-FAN
(Superseded to 59066-2812)

Note: Obtain parts from www.kawpowerepc.com

$38.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7008

Bolt

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92153A

Kawasaki 92153-7043

BOLT (6X12)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available
