22194 (PT 21) - Toro 21" Trim Walk-Behind Mower (SN: 270000001 - 270999999) (2007) TRANSMISSION ASSEMBLY Parts Diagram

21" Trim Walk-Behind Mower

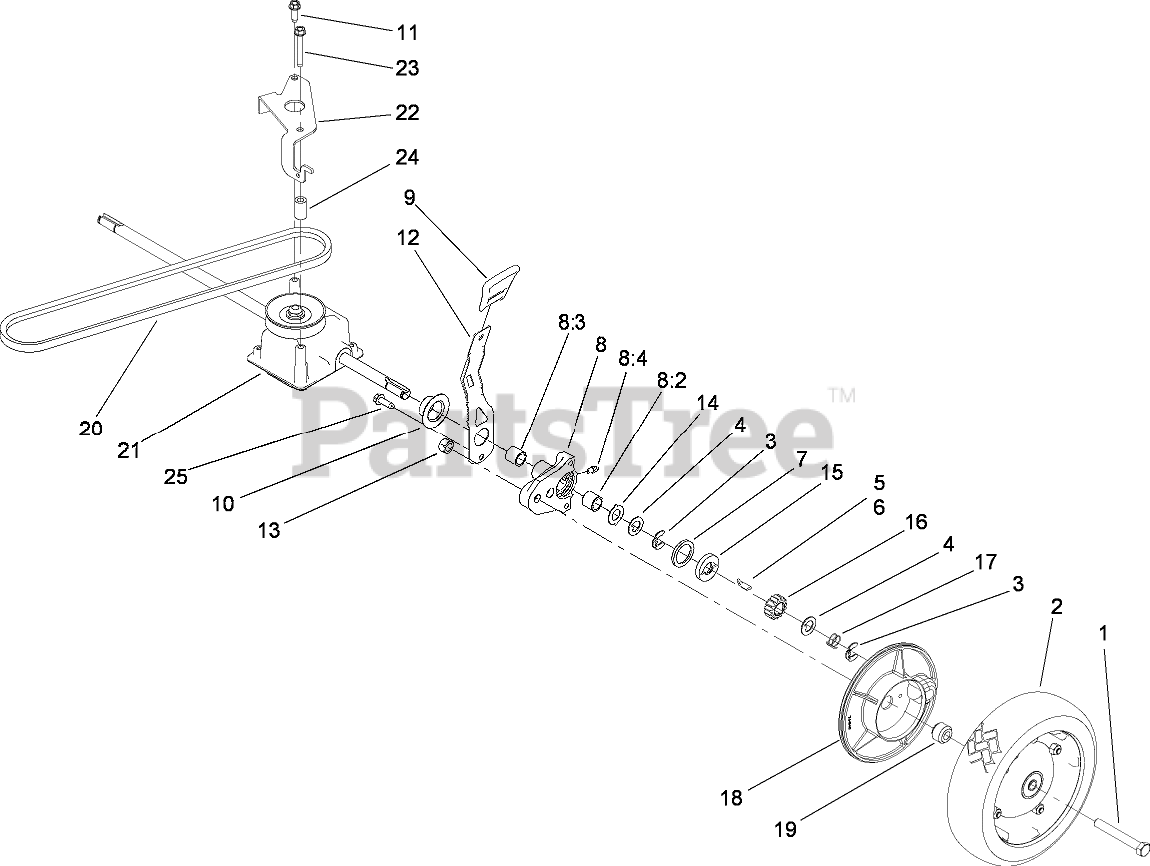

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

2

Toro 100-2860

Wheel And Tire ASM
(Superseded to 121-1379)

$131.99

$

In Stock, only 2 left!

0

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 12

0

5

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, only 2 left!

0

6

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 9

0

7

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 10

0

8

Toro 100-8774

PIVOT ARM ASM

$38.99

$

In Stock, only 1 left!

0

8:2

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 5

0

8:3

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 6

0

8:4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

9

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

10

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, only 2 left!

0

11

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

12

Toro 107-7491

ARM-SPRING

$12.99

$

In Stock, only 3 left!

0

13

$2.99

$

Usually ships in 3-6 days

0

14

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 6

0

15

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 6

0

16

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 18

0

17

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

18

Toro 74-1640

COVER-WHEEL

$14.99

$

In Stock, Qty 11

0

19

Toro 74-1650

SPACER-COVER, WHEEL

$9.49

$

In Stock, only 3 left!

0

20

Toro 99-1597

V-BELT

$24.99

$

In Stock, only 1 left!

0

21

Toro 108-8140

GEAR CASE ASM

$336.99

$

Usually ships in 3-6 days

0

22

Toro 107-7483-03

BRACKET-GEARBOX

$6.49

$

Usually ships in 3-6 days

0

23

Toro 92-1616

SCREW-HWHTF

$3.49

$

In Stock, only 1 left!

0

24

Toro 614673

BUSHING-PLATE, ACTUATOR

$12.99

$

In Stock, only 2 left!

0

25

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
