22193 (PT 21) - Toro 21" Trim Walk-Behind Mower (SN: 280000001 - 280999999) (2008) HANDLE ASSEMBLY Parts Diagram

21" Trim Walk-Behind Mower

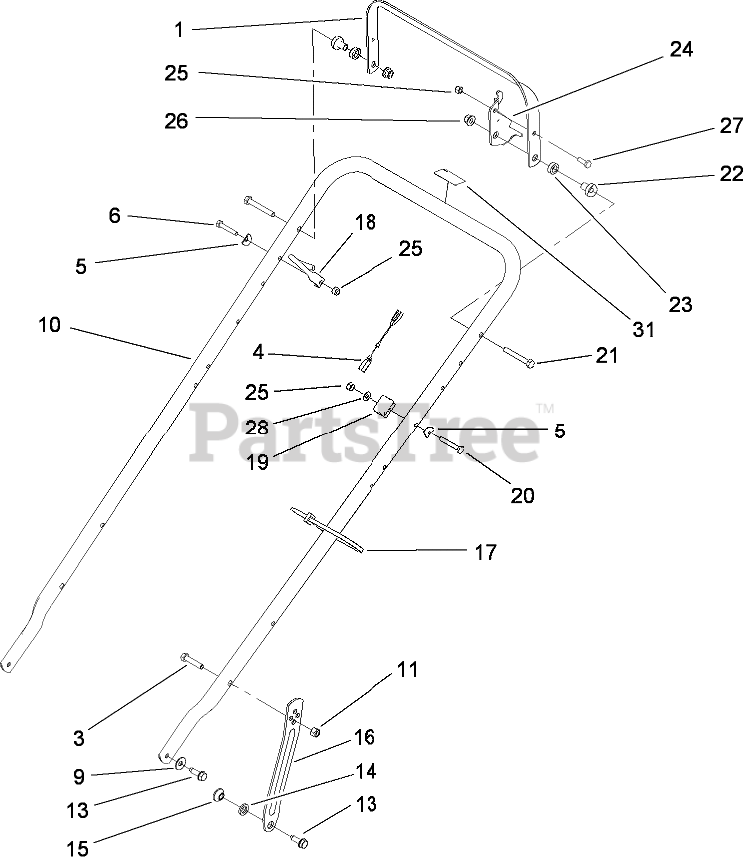

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8270-03

BAR-CONTROL

$103.99

$

Usually ships in 3-6 days

0

3

Toro 92-4095

SCREW-HANDLE

$6.99

$

In Stock, only 4 left!

0

4

Toro 110-4937

BRAKE CABLE ASM

$54.99

$

Usually ships in 3-6 days

0

5

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

6

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

10

Toro 114-3493-03

HANDLE

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 701243

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 55-9670

WASHER

$2.49

$

Usually ships in 3-6 days

0

15

Toro 27-6600

SPACER-COUPLING
(Superseded to 125-9249)

$2.99

$

In Stock, only 3 left!

0

16

Toro 108-8145-03

SUPPORT-HANDLE

$

$

Not available

17

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

18

Toro 46-8081

GUIDE-ROPE

$22.99

$

Usually ships in 3-6 days

0

19

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

20

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 8

0

21

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

22

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

23

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

24

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

26

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0
