22191 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) REAR DRIVE AND WHEEL ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

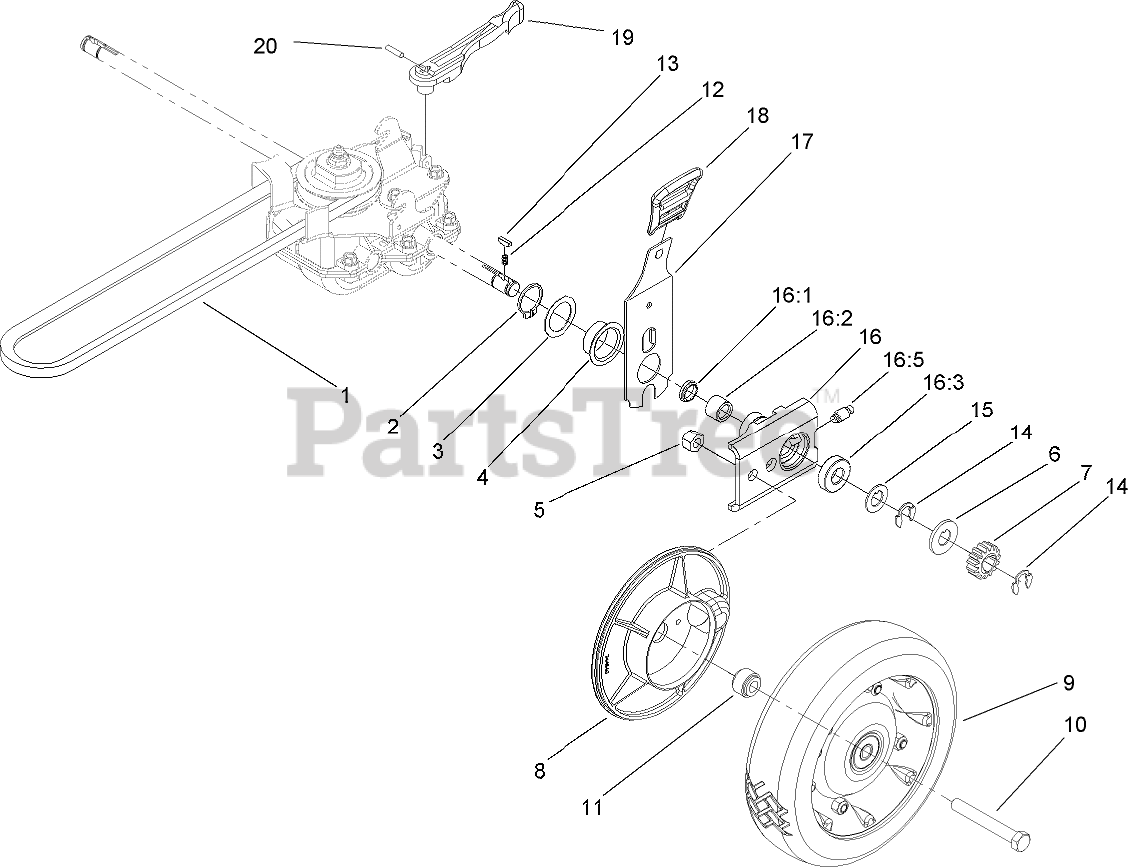

REAR DRIVE AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 36-8070

V-BELT

$14.99

$

In Stock, Qty 15

0

2

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 8

0

3

Toro 74-1810

WASHER

$0.99

$

In Stock, Qty 7

0

4

Toro 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

5

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

6

Toro 62-3830

WASHER-THRUST, OUTER

$3.99

$

In Stock, Qty 14

0

7

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 5

0

8

Toro 74-1640

COVER-WHEEL

$14.99

$

In Stock, Qty 11

0

9

Toro 100-2860

Wheel And Tire ASM
(Superseded to 121-1379)

$131.99

$

In Stock, only 2 left!

0

10

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

11

Toro 74-1650

SPACER-COVER, WHEEL

$9.49

$

In Stock, only 3 left!

0

12

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 13

0

13

Toro 612066

KEY

$2.49

$

In Stock, Qty 20+

0

14

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 19

0

15

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 15

0

16

Toro 74-1851

PIVOT ARM ASM

$95.99

$

In Stock, only 2 left!

0

16:1

Toro 47-6730

SEAL-OIL

$12.99

$

In Stock, Qty 20+

0

16:2

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

16:3

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

16:5

Toro 92-6316

ZERK

$1.99

$

In Stock, Qty 6

0

17

Toro 115-0981

REAR SPRING ARM ASM

$11.99

$

In Stock, Qty 9

0

18

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

19

Toro 74-1960

LEVER-SHIFT

$13.99

$

Usually ships in 3-6 days

0

20

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 2 left!

0
