22191 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) CONTROL PANEL ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

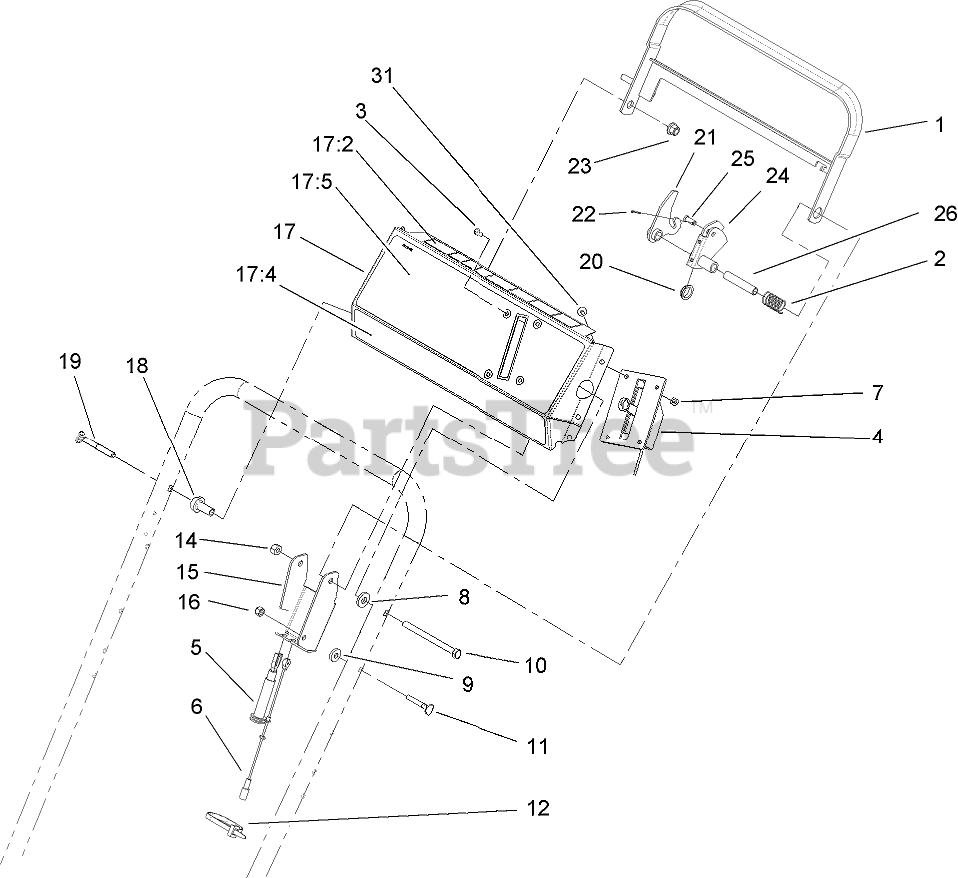

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title
1

Toro 84-8940-03

BAR-CONTROL

$128.99

$

Usually ships in 3-6 days

0

2

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0

3

Toro 3250-12

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 114-3447

CONTROL-THROTTLE
(Superseded to 117-3542)

$115.99

$

Usually ships in 3-6 days

0

5

Toro 84-9120

CABLE-TRACTION

$68.99

$

In Stock, Qty 5

0

6

Toro 84-9110

CABLE-CLUTCH

$96.99

$

In Stock, only 4 left!

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 71-9310

SPACER

$2.99

$

Usually ships in 3-6 days

0

9

Toro 71-9320

SPACER

$2.99

$

Usually ships in 3-6 days

0

10

Toro 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

11

Toro 46-6430

SCREW-HANDLE

$12.99

$

Usually ships in 3-6 days

0

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 92-1778-03

BRACKET-CONTROL

$18.99

$

Usually ships in 3-6 days

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 112-9739

PANEL ASM

$

$

Not available

17:2

Toro 104-8582

DECAL-PANEL, DANGER

$

$

Not available

17:4

Toro 106-0771

Decal-Panel

$18.99

$

Usually ships in 3-6 days

0

17:5

Toro 112-9731

DECAL-PANEL, CONTROL

$

$

Not available

18

Toro 49-1631

SPACER-SUPPORT

$6.49

$

In Stock, only 1 left!

0

19

Toro 17-9427

SCREW

$8.99

$

Usually ships in 3-6 days

0

20

Toro 86-9320

BUSHING-FLANGE

$9.49

$

Usually ships in 3-6 days

0

21

Toro 84-9000

LEVER-TRACTION

$27.99

$

Usually ships in 3-6 days

0

22

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

23

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

24

Toro 84-8990

LEVER-BBC

$31.99

$

Usually ships in 3-6 days

0

25

Toro 84-9040

PIN-CABLE

$12.99

$

Usually ships in 3-6 days

0

26

Toro 84-9030

SPACER-BRACKET, CONTROL

$46.99

$

Usually ships in 3-6 days

0

31

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
