22190 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) VALVE AND CAMSHAFT ASSEMBLY KAWASAKI FJ180V-AS39 Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

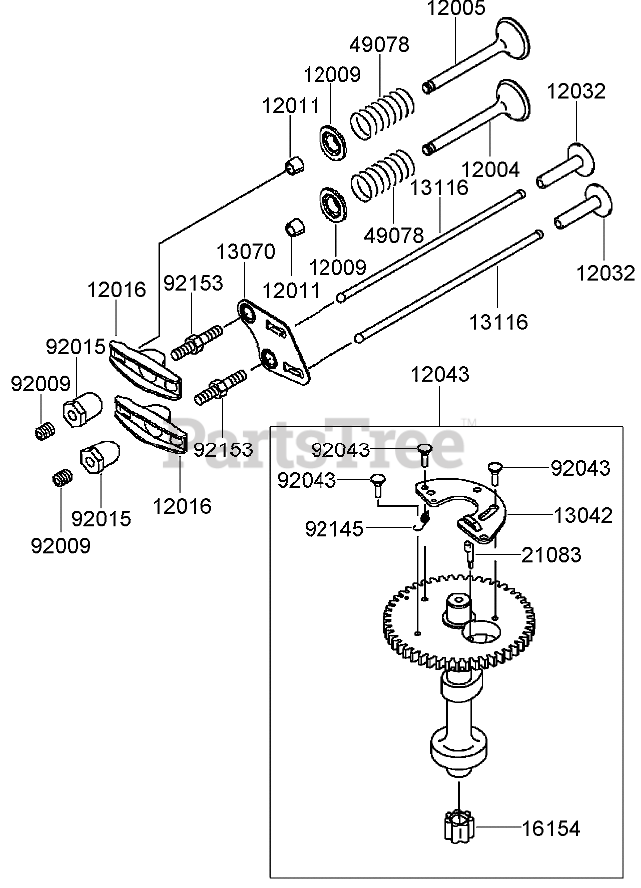

VALVE AND CAMSHAFT ASSEMBLY KAWASAKI FJ180V-AS39 Parts Diagram

  • Title
12004

Kawasaki 12004-7005

VALVE-INTAKE

Note: Obtain parts from www.kawpowerepc.com

$18.99

$

In Stock, Qty 6

0

12005

Kawasaki 12005-7006

VALVE-EXHAUST

Note: Obtain parts from www.kawpowerepc.com

$33.99

$

In Stock, Qty 6

0

12009

Kawasaki 12009-7001

RETAINER-SPRING, VALVE

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

12011

Kawasaki 12011-2056

Collet

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-7008

ARM-ROCKER
(Superseded to 12016-7001)

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

In Stock, Qty 12

0

12032

Kawasaki 12032-7001

Tappet

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, Qty 20+

0

12043

Kawasaki 12043-7005

CAMSHAFT VALVE ASM
(Superseded to 12043-7004)

Note: Obtain parts from www.kawpowerepc.com

$82.99

$

Usually ships in 2-5 days

0

13042

Kawasaki 13042-7006

WEIGHT

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

13070

Kawasaki 13070-7009

GUIDE

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 9

0

13116

Kawasaki 13116-7003

ROD-PUSH
(Superseded to 13116-2076)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

Usually ships in 2-5 days

0

16154

Kawasaki 16154-7004

ROTOR-PUMP
(Superseded to 16154-7001)

Note: Obtain parts from www.kawpowerepc.com

$7.49

$

Usually ships in 2-5 days

0

21083

Kawasaki 21083-7009

ARM

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

Usually ships in 2-5 days

0

49078

Kawasaki 49078-7001

SPRING-VALVE, ENGINE
(Superseded to 49078-2064)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-2341

Screw

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-2253

Nut

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92043

Toro 92043-7006

Pin

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92145

Kawasaki 92145-7016

SPRING

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7019

Bolt

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

Usually ships in 2-5 days

0
