22190 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FUEL TANK AND FUEL VALVE ASSEMBLY KAWASAKI FJ180V-AS39 Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

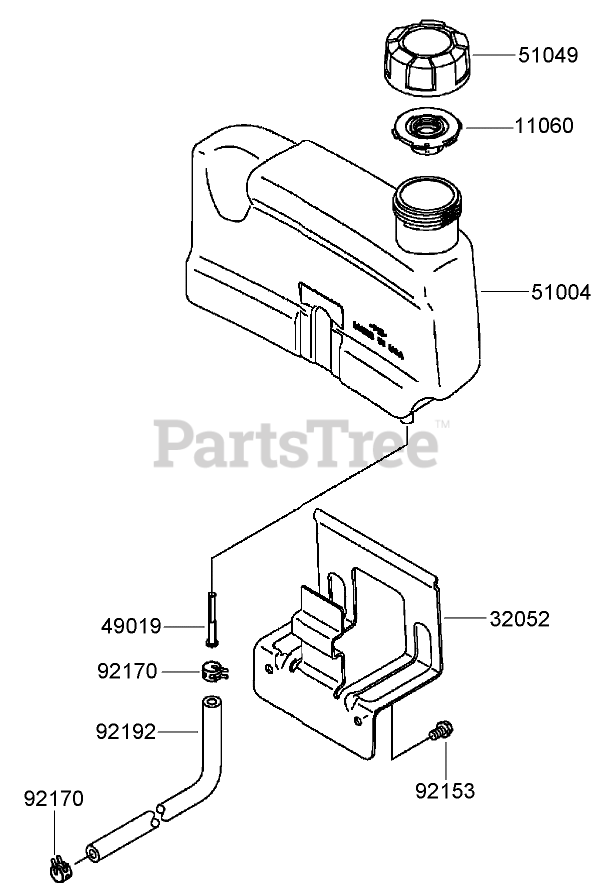

FUEL TANK AND FUEL VALVE ASSEMBLY KAWASAKI FJ180V-AS39 Parts Diagram

  • Title
11060

Kawasaki 11060-2145

GASKET
(Superseded to 11061-7036)

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, Qty 13

0

32052

Kawasaki 32052-7001

BRACKET-TANK
(Superseded to 32052-2230)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-7003

FILTER-FUEL
(Superseded to 49019-2119)

Note: Obtain parts from www.kawpowerepc.com

$11.99

$

In Stock, Qty 8

0

51004

Kawasaki 51004-7004

TANK-FUEL

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

51049

Kawasaki 51049-7004

CAP-TANK

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

Usually ships in 2-5 days

0

92153

Kawasaki 92153-7023

BOLT (6X10)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, only 1 left!

0

92170

Kawasaki 92170-2009

CLAMP

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92192

Toro 92192-7084

TUBE (6X12.7X375)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
