22189 - Toro 21" Heavy-Duty Rear Bagger Walk-Behind Mower (SN: 270000001 - 270004000) (2007) HANDLE ASSEMBLY Parts Diagram

21" Heavy-Duty Rear Bagger Walk-Behind Mower

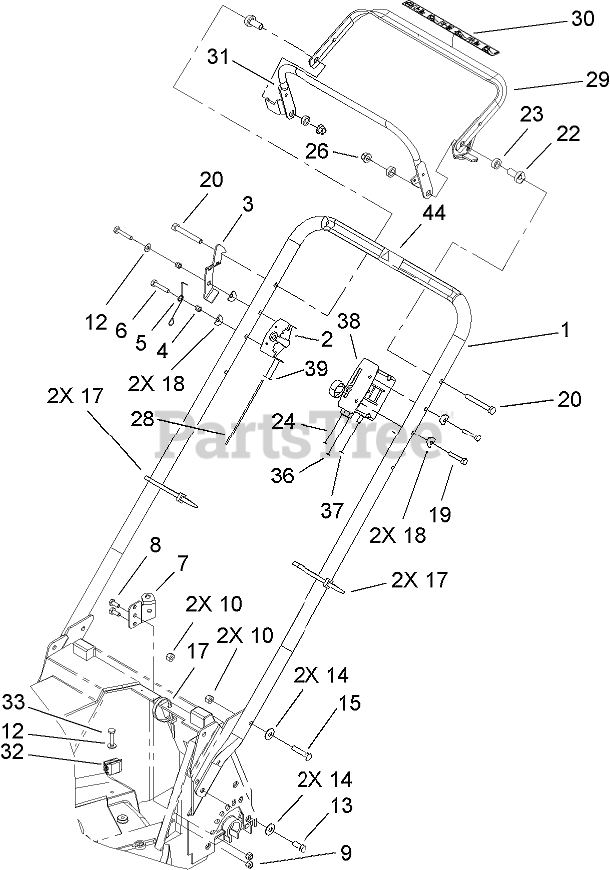

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 107-4162-03

HANDLE
(Superseded to 119-7892-03)

$

$

Not available

2

Toro 110-5026

CONTROL-SHIFT
(Superseded to 116-0504)

$96.99

$

Usually ships in 3-6 days

0

3

Toro 110-0527-01

LATCH-LEVER, BBC
(Superseded to 115-4463)

$

$

Not available

4

Toro 110-0542

SPACER-FLANGE

$7.99

$

Usually ships in 3-6 days

0

5

Toro 110-0541

SPRING-TORSION, LATCH
(Superseded to 115-4463)

$

$

Not available

6

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 613580

ANCHOR-CABLE
(Superseded to 115-4453)

$

$

Not available

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

18

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

19

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

20

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

22

Toro 49-1631

SPACER-SUPPORT

$6.49

$

In Stock, only 1 left!

0

23

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

24

Toro 107-4296

CABLE-BBC

$95.99

$

Usually ships in 3-6 days

0

26

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 11

0

28

Toro 107-4295

CABLE-SHIFT

$87.99

$

Usually ships in 3-6 days

0

29

Toro 110-0545-03

TRACTION BAIL ASM
(Superseded to 115-4454-03)

$100.99

$

Usually ships in 3-6 days

0

30

Toro 110-2114

DECAL-CONTROL

$

$

Not available

31

Toro 110-0546-03

BBC BAIL ASM
(Superseded to 115-4463)

$

$

Not available

32

Toro 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, Qty 13

0

33

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

36

Toro 107-4294

CABLE-TRACTION

$90.99

$

In Stock, only 1 left!

0

37

Toro 110-4923

THROTTLE CABLE ASM

$45.99

$

Usually ships in 3-6 days

0

38

Toro 108-2645

CONTROL-HEAD, THROTTLE

$121.99

$

In Stock, only 1 left!

0

39

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

44

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0
