22188 TE - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

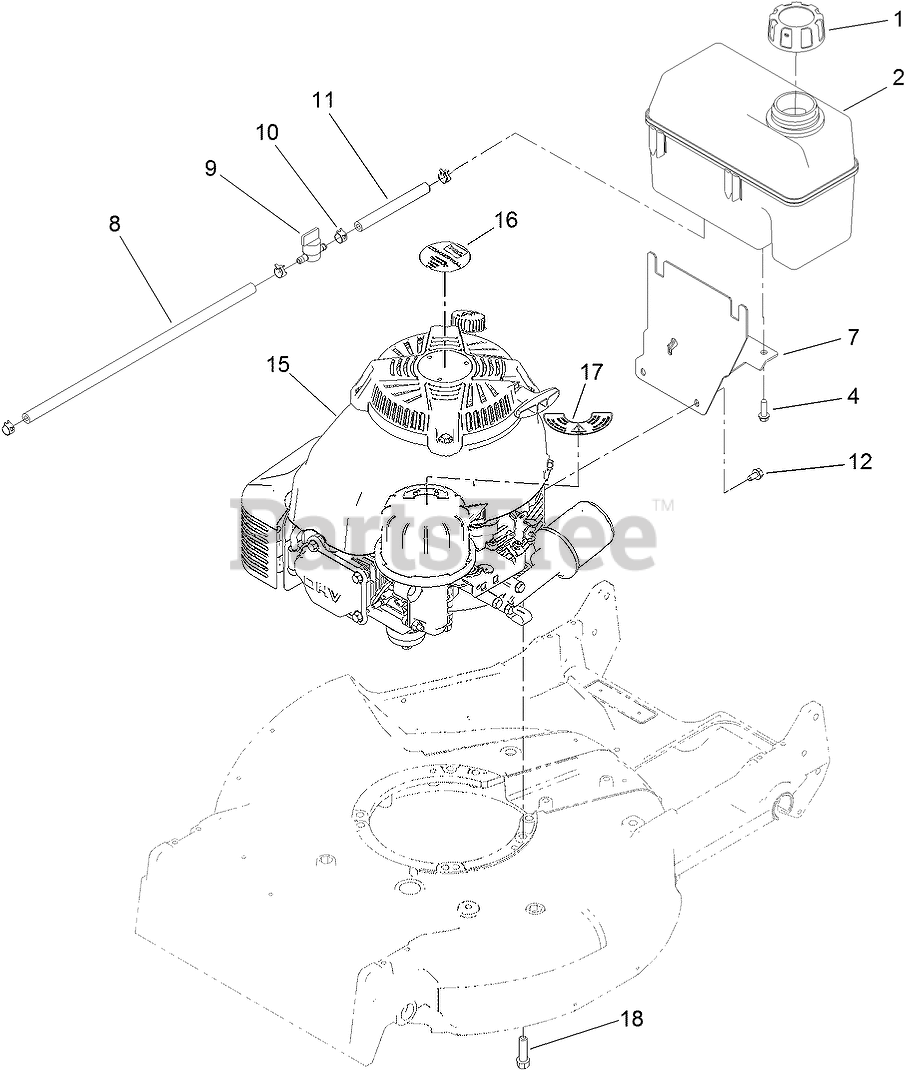

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

2

Toro 117-3510

TANK-FUEL

$94.99

$

In Stock, only 3 left!

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

7

Toro 115-0954-03

MOUNT-TANK

$43.99

$

In Stock, only 3 left!

0

8

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

9

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

10

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Toro 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

12

Toro 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

15

Toro 121-1400

ENGINE-KAWASAKI, FJ180V-BM07-M

$

$

Not available

16

$34.99

$

Usually ships in 3-6 days

0

17

$7.49

$

In Stock, only 1 left!

0

18

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0
