22188 TE - Toro 53cm Heavy-Duty Recycler Walk-Behind Mower (SN: 312000001 - 312999999) (2012) REAR DRIVE AND WHEEL ASSEMBLY Parts Diagram

53cm Heavy-Duty Recycler Walk-Behind Mower

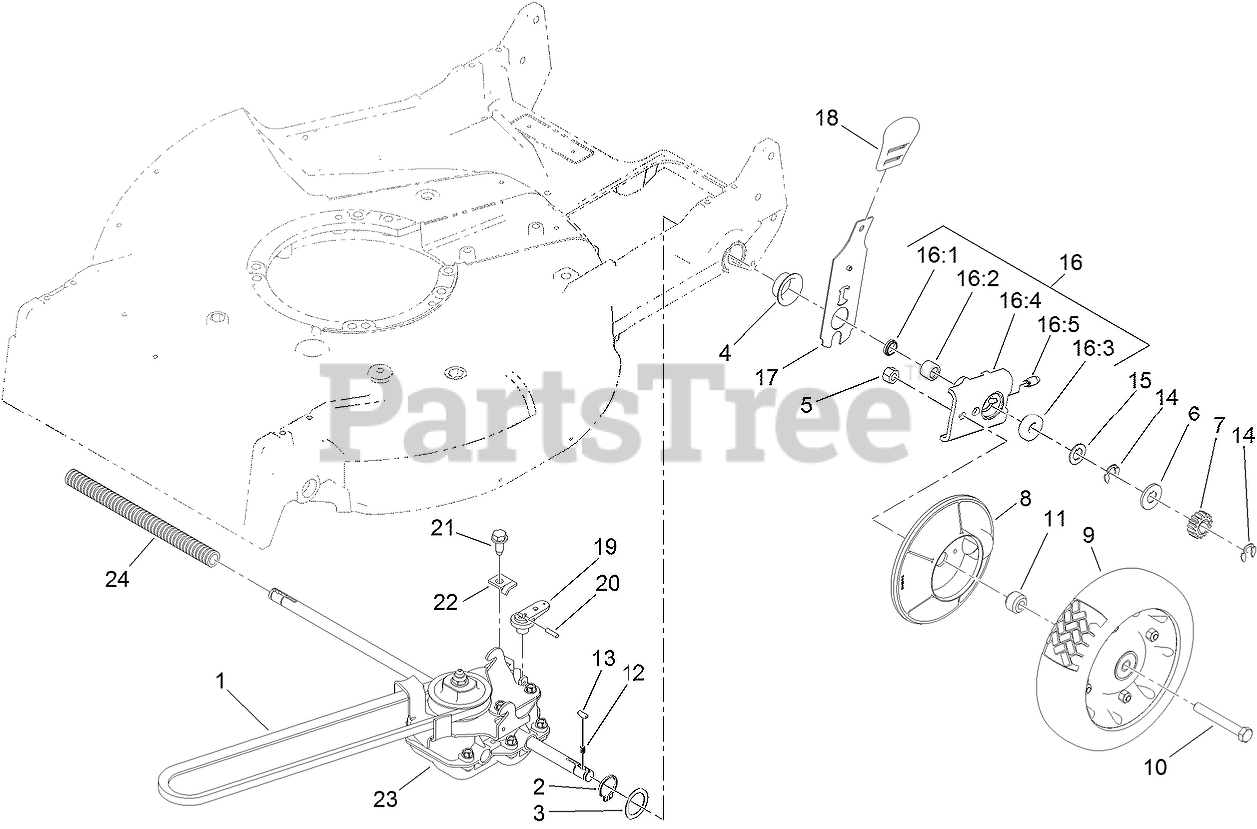

REAR DRIVE AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 36-8070

V-BELT

$15.99

$

In Stock, Qty 16

0

2

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

3

Toro 74-1810

WASHER

$0.99

$

In Stock, Qty 20+

0

4

Toro 48-2170

CAP-END

$11.99

$

In Stock, Qty 7

0

5

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, Qty 12

0

6

Toro 62-3830

WASHER-THRUST, OUTER

$3.99

$

In Stock, Qty 12

0

7

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 12

0

8

Toro 74-1640

COVER-WHEEL

$15.99

$

In Stock, Qty 6

0

9

Toro 121-1379

WHEEL AND TIRE ASM

$139.99

$

In Stock, only 4 left!

0

10

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 20+

0

11

Toro 74-1650

SPACER-COVER, WHEEL

$9.99

$

In Stock, only 3 left!

0

12

Toro 39-9650

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 20+

0

13

Toro 612066

KEY

$2.99

$

In Stock, Qty 20+

0

14

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

15

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 20+

0

16

Toro 74-1851

PIVOT ARM ASM

$101.99

$

In Stock, only 2 left!

0

16:1

Toro 47-6730

SEAL-OIL

$14.99

$

In Stock, Qty 20+

0

16:2

Toro 117-3500

BEARING-CAGED NEEDLE ROLLER

$5.49

$

In Stock, Qty 20+

0

16:3

Toro 52-2450

BEARING-WHEEL

$19.99

$

In Stock, Qty 20+

0

16:4

Arm-Pivot, Rear

Note: Not serviced separately

$

$

Not available

16:5

Toro 92-6316

ZERK

$1.99

$

In Stock, Qty 6

0

17

Toro 119-2324

REAR SPRING ARM ASM

$15.99

$

In Stock, Qty 10

0

18

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

19

Toro 29-9560

LEVER-SHIFT

$18.99

$

Usually ships in 3-6 days

0

20

Toro 32121-99

PIN-COIL

$1.49

$

In Stock, only 1 left!

0

21

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

22

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

23

Toro 74-1860

GEAR CASE ASM

$868.99

$

Usually ships in 3-6 days

0

24

Toro 121-1357

COVER-SHAFT, DRIVE

$5.99

$

Usually ships in 3-6 days

0
