22187 - Toro 21" Heavy-Duty Recycler Walk-Behind Mower (SN: 270000001 - 270999999) (2007) ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

21" Heavy-Duty Recycler Walk-Behind Mower

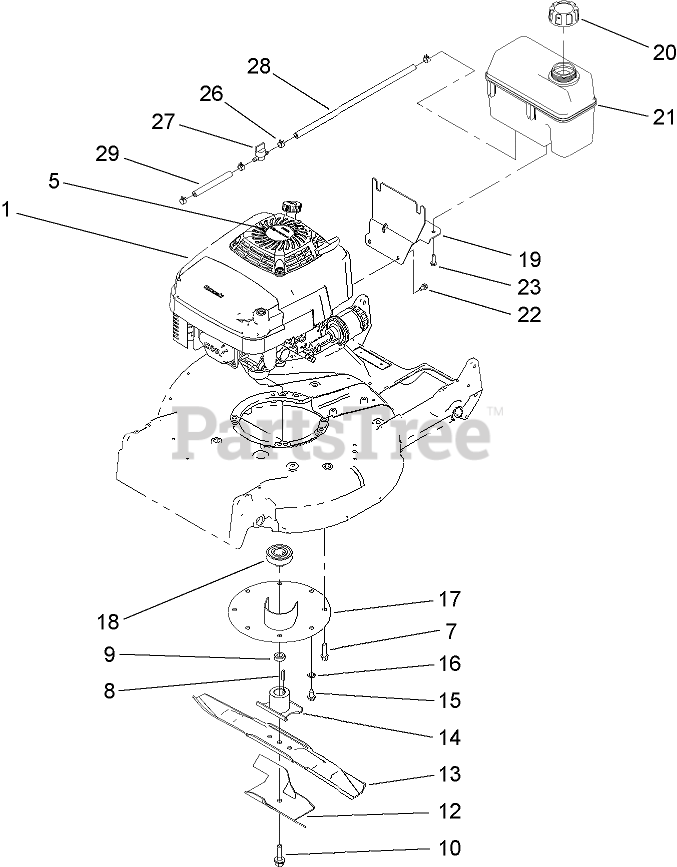

ENGINE AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-5047

ENGINE-KAWASAKI, FJ180V-AS31
(Superseded to 121-1404)

$

$

Not available

5

Toro 112-9974

DECAL-ENGINE, HONDA
(Superseded to 125-8405)

$7.99

$

In Stock, only 2 left!

0

7

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

8

Toro 5-1077

KEY-SQUARE

$6.99

$

In Stock, only 3 left!

0

9

Toro 103-3795

Spacer-Retainer, Blade

$7.99

$

In Stock, only 4 left!

0

10

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

12

Toro 92-1599-03

STIFFENER-BLADE

$79.99

$

Usually ships in 3-6 days

0

13

Toro 91-2256-03

BLADE-21 INCH

$36.99

$

In Stock, only 1 left!

0

14

Toro 52-2170-03

RETAINER-BLADE

$75.99

$

In Stock, only 1 left!

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 65-5860

PROTECTOR-CRANKSHAFT
(Superseded to 125-8370)

$104.99

$

Usually ships in 3-6 days

0

18

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

19

Toro 110-4950-03

TANK MOUNT ASM
(Superseded to 115-0954-03)

$43.99

$

In Stock, only 3 left!

0

20

Toro 93-7198

CAP-GAS

$15.99

$

In Stock, only 1 left!

0

21

Toro 106-0625

Tank-Fuel
(Superseded to 117-3510)

$94.99

$

In Stock, only 3 left!

0

22

Toro 104-2628

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

26

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

27

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

28

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

29

Toro 109-0650

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0
